Scion xD A/C Expansion Valve: A Guide for 2008-2014 Models
Is your Scion xD's air conditioning blowing warm? Your A/C expansion valve might be the problem.
- Before suspecting the expansion valve, check for a clogged A/C drain hose, a common issue on the Scion xD that causes water leaks in the cabin.
- Denso is the OEM-quality choice for replacement, offering the best fit and longest life.
- Replacing the expansion valve is not a simple DIY job; it requires specialized equipment to safely evacuate and recharge the A/C system.
- You must also replace the receiver/drier anytime the A/C system is opened to protect the new components and ensure proper function.
Is Your Scion xD A/C Expansion Valve Failing?
When the A/C expansion valve in your 2008-2014 Scion xD starts to fail, the symptoms are usually hard to ignore, especially on a hot day. Because this valve controls refrigerant flow, a problem can cause a range of issues. Being aware of the signs can help you diagnose the problem before other components, like the A/C compressor, are damaged.
Common Symptoms of a Bad Expansion Valve:
- Warm or Hot Air: The most common symptom is warm air blowing from the vents, even when the A/C is on full blast. This happens when the valve is stuck closed, restricting refrigerant flow.
- Inconsistent Cooling: The air temperature may fluctuate between cold and warm. This can happen if the valve is sticking intermittently.
- Frost on Vents: If the valve is stuck open, it can allow too much refrigerant into the evaporator. This can cause the evaporator to get too cold and even freeze, resulting in frost blowing from the vents or visible on the valve itself.
- A/C Compressor Always On: A valve that is stuck may cause the A/C compressor to run continuously, which can lead to premature wear and failure of the compressor.
- Pressure Gauge Readings: For a technician, a key sign of a clogged expansion valve is very low pressure on the low-pressure side (sometimes near zero) and normal or high pressure on the high-pressure side.
A Common Scion xD Issue: Clogged A/C Drain
Before you suspect the expansion valve, check your passenger-side floor for dampness. Many Scion xD owners report water leaking into the cabin. This is often caused by a clogged A/C evaporator drain hose, sometimes from insect nests. This can cause water to back up and lead to blower motor issues or a musty smell. Clearing this drain is a simple first step in troubleshooting A/C problems.
Choosing the Right Aftermarket Expansion Valve
Since Scion was a Toyota brand, the original parts are high quality. However, excellent aftermarket options are available that can offer great performance and value. Here’s a breakdown of the available brands.
Brand Tiers for Your Scion xD
- OEM Quality (Tier 1): Denso

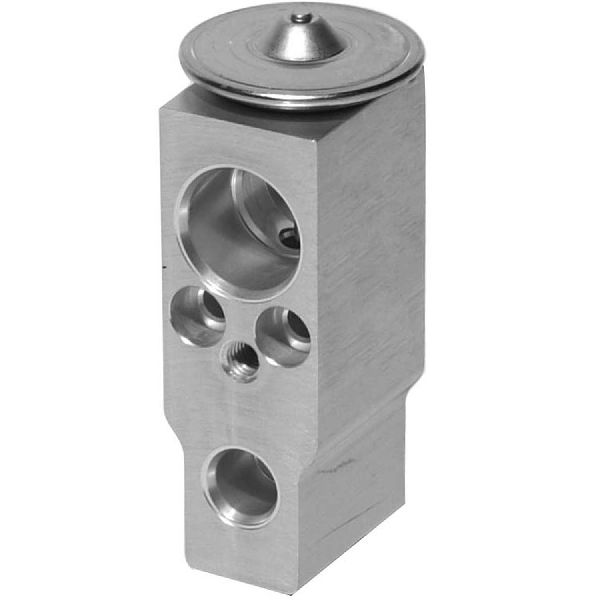

Denso was the original equipment manufacturer (OEM) for many Toyota and Scion parts, including A/C components. Choosing a Denso expansion valve is the closest you can get to buying the part from a Toyota dealership. It is known for excellent fit, quiet operation, and long-term durability, making it the top choice if you plan to keep your xD for a long time. - Standard Aftermarket (Tier 2): Four Seasons & Nissens

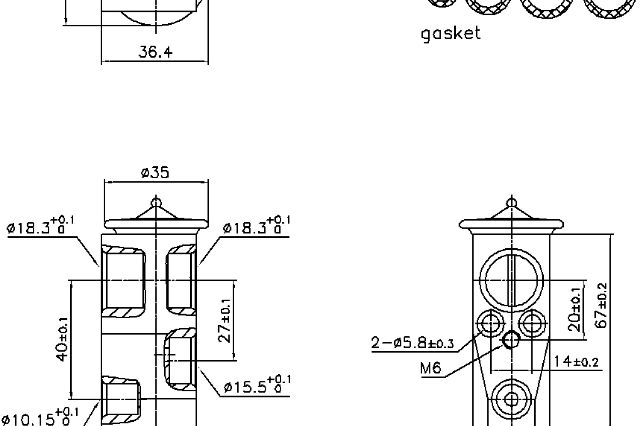

Four Seasons and Nissens are well-known aftermarket brands that produce a wide range of A/C components. They offer a good balance of quality and price. For a daily driver, these brands are a reliable choice. It's worth noting that in today's global supply chain, it's possible for these brands to source parts from the same manufacturers, and sometimes parts are re-boxed. - Economy (Tier 3): Global Parts Distributors (GPD)
GPD is another major aftermarket supplier offering parts at a very competitive price point. While they can be a budget-friendly option, some users have reported a higher failure rate compared to premium brands. This tier is best for those on a tight budget where cost is the primary concern.
Pro Tip: Replace the Receiver/Drier
Whenever you open the A/C system to replace a part like the expansion valve, you MUST replace the receiver/drier (also called an accumulator). This component absorbs moisture and filters debris from the refrigerant. A new, clean receiver/drier is essential for the longevity of your new expansion valve and A/C compressor. Failing to replace it can void the warranty on your new parts.
Cost to Replace a Scion xD A/C Expansion Valve
The cost can vary based on your location and whether you do the work yourself or use a professional shop. The job requires special tools to safely recover and recharge the A/C system.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Expansion Valve | $28 - $106 |
| Shop Labor & System Recharge | $150 - $300 |
| Total Professional Replacement | $178 - $406 |
Frequently Asked Questions
Can I replace the expansion valve myself?
While physically unbolting the old valve and installing the new one is straightforward, the job is not recommended for most DIYers. The A/C system is highly pressurized with refrigerant, which is hazardous and illegal to release into the atmosphere. The job requires a professional A/C recovery machine to evacuate the system before work begins and a vacuum pump and gauges to properly recharge it afterward. Failure to follow the correct procedure will result in a non-working A/C and can damage components.
Where is the expansion valve located on a 2008-2014 Scion xD?
The expansion valve is located on the vehicle's firewall, where the A/C lines enter the passenger compartment. Access is typically gained from inside the car by removing the glove box and possibly the blower motor assembly to get to the evaporator housing.
Is there a recall on the Scion xD A/C system?
No, there are no active recalls specifically for the A/C expansion valve or A/C system on the 2008-2014 Scion xD. There was a Technical Service Bulletin (TSB) related to the A/C drain hose getting clogged, but this is not a safety recall.
Should I replace the A/C compressor at the same time?
Not necessarily. If the expansion valve failed but the compressor is still working correctly, you typically only need to replace the valve and the receiver/drier. However, if the compressor failed and sent metal debris through the system (a "black death" failure), you must replace the compressor, condenser, expansion valve, and receiver/drier, and thoroughly flush the lines to prevent the new compressor from failing immediately.
Technical Specifications
Part Type: Block Type Expansion Valve
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
