A/C Receiver Drier & Desiccant Element Guide for the 2008-2016 BMW 528i
Keep your BMW's A/C blowing ice cold by understanding this critical, but often misunderstood, A/C system part.
- Crucially, the part is different for 2008-2010 (E60) and 2011-2016 (F10) models. Verify your year before ordering.
- Replacement is mandatory whenever the A/C system is opened for any repair to prevent moisture damage and validate warranties.
- This is not a DIY job as it requires specialized equipment to handle refrigerant legally and safely.
- For 2011-2016 F10 models, replacing the entire condenser assembly is often a more reliable repair than just the internal desiccant bag.
Crucial Differences: E60 vs. F10 Chassis
The 2008-2016 BMW 528i spans two different vehicle generations, and the A/C drier is completely different between them. Ordering the correct part is the most common mistake owners make.

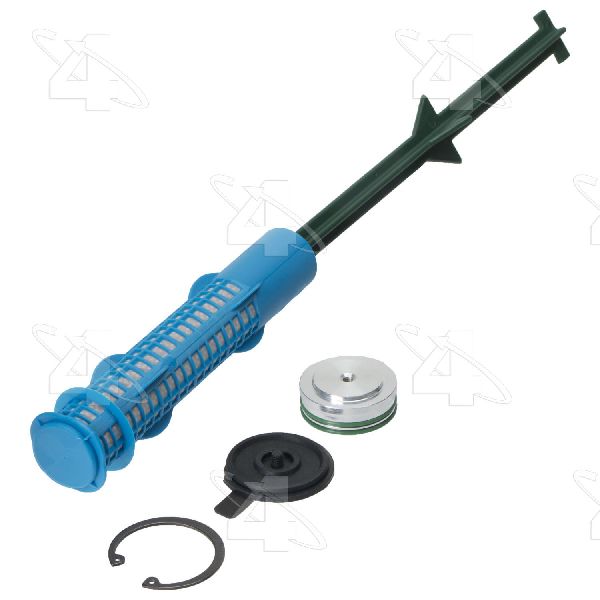

- For 2008-2010 BMW 528i (E60 Chassis): Your car uses a traditional, separate A/C receiver drier. This is a metal canister that is attached to or near the A/C condenser. It is a distinct part that can be replaced on its own.
- For 2011-2016 BMW 528i (F10 Chassis): Your car does not have a separate drier canister. Instead, it uses a desiccant bag that is integrated into the A/C condenser itself. To replace it, you either buy a 'desiccant bag kit' which includes the bag and a new plug, or you replace the entire condenser assembly which comes with a new bag already inside.
Check Your Year Before You Buy
A 2010 E60 drier will not work on a 2011 F10, and vice-versa. Double-check your vehicle's model year to ensure you are purchasing the correct component for your specific chassis.
Symptoms of a Failing A/C Drier
A drier doesn't usually fail on its own but becomes saturated with moisture when there's a leak or when the system is opened. Symptoms of a saturated or clogged drier include:
- Poor A/C Cooling: The most common symptom is that your A/C doesn't blow as cold as it used to. This can happen if the drier is clogged and restricting refrigerant flow.
- A/C Not Working After a Repair: If another A/C part was replaced but the drier was not, the leftover moisture can quickly cause the system to perform poorly or fail again.
- Foggy Windows: A moisture-filled A/C system can sometimes struggle to defog windows effectively.
- Moldy Smell: In some cases, excess moisture in the system can lead to a moldy or mildew smell from the vents.
Choosing the Right Aftermarket Drier
For a part that must be replaced anytime the system is serviced, aftermarket options provide excellent value. The original equipment (OEM) manufacturer for BMW is typically Behr or Mahle.
- Good Tier (Aftermarket): Brands like Four Seasons and Global Parts Distributors (GPD) are well-known aftermarket manufacturers that produce reliable A/C components. They are designed to meet original specifications and are a cost-effective choice for this mandatory replacement part. Given that this part has a finite life once exposed to air, these brands offer a smart balance of quality and price.
- Better Tier (OEM Supplier): Brands like Behr, Mahle, and Nissens are often the original suppliers to BMW. They offer a direct-fit, factory-quality replacement, though at a higher price point.
Pro Tip: Replace the Whole Condenser on F10 Models
For 2011-2016 (F10) models, many mechanics recommend replacing the entire condenser/drier assembly rather than just the desiccant bag. The plug for the desiccant bag can be extremely difficult to remove from the old condenser without causing damage. Furthermore, the condenser itself is a common source of leaks on the F10 chassis, so replacing the whole unit is often a more reliable and time-saving repair.
Associated Repair Costs
The A/C receiver drier or desiccant bag is a low-cost part, but the labor to replace it is the main expense. This is because the job requires specialized equipment to safely recover the old refrigerant and recharge the system after the new part is installed.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Drier/Desiccant Kit | $18 - $33 |
| New OEM Drier/Desiccant Kit | $40 - $200 |
| Shop Labor (Evacuate & Recharge) | $150 - $300+ |
| Total Professional Replacement | $250 - $500+ |
Frequently Asked Questions (FAQ)
Do I have to replace the receiver drier?
Yes. It is mandatory to replace the receiver drier or desiccant bag any time the A/C system is opened to the atmosphere (e.g., replacing a compressor or hose). The old drier is saturated with moisture and will not protect your new parts. Most A/C compressor warranties are void if the drier is not replaced at the same time.
Can I replace the A/C drier myself?
This is not recommended for a DIYer. The job requires EPA-certified equipment to legally and safely evacuate the refrigerant from the system before you start work. After the part is installed, the system must be put under a vacuum to boil off any remaining moisture and then recharged with the precise amount of refrigerant and oil. Failure to do this correctly will lead to poor performance and can damage components.
Are there any recalls for the A/C drier on my 528i?
No. There are no recalls for the A/C receiver drier on the 2008-2016 BMW 528i. Recalls you may see online for A/C wiring harnesses apply to much newer BMW models (2023 and later) and are not relevant to the E60 or F10 chassis.
My A/C is slow to get cold. Is it the drier?
While possible, on the E60 (2008-2010) 528i, a common cause for a slow-to-cool A/C system is a weakening A/C compressor, not the drier. On the F10 (2011-2016), the issue is often a slow refrigerant leak, frequently from the condenser itself. In either case, a professional diagnosis with manifold gauges is needed to pinpoint the cause.
Technical Specifications
OEM Part Numbers: 64536907402 64509202689 64539228332 64536805452 64539350375 64539219843
The key difference is the form factor. 2008-2010 E60 models use a separate canister-style receiver drier. 2011-2016 F10 models use a desiccant bag that fits inside the A/C condenser.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
