A Mechanic's Guide to the 2008-2016 BMW 528i Engine Oil Cooler
Understanding the common leaks and failures of your 528i's engine oil cooler can save you from catastrophic engine damage.
- The primary point of failure is almost always the rubber gaskets, not the metal oil cooler itself.
- An oil leak from this area is critical because dripping oil can destroy the serpentine belt, potentially leading to catastrophic engine failure.
- When performing the repair, always replace both gaskets, the single-use aluminum bolts, and inspect the serpentine belt for oil contamination.
- Mahle is an OEM-quality brand for this part, while Nissens and Vemo offer reliable, cost-effective aftermarket alternatives.
Is it the Oil Cooler or Just the Gaskets?
For most 2008-2016 BMW 528i owners, an oil leak near the oil filter housing is not a failure of the metal oil cooler itself. The problem is almost always the two rubber gaskets that seal the assembly. There is one gasket between the oil cooler and the oil filter housing, and another between the oil filter housing and the engine block. Over time, constant exposure to engine heat causes these gaskets to become hard, brittle, and flat, losing their ability to seal properly. This allows pressurized engine oil to leak out.
A Critical Leak You Can't Ignore
An oil leak from the filter housing is extremely dangerous for these engines. The housing is located directly above the serpentine belt. Dripping oil will soak the belt, causing the rubber to soften, degrade, and eventually slip off or shred. If the belt breaks or gets pulled into the main crank seal, it can cause catastrophic engine failure. For this reason, any oil leak in this area should be addressed immediately.
Symptoms of a Failing Oil Cooler or Gasket
The signs of a bad oil cooler gasket are usually obvious. Here’s what to look for:
- Oil Leaks: This is the most common symptom. You will see oil on the driver's side of the engine, coating the oil filter housing, the alternator below it, and dripping onto the splash shield or the ground.
- Burning Oil Smell: When oil drips onto hot engine parts like the exhaust manifold, it creates a strong burning smell that you may notice inside or outside the car.
- Engine Overheating: While less common than an external leak, a complete failure of the cooler or an internal gasket failure can cause oil and coolant to mix. This reduces the cooling system's efficiency and can lead to the engine overheating.
- Low Oil Level Warning: A significant leak will cause your oil level to drop, triggering the oil level or oil pressure warning light on your dashboard.
Choosing the Right Aftermarket Oil Cooler
If the cooler itself is damaged or you choose to replace the entire assembly, you have several aftermarket options. Here’s a breakdown of the available brands:

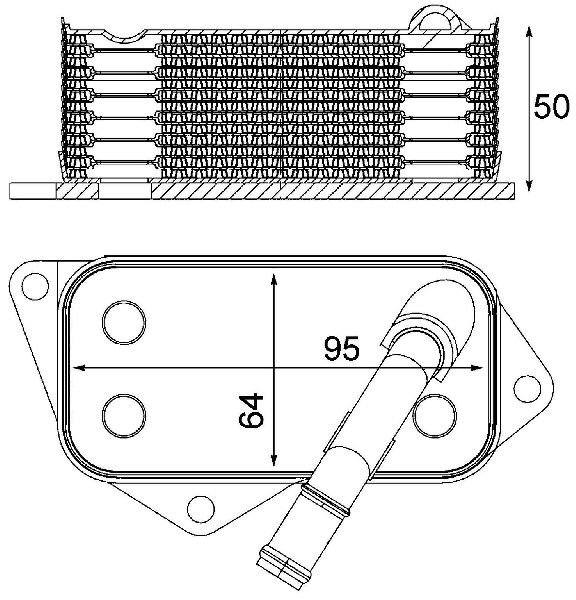

- OEM-Quality (Top Tier): Mahle is a well-known Original Equipment Manufacturer (OEM) for BMW. Choosing a Mahle oil cooler is the closest you can get to buying the part from a BMW dealer, ensuring excellent fit and long-term reliability.

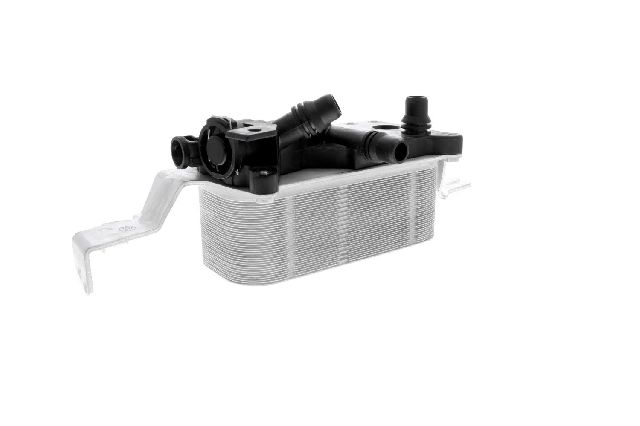

- Reputable Aftermarket (Mid Tier): Brands like Nissens and Vemo offer a good balance of quality and price. They are respected in the industry for their cooling system components and provide a reliable alternative to more expensive OEM parts. Vaico (a Vemo brand) is also noted as a good quality replacement.
- Budget-Friendly (Economy Tier): URO Parts is a budget-friendly option. While functional, it's wise to inspect the part carefully before installation and check recent owner reviews for feedback on longevity.
- Performance/Universal: Derale is known for performance and universal cooling products. Ensure you are buying a direct-fit model for your 528i, as some of their products may require modification to install.
Pro Tip: Always Replace Gaskets and Bolts
Regardless of whether you replace the entire cooler or just the gaskets, it is critical to use new gaskets for the oil cooler-to-housing and housing-to-block connections. It is also highly recommended to replace the aluminum mounting bolts, as they are single-use stretch bolts and should not be reused.
Cost of Replacing a BMW 528i Engine Oil Cooler
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $72 - $337 |
| Shop Labor | $300 - $700 |
| Total Estimated Cost | $372 - $1,037 |
Frequently Asked Questions
Do I need to replace the whole oil cooler or just the gaskets?
In over 95% of cases, only the rubber gaskets have failed. You only need to replace the entire oil cooler if the metal body is cracked or damaged, which is very rare.
What other parts should I replace at the same time?
When replacing the oil cooler gaskets, you should also replace the single-use aluminum mounting bolts. Because oil from the leak often contaminates the serpentine belt, it is highly recommended to replace the belt, tensioner, and any idler pulleys as a preventive measure. Also, plan for an oil and filter change, as the system will be drained.
Is there a recall on the engine oil cooler for the 2008-2016 528i?
There are no specific recalls for the oil cooler or its gaskets on the 2008-2016 BMW 528i. There was a recall (NHTSA 17V-240) for oil cooler *lines* on some other BMW models, but it did not broadly apply to the 528i. Always check your specific VIN with the NHTSA for any open campaigns.
How do I know if my 528i has an engine oil cooler?
Most 528i models within this year range, especially those with the N52 engine (2008-2011) and N20 engine (2012-2016), are equipped with an engine oil cooler as part of the oil filter housing. Some base models or specific configurations might not have one, though it is less common. A visual inspection of the oil filter housing will confirm its presence.
Technical Specifications
OEM Part Numbers: 11427525333 17217638582 17217638581 11537581872
The engine oil cooler for the 2008-2016 BMW 528i is a liquid-to-liquid heat exchanger integrated with the oil filter housing. It uses engine coolant to regulate oil temperature. The assembly is mounted to the engine block on the driver's side. The 2008-2011 models typically use the N52 engine, while 2012-2016 models use the N20 engine, which may have slight variations in the housing design but share the same fundamental leak-prone gasket issue.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
