Chevrolet Express 2500 (2008-2016) Engine Crankshaft Position Sensor Guide
Fixing stalling and no-start issues in your Chevy Express van starts with understanding this critical sensor.
- A failing sensor often causes stalling when hot or a no-start condition.
- For reliability, choose an OEM/OE brand like ACDelco or Delphi for this critical part.
- The sensor is located behind the starter motor, which must be removed for access.
- A 'crank relearn' procedure with a scan tool is highly recommended after replacement to avoid issues.
Is Your Express Van Stalling or Refusing to Start?
A failing crankshaft position sensor is a common reason for a Chevrolet Express 2500 to suddenly stall, especially when the engine is hot, or refuse to start altogether. 🎬 Watch this video to diagnose a no-start condition on your Express. This sensor provides the engine's computer with the most basic information it needs to run: is the engine turning, and how fast? When this signal becomes weak, erratic, or disappears, the computer gets confused, leading to significant drivability problems.
Critical Part Warning
Because this sensor is essential for engine operation, a complete failure will leave you stranded. Intermittent stalling, especially in traffic, is a serious safety concern. It is not recommended to continue driving with symptoms of a failing crankshaft position sensor.
Choosing the Right Aftermarket Crankshaft Sensor
When it comes to critical electronic sensors for your Express van, not all brands are created equal. For a part that can leave you on the side of the road, quality matters more than a few dollars saved.
- Tier 1 (Recommended): ACDelco & Delphi
ACDelco is the original GM parts brand, and choosing their GM Original Equipment line is the closest you can get to the part your van was built with. Delphi is a major original equipment (OE) manufacturer for GM and other automakers, and their sensors are known for reliability and proper function. For a work van that needs to be dependable, sticking with these two brands is your best bet. - Tier 2 (Good Quality Aftermarket): Standard Ignition (SMP), NGK/NTK, Hitachi
These brands have a strong reputation in the aftermarket for producing reliable sensors. Standard Motor Products (SMP), in particular, is a long-standing company that often manufactures parts to high standards. If an OE part isn't available or is out of budget, these are solid alternatives. - Tier 3 (Budget/Economy): Dorman, Walker, and other value brands
While brands like Dorman offer a wide range of parts at attractive prices, their quality on electronic sensors can be inconsistent. You might get a part that works fine, or you might get one that's dead out of the box or fails prematurely. For a critical sensor like the crankshaft position sensor, using a budget brand is a gamble that could lead to more headaches and another repair job down the line.
Pro Tip: The Crank Relearn Procedure
After replacing the crankshaft position sensor on these GM vehicles, a "crankshaft variation relearn" procedure is often required. This procedure uses a professional scan tool to calibrate the new sensor with the engine computer. If you don't perform the relearn, you may still have a check engine light, rough running, or misfires even with the new part. Plan to have a shop perform this procedure after you install the sensor if you don't have the proper tool.
🎬 Watch how to perform the crankshaft relearn procedure using a scan tool.Installation & Location
On the V8 engines common in the 2008-2016 Express 2500 (4.8L, 5.3L, 6.0L), the crankshaft position sensor is located on the lower part of the engine block, on the passenger side. Access is tight, and you will need to remove the starter motor to get to it. The sensor is held in by a single 10mm bolt.
🎬 See this step-by-step walkthrough for replacing the sensor on GM V8s.| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $32 - $66 |
| New OEM Part (ACDelco) | $64 - $113 |
| Shop Labor | $117 - $172 |
| Total Professional Replacement | $182 - $285 |
Frequently Asked Questions (FAQ)
Can I still drive my Express van with a bad crank sensor?
It is strongly discouraged. While the van may still run intermittently, the risk of the engine stalling suddenly and without warning is high. This can be very dangerous, especially at high speeds or in heavy traffic. If the sensor fails completely, the engine will not start, leaving you stranded.
Where is the crankshaft position sensor located?
On the 2008-2016 Express 2500 with a V8 engine, the sensor is on the passenger side of the engine block, near the rear. You must remove the starter motor to access it.
Are there any recalls for this part?
No, there are no specific recalls or technical service bulletins (TSBs) from GM for the crankshaft position sensor on this vehicle range. Searches of the NHTSA database found recalls for other components but none related to this specific sensor failure.
Why is a 'crank relearn' necessary after replacement?
The relearn procedure calibrates the new sensor to the minor imperfections of your specific engine's crankshaft reluctor wheel. This ensures the computer gets a perfectly timed signal. Without it, the computer might misinterpret the new sensor's data, leading to a check engine light (P0336) or performance issues.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12596851 10456042 213-354 213-970

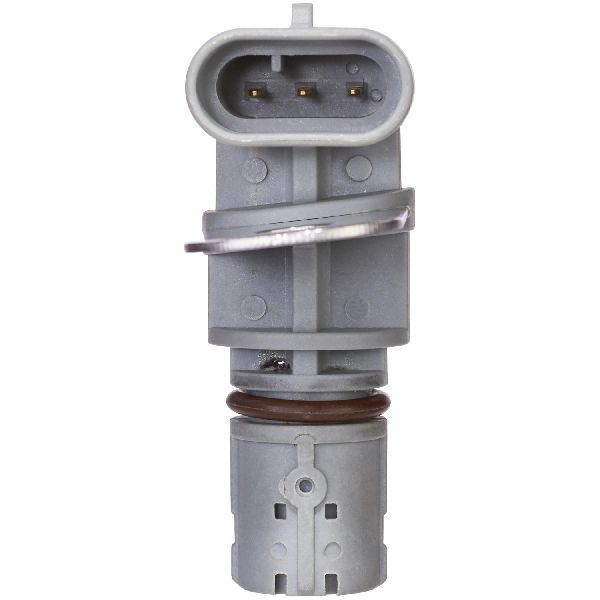

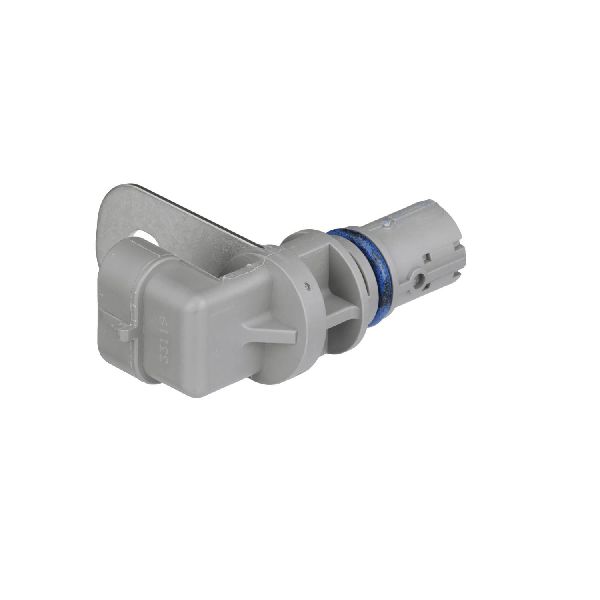

This is a Hall Effect sensor that reads the teeth on the crankshaft reluctor wheel to generate a digital square-wave signal for the ECM.
