Dodge Dart Alternator Guide (2013-2016): Symptoms, Brands, and Replacement
Having electrical problems with your 2013-2016 Dodge Dart? It might be your alternator.
- The modern Dodge Dart was only made from 2013-2016.
- You must match your new alternator's amperage (120A or 140A) to the original part.
- Before replacing the alternator, check the 200A mega fuse on the battery and test the battery voltage.
- Replacement on the 2.4L engine is tight and may require removing an engine mount for access.
A Note on Vehicle Years
This article covers the modern Dodge Dart, which was produced for model years 2013, 2014, 2015, and 2016. The user prompt's mention of 2008-2012 is incorrect for this vehicle, as that range applies to a different era of classic cars.
Is it the Alternator or the Battery?
The signs of a bad alternator and a dead battery can look very similar. Before you spend money on parts, you can do a simple test with a multimeter. With the engine off, a healthy battery should show a reading of about 12.6 volts. After starting the engine, the voltage should jump to between 14.0 and 14.5 volts as the alternator charges the battery. If the voltage stays down near 12 volts or drops while the engine is running, your alternator is likely the problem.
Before blaming the alternator, check the large 200-amp 'mega fuse' located on the positive battery terminal's fuse block. 🎬 Watch this guide to locate and replace the alternator fuse. Also, many Dart owners report that bad engine or body ground wires can cause similar 'electrical gremlins,' so it's worth cleaning and checking those connections.
🎬 See how to fix electrical gremlins with a ground upgrade.Choosing the Right Aftermarket Alternator
When replacing your Dart's alternator, you must match the amperage of the original part. Most Darts with the 2.0L and 2.4L engines came with either a 120-amp or a 140-amp alternator. Higher trim levels often used the 140-amp version. Using the wrong amperage can lead to charging problems. Always check your original part for its part number or amperage rating before ordering.
Brand Tiers for Your Dodge Dart
- OEM-Quality (Denso): Denso is a well-regarded brand, often supplying original parts for many automakers. While not explicitly listed as the OEM for the Dart, their quality is generally considered top-tier and a reliable choice for a new aftermarket part.

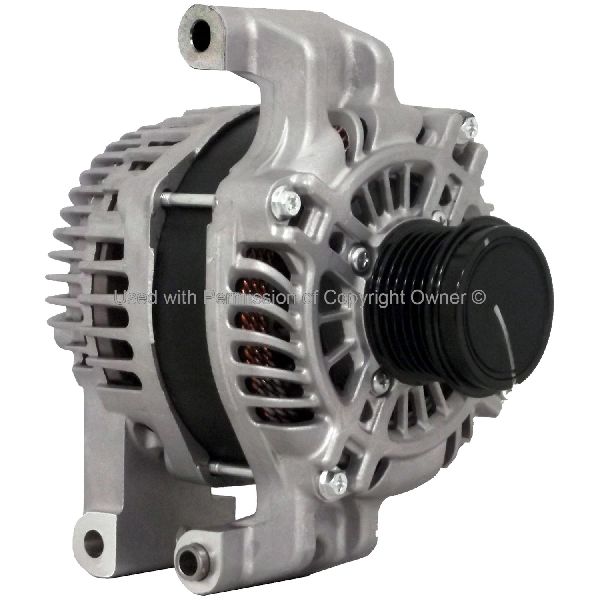

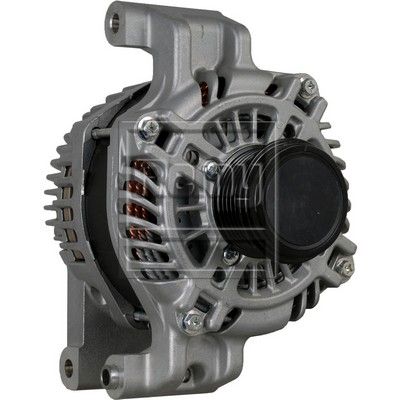

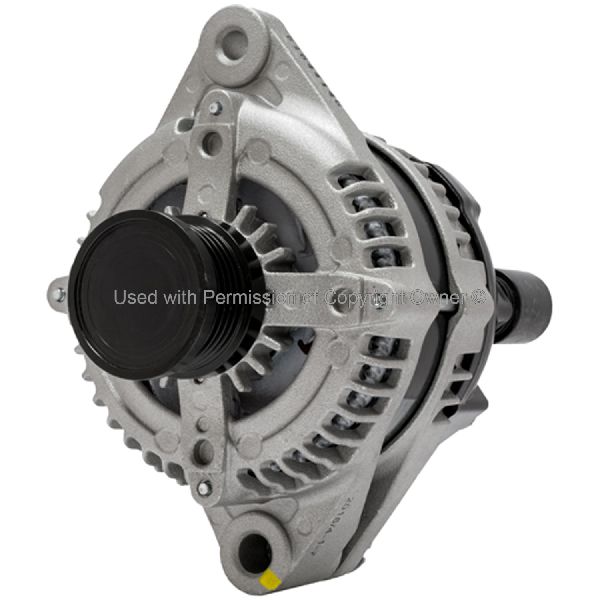

- Reputable Aftermarket (Remy, MPA): Remy is a long-standing name in rotating electrical parts, though it is now owned by BBB Industries. Motorcar Parts of America (MPA) produces Quality-Built alternators, which are another common sight in the aftermarket and are tested to meet original specifications. These brands offer a good balance of price and quality.

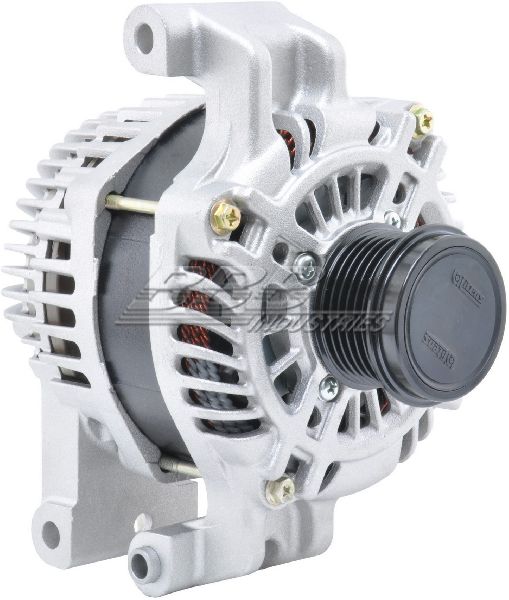

- Value-Oriented (BBB Industries): BBB Industries is a major remanufacturer and also sells new parts. While they are a large supplier for many parts stores, some user reviews point to inconsistent quality. They can be a budget-friendly option, but the risk of premature failure may be higher compared to premium brands.
Cost of Replacing a Dodge Dart Alternator
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $214 - $340 |
| New OEM (Mopar) | $485 - $851 |
| Remanufactured OEM (Mopar) | $200 - $243 |
| Shop Labor | $256 - $376 |
Known Issues, Recalls, and TSBs
There are no specific recalls from the National Highway Traffic Safety Administration (NHTSA) for the alternator on the 2013-2016 Dodge Dart. However, the vehicle has had numerous Technical Service Bulletins (TSBs) for software updates to the Powertrain Control Module (PCM) to fix various drivability issues. There is also a significant recall for the transmission shifter cable bushing, which could fail and cause a rollaway risk.
Frequently Asked Questions (FAQ)
What engine do I have in my Dodge Dart?
The 2013-2016 Dart was available with three main engines: a 1.4L Turbo, a 2.0L Tigershark, and a 2.4L Tigershark MultiAir. The alternator replacement procedure and part compatibility can vary between these engines, so it's important to know which one you have.
Is replacing the alternator a DIY job?
For the 2.0L and 2.4L engines, the job is moderately difficult but feasible for a DIY mechanic. It requires removing the passenger wheel, splash shield, and serpentine belt. On the 2.4L engine, space is very tight, and it is often necessary to support the engine and remove the upper engine mount to get enough clearance to remove the alternator. 🎬 Follow this step-by-step video for 2.4L alternator removal and replacement. The 1.4L Turbo engine has a much more involved replacement process that may require removing the CV axle and part of the subframe.
Do I need to replace the serpentine belt at the same time?
Yes, it is highly recommended. Since you already have to remove the serpentine belt to get to the alternator, it is the perfect time to replace the belt and the belt tensioner. This can save you from having to do the same labor again in the near future.
What are the OEM part numbers for the Dodge Dart alternator?
Part numbers can vary by amperage and engine. For the 140-amp version, common Mopar part numbers include 56029580AA, 56029580AB, and 56029580AC. For the 2.0L engine, you might see 56029656AA or the remanufactured number R6029656AB. Always verify the correct part for your specific vehicle's VIN.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56029580AA 56029580AB 56029580AC 56029656AA R6029656AB

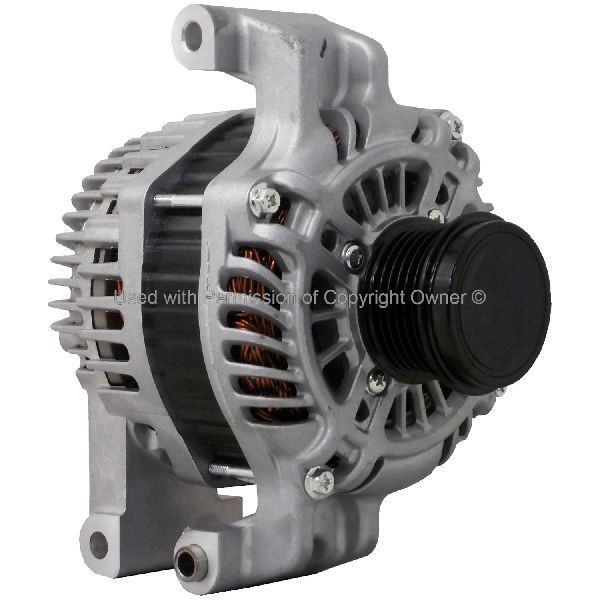

Available in 120 amp and 140 amp outputs. Uses a 6-groove serpentine belt with a clutch pulley.
