Dodge Dart Back Up Light Switch Guide for 2013-2016 Models
Having trouble with your reverse lights? This guide covers the common issues and solutions for your Dart.
- The modern Dodge Dart was only produced for model years 2013-2016.
- Before replacing the switch, always inspect the trunk wiring harness for broken wires, a very common cause of reverse light failure on this car.
- For manual transmissions, it's a simple switch; for automatics, it's part of the more complex Transmission Range Sensor.
- Quality aftermarket brands like Standard Ignition and Facet are reliable and cost-effective alternatives to the OEM part for this specific component.
Is Your Dodge Dart's Back Up Light Switch Failing?
If your reverse lights aren't working on your 2013-2016 Dodge Dart, the back up light switch is a likely suspect, but it's not the only possibility. This problem is common enough that many owners have dealt with it. Before you replace the switch, it's important to understand the symptoms and check for other common issues first.
A Common Wiring Problem to Check First

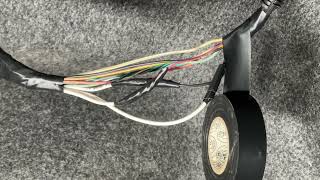

Many Dodge Dart owners report that reverse light failures are often caused by broken wires in the trunk wiring harness. 🎬 Watch how to fix broken wires in the trunk harness. This harness flexes every time you open and close the trunk, and over time the wires can break. Before buying a new switch, pull back the protective covering on the wiring harness that runs to the trunk lid and inspect the wires for breaks or damage. This is a very common failure point that can also affect your trunk light and "racetrack" taillights.
Symptoms of a Bad Back Up Light Switch
When the switch itself fails, you'll notice clear symptoms. The most obvious sign is that your reverse lights do not turn on at all when you shift into reverse. You might also see a "Reverse Light Out" warning message on your dashboard. Other symptoms can include:
- Reverse lights that stay on all the time.
- Backup camera not activating.
- Intermittent operation where the lights sometimes work and sometimes don't.
- For automatic transmission models, a faulty switch (also called a transmission range sensor) can sometimes cause starting issues or error codes like P0705 or P0706. 🎬 Learn how to replace a faulty transmission range sensor.
Choosing the Right Aftermarket Back Up Light Switch
When replacing the back up light switch, you have options besides the original equipment manufacturer (OEM) part from Mopar. Aftermarket parts from brands like Facet and Standard Ignition (also known as Standard Motor Products or SMP) offer a cost-effective alternative.
Standard Ignition (SMP):
Standard is a well-known and trusted brand in the aftermarket industry, with a history of producing reliable electronic components. Their switches are designed as direct-fit replacements and often feature copper alloy conductors for good electrical performance. For a part like a back up light switch, Standard Ignition is generally considered a reliable, professional-grade choice.

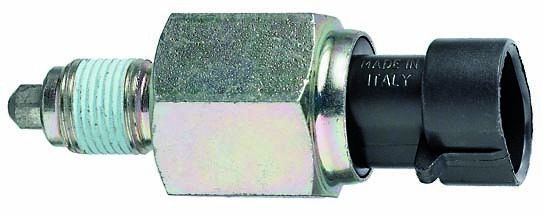

Facet:
Facet is an Italian brand that has been producing automotive parts for many years. While perhaps less known in the US than Standard, they are a legitimate manufacturer of sensors and switches. User reviews are generally positive, with many considering them a good-quality alternative to more expensive OEM parts. For a simple switch, a Facet part is a viable budget-friendly option.
OEM vs. Aftermarket Quality
For a straightforward part like the back up light switch, a high-quality aftermarket brand such as Standard Ignition or Facet is a perfectly acceptable and more affordable choice than the OEM Mopar part. The function of the switch is simple, and these brands produce reliable replacements that meet or exceed the necessary specifications. The primary cause of reverse light failure on the Dart is often the wiring, not the switch itself, so spending extra on an OEM switch may not be necessary.
Estimated Costs for Replacement
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mopar) | $50 - $90 |
| New Aftermarket (Facet, Standard) | $33.62 - $129.80 |
| Shop Labor | $90 - $150 |
Frequently Asked Questions (FAQ)
Where is the back up light switch located on a 2013-2016 Dodge Dart?
The back up light switch is located on the transmission. For manual transmission models, it is typically screwed into the side of the transmission case. For automatic models, it is part of the larger transmission range sensor (also called a neutral safety switch) mounted on the transmission.
Are there any recalls for the Dodge Dart back up light switch?
There are no specific recalls for the back up light switch itself. However, there is a major recall for the shifter cable bushing on 2013-2016 Darts with automatic transmissions (NHTSA Campaign 25V674). While this doesn't directly involve the switch, a faulty shifter mechanism can affect how the car determines its gear, which is related to the switch's function.
Why are my reverse lights not working but the bulbs and fuse are good? 🎬 See a diagnostic walkthrough for Dart reverse light issues.
If you have checked the bulbs and fuses, the most common cause on a Dodge Dart is broken wires in the trunk wiring harness. The constant flexing from opening and closing the trunk can cause the wires to break over time. If the wiring is intact, the back up light switch on the transmission is the next most likely culprit.
Can I replace the Dodge Dart back up light switch myself?
Yes, this is a feasible DIY job for someone with basic mechanical skills. The switch is usually accessible by lifting the front of the vehicle and is located on the transmission. It typically involves disconnecting the electrical connector, unscrewing the old switch, and installing the new one. For automatic models, replacing the entire range sensor may be slightly more complex and require adjustment.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68164262AA 68110115AA
Typically a 2 or 3-pin screw-in switch located on the transmission housing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
