Volvo XC70 A/C Receiver Drier & Desiccant Element Guide (2008-2016)
Understand this critical A/C part to prevent costly compressor failure in your XC70.
- The receiver drier MUST be replaced any time the A/C system is opened for service to protect new components and validate warranties.
- Replacement requires special equipment to recover and recharge refrigerant; this is not a simple DIY job.
- Failure to replace a bad drier can lead to moisture contamination, corrosion, and catastrophic A/C compressor failure.
- On the XC70, this part is often a serviceable desiccant cartridge located on the side of the A/C condenser.
Symptoms of a Failing A/C Receiver Drier
A bad receiver drier in your XC70 can cause several noticeable problems. If you experience any of these, it's time to have your A/C system checked.
- Poor Cooling Performance: This is the most common symptom. A clogged or saturated drier restricts refrigerant flow, so your vents blow air that isn't as cold as it should be.
- Foggy Windows You Can't Defrost: If the drier can't remove moisture from the system, that moisture can end up back in the cabin, making your windows fog up easily.
- Moldy or Musty Smell: When the desiccant is saturated and can't absorb any more water, it can lead to mold or mildew growth inside the A/C system, causing a bad smell from the vents.
- Rattling Noises: If the desiccant bag inside the drier breaks apart, you might hear rattling sounds from the engine bay when the A/C is on. This is serious, as the loose desiccant can travel through the system and cause a major blockage.
A Critical Replacement Rule
The A/C receiver drier or desiccant element must be replaced any time the A/C system is opened for service. This includes replacing a compressor, condenser, or hose. Once exposed to outside air, the desiccant becomes saturated with moisture in a very short time, making it useless. Most A/C compressor warranties are void if the drier is not replaced at the same time.
Choosing the Right Aftermarket Part for Your XC70
For the 2008-2016 Volvo XC70, the A/C desiccant is often a serviceable cartridge that fits into the side of the A/C condenser. Instead of replacing the entire condenser assembly, you can often just replace this desiccant element insert. 🎬 Watch: How to replace a desiccant element or condenser However, many aftermarket condensers are sold as a complete assembly with the drier already included. When shopping for a replacement, you'll find reliable aftermarket options that offer a good balance of quality and price.
Brand Tiers

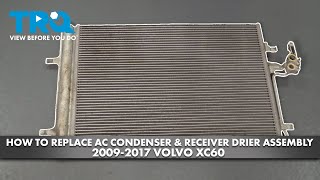

- Standard Aftermarket (Four Seasons, Global Parts): Brands like Four Seasons and Global Parts Distributors (GPD) are well-known suppliers in the A/C parts industry. They produce parts in ISO-certified facilities and provide a direct-fit replacement for the original. 🎬 See this walkthrough for replacing the condenser and drier assembly These are solid, cost-effective choices for a standard repair. Some owner feedback suggests Four Seasons may have a slight edge in reliability over other value-focused brands.
- OEM (Original Equipment Manufacturer): The Genuine Volvo part is the highest quality and price. For the XC70, the OEM part number for the desiccant insert is 30776238. While aftermarket options are sufficient, the OEM part guarantees a perfect fit and original material quality.
Pro Tip: When replacing the desiccant insert, it's a good idea to also replace the plastic plug and O-ring that seal it. This prevents future leaks from an old, brittle seal.
Cost of Replacing the A/C Receiver Drier
The total cost depends on whether you are replacing just the desiccant insert or the entire condenser assembly, and who does the work.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Drier/Desiccant | $21 - $38 |
| New OEM Drier/Desiccant | $70 - $97 |
| Shop Labor (including system evacuation & recharge) | $285 - $418 |
| Total Professional Replacement | $443 - $639 |
Frequently Asked Questions (FAQ)
Can I replace the A/C receiver drier myself?
While physically replacing the part is possible for an experienced DIYer, it is not recommended for beginners. The A/C system is under high pressure and contains refrigerant that must be legally and safely recovered by a professional with specialized equipment before the system is opened. After installation, the system must be put under a vacuum to remove air and moisture before being recharged with the precise amount of refrigerant. Failure to do this correctly will cause the A/C to perform poorly and can damage components.
Where is the receiver drier located on a 2008-2016 Volvo XC70?
The receiver drier/desiccant element is located in a cylinder attached to the side of the A/C condenser. The condenser is in front of the radiator at the very front of the car. Access typically requires removing the front bumper cover and passenger-side headlight assembly.
🎬 Watch: Step-by-step guide to removing the front bumperWhat happens if I don't replace a bad receiver drier?
Ignoring a failed receiver drier will lead to more expensive problems. Saturated desiccant can break down and send debris through the A/C lines, clogging the expansion valve and starving the compressor of oil. Moisture in the system will cause corrosion and can lead to a catastrophic failure of the A/C compressor, a much more expensive part to replace.
Are there any recalls for the A/C system on the XC70?
There are no specific recalls for the A/C receiver drier on the 2008-2016 Volvo XC70. However, there was a recall for some 2016-2017 Volvo models (including some 2016 XC90s, but not specifically the XC70 of that year) for an improperly installed A/C drain hose that could leak water into the cabin and affect electrical systems. There are also Technical Service Bulletins (TSBs) related to poor A/C cooling performance that instruct technicians to check for leaks, blockages, and proper pressures.
Helpful Videos
Technical Specifications
OEM Part Numbers: 30776238 31369735 31686234
This part is a desiccant element insert that fits into the A/C condenser. It is not a standalone canister on this vehicle.
