A Mechanic's Guide to the 2008-2016 Volvo XC70 Disc Brake Pad Set
Choosing the right brake pads for your XC70 is about balancing performance, noise, and the infamous Volvo brake dust.
- Verify your XC70's rotor diameter (300mm, 316mm, or 336mm) before ordering to ensure you get the correct pads.
- Upgrading to ceramic pads from brands like Akebono or Bosch is the best way to solve the common problem of excessive OEM brake dust.
- Rear brake pad replacement is complicated by the Electronic Parking Brake (EPB) and may require special tools or be best left to a professional.
- Your vehicle does not use electronic pad wear sensors; it uses a simple audible squeal to indicate low pads.
Symptoms of Worn Brake Pads
Your XC70 will give you clear signs when it's time for new brake pads. Ignoring these can lead to more expensive repairs, specifically damage to the brake rotors. Listen and feel for these common symptoms:
🎬 Watch: See and hear these common brake pad symptoms in action.- High-Pitched Squealing: This is often the first sign. A small metal tab on the brake pad, called a wear indicator, makes contact with the rotor to create this noise, telling you the pads are low.
- Grinding Noise: If you hear a deep, metallic grinding, it means the friction material is completely gone. This is a critical warning, as it's now metal-on-metal contact, which quickly destroys your rotors.
- Vibrations or Pulsing: If you feel a pulsing in the brake pedal or a vibration in the steering wheel when braking, it could be a sign of worn pads or, more likely, warped rotors from the heat of worn-out pads.
- Vehicle Pulling to One Side: Unevenly worn pads or a sticking caliper can cause your car to pull to the left or right when you apply the brakes.
Critical Ordering Information: Check Your Rotor Size
The 2008-2016 Volvo XC70 was equipped with several different brake sizes from the factory, depending on the engine and trim level. Common front rotor sizes are 300mm, 316mm, and 336mm. The brake pads are shaped differently for these sizes. Before ordering, you must confirm the size of your brake rotors to ensure you get the correct pads. Measuring the rotor's diameter is the most reliable method.
Choosing the Right Aftermarket Brake Pads
Original Volvo brake pads provide excellent stopping power, but they are well-known for producing a large amount of dark brake dust that coats your wheels. Aftermarket pads offer a chance to match or even upgrade performance while significantly reducing this dust. Here’s a breakdown of your options, from OEM-equivalents to low-dust upgrades.
Tier 1: OEM Equivalent Brands
These brands are often the original equipment manufacturers (OEM) for Volvo, meaning they made the parts that were on your car when it left the factory. Choosing these is like getting the dealer part without the dealer price tag.
- ATE: A well-respected German brand and a known OEM supplier for Volvo brakes. ATE pads will restore the original braking feel and performance.
- Textar: Another OEM supplier that provides pads matching the factory specifications for performance and fit.
- Brembo (Standard): While known for high-performance, Brembo's standard replacement pads are an excellent OEM-quality choice.
Tier 2: Premium Ceramic & Low-Dust Upgrades
If your main goal is to get rid of the constant brake dust on your wheels without sacrificing performance, this is your best option. These pads use ceramic friction formulas.
- Akebono: Highly recommended by Volvo owners for their fantastic balance of strong, quiet stopping power and extremely low dust. They are a top choice for a clean, premium driving experience.
- Bosch QuietCast: These ceramic pads are engineered for quiet operation and low dust, making them a very popular and cost-effective upgrade over the stock pads.
- PowerStop Z16/Z17 Evolution: PowerStop offers ceramic pads designed as a low-dust, noise-free stock replacement, often including new hardware in the box.
Tier 3: Budget-Friendly Options
For drivers on a tighter budget, these brands offer reliable, safe brake pads that meet OE standards for fit and function, though they may not offer the low-dust benefits of premium ceramic pads.
- Raybestos
- Wagner Brakes
- Centric
- Dynamic Friction
Rear Brake Pad Replacement: The Electronic Parking Brake (EPB)
Replacing the front brake pads is a straightforward job for a DIY mechanic. However, the rear pads on the XC70 are much more complex due to the Electronic Parking Brake (EPB). To retract the rear caliper piston, you must use an electronic scan tool to put the brake system into service mode. Alternatively, a manual method involves removing the EPB motor from the back of the caliper and using a Torx bit to manually wind back the piston. 🎬 Watch: Three ways to safely retract the electronic parking brake. Attempting to force the piston back with a C-clamp will damage the caliper. If you are not comfortable with this process, it is best to have a professional shop perform the rear brake service.
Cost of Replacing a Disc Brake Pad Set
| Option | Cost Range (Parts Only) | Notes |
|---|---|---|
| New Aftermarket Pads | $32 - $194 | Price varies widely by brand and material (e.g., budget semi-metallic vs. premium ceramic). |
| New OEM Volvo Pads | $90 - $150 | Provides factory performance but also factory levels of brake dust. |
Frequently Asked Questions (FAQ)
Do I need to replace my rotors with my pads?
It is best practice to replace rotors and pads together to ensure proper bed-in and optimal performance. However, if your rotors are relatively new, in good condition (not warped or grooved), and measure above the minimum thickness specification stamped on the rotor hat, you may be able to install new pads on the existing rotors. If you hear grinding, your rotors are almost certainly damaged and must be replaced.
Ceramic vs. Semi-Metallic pads for my XC70?
OEM Volvo pads are typically a semi-metallic compound, which offers a strong initial "bite" but creates a lot of dust. Aftermarket ceramic pads, like those from Akebono or Bosch, are the preferred upgrade for most daily drivers. They provide excellent stopping power, are much quieter, and produce significantly less and lighter-colored dust.
Does my XC70 have brake pad wear sensors?
The 2008-2016 XC70 does not use electronic wear sensors that need to be replaced. Instead, it relies on a small metal tab that creates an audible squeal when the pads are low. You do not need to purchase separate sensors for a brake job.
Why are my rear pads wearing out faster than the front?
While front brakes typically do most of the work, some owners report faster-than-expected rear pad wear. This can sometimes be attributed to the vehicle's stability control and traction control systems, which can use the rear brakes to maintain stability. On models with Adaptive Cruise Control, the system may also use the rear brakes to manage speed, contributing to wear.
Helpful Videos
Technical Specifications

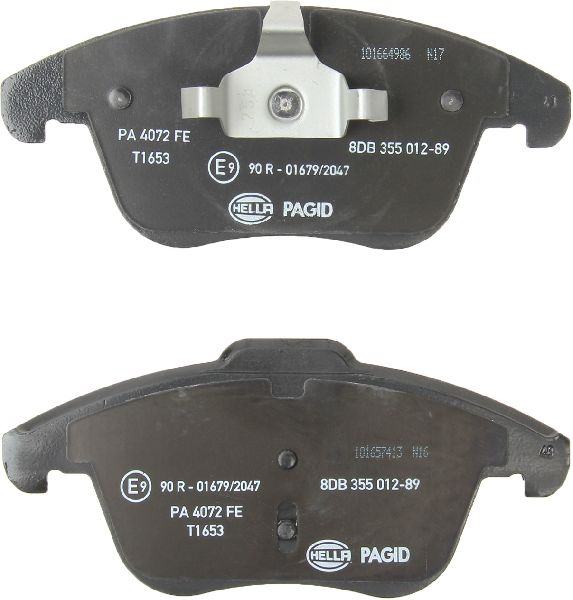

OEM Part Numbers: 32373178 32373179 30793857 31445796
Fits 2008-2016 Volvo XC70. Available for multiple rotor diameters including 300mm, 316mm, and 336mm. Available in semi-metallic and ceramic compounds. Rear pad replacement is complicated by an Electronic Parking Brake (EPB).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
