Engine Oil Pan Gasket Set Replacement for the 2008-2017 Chevrolet Caprice
Addressing oil leaks on your Caprice PPV starts with understanding the oil pan gasket.
- Oil pan gasket failure is a common source of oil leaks, but always confirm the source as leaks from higher up can mimic a pan leak.
- Replacement is a difficult, labor-intensive job because the engine must be lifted to provide clearance for pan removal.
- High-quality aftermarket brands like Fel-Pro and Reinz are reliable choices for this repair and are trusted by mechanics.
- Due to the complexity, professional installation is strongly recommended for most owners.
Is Your Caprice's Oil Pan Gasket Failing?
The oil pan gasket is a common source of oil leaks on many vehicles, including the Chevrolet Caprice PPV. Over time, the gasket material can degrade from heat cycles and exposure to oil, causing it to become hard and brittle. This prevents it from maintaining a tight seal between the oil pan and the engine block. While the aluminum oil pan itself is durable, it's vulnerable to impact damage from road debris which can also cause leaks, but the gasket is the more frequent failure point for gradual drips.
Symptoms of a Bad Oil Pan Gasket
- Visible Oil Leaks: This is the most obvious sign. You may see small drips or larger puddles of dark brown or black oil on the ground under your engine.
- Low Oil Level Warning: A persistent leak will cause the engine oil level to drop, potentially triggering the low oil warning light on your dashboard.
- Smoke and Burning Smell: If oil leaks onto hot exhaust components under the car, it will burn off, creating smoke and a distinct burning oil smell.
- Oil on the Undercarriage: While driving, leaking oil can be blown backward, coating the bottom of the oil pan, transmission, and other parts in a layer of oily grime.
Choosing the Right Aftermarket Gasket
When replacing the oil pan gasket, you have a choice between OEM and aftermarket brands. For the Caprice, high-quality aftermarket gaskets from reputable brands offer excellent performance, often at a better price point. The key is to choose a well-regarded manufacturer.
Many owners and mechanics have positive experiences with both Fel-Pro and Reinz gaskets for various applications, noting their quality is often comparable or even superior to OEM gaskets that have failed. Fel-Pro is a widely trusted brand in the US market for its reliable seals.
Brand Quality: Fel-Pro vs. Reinz
- Fel-Pro: A very popular and trusted aftermarket brand in North America. They are known for engineering gaskets specifically for the repair environment, sometimes improving on the original factory design. Many DIY and professional mechanics choose Fel-Pro for its reliability.
- Reinz (Victor Reinz): A major OEM supplier that also sells to the aftermarket. They are known for high-quality materials, with some users noting their gaskets can feel more pliable and thicker than competitors. They are generally considered a top-tier choice, comparable to Fel-Pro.
For this specific repair, both Fel-Pro and Reinz are excellent choices. Since the replacement job is labor-intensive, selecting a quality gasket from either brand is a smart investment to ensure a long-lasting seal.
Replacement Cost
Replacing the oil pan gasket on a 2008-2017 Caprice is a significant job. The labor cost is high because the engine must be lifted a few inches 🎬 See how to lift the engine and swap the gasket. off its motor mounts to create enough clearance to remove the pan. This makes it a complex task that most owners will want a professional mechanic to handle.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set (Fel-Pro, Reinz) | $88.44 |
| New OEM Gasket Set | ~$165 |
| Shop Labor | $433 - $736+ |
| Total Professional Replacement | $521 - $824+ |
Cost estimates are based on national averages and may vary by location and repair shop.
Frequently Asked Questions (FAQ)
Is there a recall on the 2008-2017 Caprice for oil leaks?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls for the engine oil pan or its gasket on the 2008-2017 Chevrolet Caprice. There was a program for a potential transmission oil cooler line leak on some 2014-2015 V6 models, but this is unrelated to the engine oil system.
Can I replace the oil pan gasket myself?
This is a difficult job for a DIY mechanic. According to owner forums and mechanic guides, the engine must be unbolted from its mounts and lifted about two inches to get the pan out. This requires an engine hoist or support bar and confidence in working with major vehicle components. For most owners, professional installation is the recommended 🎬 Watch a full walkthrough of the Caprice oil pan gasket replacement. and safer choice.
How can I be sure the oil pan gasket is the source of the leak?
Oil can leak from many places higher up on the engine and drip down, making it look like an oil pan gasket leak. Common culprits include the valve covers, oil pressure sensor, or rear main seal. A mechanic can clean the engine and use a special UV dye to pinpoint the exact source of the leak before starting any repairs.
Do I need to use sealant with the new gasket?
For LS-based engines like the V8 in the Caprice, a small dab of RTV sealant is typically required at the four corners where the engine block, front cover, and rear cover meet. The main gasket itself does not require a layer of sealant. Always follow the specific instructions included with your new gasket set.

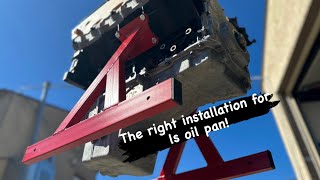

🎬 Learn where to apply RTV sealant on LS engine oil pans.Helpful Videos
Technical Specifications
OEM Part Numbers: 12612350
One-piece gasket for V8 (6.0L L77) and V6 (3.6L LFX) engines. Made of molded rubber or similar composite material.
