Choosing the Right Disc Brake Rotors for Your 2008-2017 Chevrolet Express 2500
Stopping a heavy-duty van requires strong, reliable brake rotors; here’s how to pick the best aftermarket set for your Express 2500.
- Warping is a common problem for the heavy Express 2500; symptoms include steering wheel shake and pedal pulsation.
- Always replace rotors in pairs and install new brake pads at the same time to ensure safety and performance.
- For heavy use, invest in high-quality coated rotors from brands like Powerstop, Raybestos, or ACDelco Gold to resist heat and rust.
- Before ordering, confirm your van's GVWR, as it can determine the correct rotor size.
Is It Time for New Rotors?
Because the Express 2500 is a heavy-duty vehicle, its brakes work hard and are prone to wear. Warped rotors are a common complaint among owners. This happens when the intense heat from braking causes the rotor's flat surface to become uneven. You'll likely feel the effects before you see them.
Symptoms of Failing Brake Rotors:
- Vibration or Pulsation: You may feel a pulsing in the brake pedal or a shaking in the steering wheel when you apply the brakes. This is the most common sign of a warped rotor.
- Grinding or Squealing Noises: A loud grinding sound indicates metal-on-metal contact, often meaning the brake pads are completely worn and are now damaging the rotors. Squealing can also point to worn pads or rotor issues.
- Visible Grooves or Damage: If you look at the rotor surface, you might see deep scratches, grooves, or scoring. This reduces the effectiveness of your brake pads.
- Reduced Stopping Power: If your van takes longer to stop than it used to, or the brake pedal feels soft or spongy, it could be a sign of failing rotors or other brake system problems.
Known Issues and Recalls
While no recalls exist specifically for disc brake rotors on the 2008-2017 Express 2500, some owners report a recurring issue with rotors warping prematurely. This can be caused by the high heat generated when stopping a heavy van, but can also be made worse by issues like sticking caliper slide pins or improper lug nut torque. A Technical Service Bulletin (TSB #22-NA-061) was issued for some models regarding a possible brake line contacting the body mount, which could affect the hydraulic system. Another TSB (#PI1410B) notes the red brake light on the instrument panel may come on intermittently, which could be a normal characteristic but is worth being aware of.
Choosing the Right Aftermarket Rotors
When shopping for new rotors, you'll find a wide range of options. For a workhorse like the Express 2500, choosing a quality rotor is more important than finding the lowest price. Aftermarket parts often meet or exceed original equipment (OE) specifications. Brands like ACDelco even offer multiple tiers of quality, from budget-friendly to professional-grade.
Brand & Quality Tiers
Here’s a breakdown of available brands to help you choose:
- Professional Grade / Heavy-Duty (Best): These are your top-tier options, ideal for fleet vehicles, heavy towing, or anyone who wants maximum durability. Coated rotors in this category offer excellent rust protection, which is important for longevity, especially in wet or snowy climates. Brands include Powerstop (especially their truck & tow kits), EBC Brakes, Brembo, Raybestos (Element3 line with coating), ACDelco Gold (Professional), and Bosch.
- Daily Driver (Better): These brands offer a great balance of quality and price for normal use. They are a solid step up from economy parts and provide reliable, quiet performance. Look for coated options to prevent rust on the hat and vanes. Brands in this tier include Centric, Wagner Brakes, Bendix, and ACDelco Silver (Advantage).
- Economy (Good): If budget is your primary concern, economy rotors will get the job done. However, they may be made from lower-grade materials, be uncoated (leading to rust), and may not last as long under the heavy demands of an Express van. Brands like Pronto and Dynamic Friction often fall into this category.
Pro Tip: Check Your GVWR Before Ordering
A common mistake is ordering the wrong size rotors. The Chevrolet Express 2500 can have different brake components based on its Gross Vehicle Weight Rating (GVWR). Always verify your van's specific configuration before purchasing parts to ensure a perfect fit.

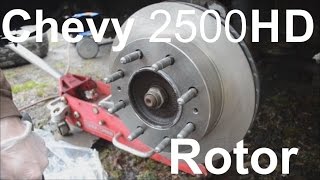

🎬 See how to remove and install front rotors on heavy-duty models.Cost of Replacing Disc Brake Rotors
The cost can vary significantly based on the brand of rotors you choose and whether you perform the labor yourself.
🎬 Watch this step-by-step guide to replacing your van's brake rotors.| Item | Estimated Cost |
|---|---|
| New Aftermarket Rotors (Pair) | $70 - $425 |
| Shop Labor (Per Axle) | $150 - $220 |
| Total Professional Replacement (Per Axle) | $220 - $645 |
Frequently Asked Questions
Do I have to replace my brake pads when I replace my rotors?
Yes, it is highly recommended. Installing old, worn brake pads on new rotors will cause uneven wear and can ruin the new rotors quickly. Always install new pads with new rotors to ensure a fresh, flat surface for both components to mate together properly.
What's the difference between coated and uncoated rotors?
Coated rotors have a protective layer (often zinc or a specialized paint) that prevents rust and corrosion on the parts of the rotor not touched by the brake pad, like the hat and cooling vanes. This not only keeps them looking better but also helps with durability, especially in regions that use road salt in the winter. Uncoated rotors are bare cast iron and will show surface rust quickly.
Are drilled or slotted rotors better for my Express van?
For a heavy vehicle like the Express 2500, especially if you tow or carry heavy loads, drilled and slotted rotors can offer better heat and gas dissipation, which helps prevent brake fade. However, for general use, a high-quality, solid blank rotor from a reputable brand is more than sufficient and often more durable.
Can I replace just one rotor?
No, you should always replace rotors in pairs (both front or both rear) to ensure even braking performance. Replacing only one can cause the vehicle to pull to one side during braking.
Why do my new brakes make noise?
New brakes require a "bed-in" or "break-in" procedure to properly mate the new pads to the new rotors. This involves a series of controlled stops to deposit an even layer of friction material onto the rotor surface. Failure to do this can cause noise and vibration. Also, ensure all hardware, like anti-rattle clips, were properly installed and lubricated.
Helpful Videos
Technical Specifications
Key specifications for Chevrolet Express 2500 rotors vary based on the vehicle's Gross Vehicle Weight Rating (GVWR) and model year. Common front rotor diameters are around 12.8 to 13 inches (325-330mm), and they typically use an 8-lug bolt pattern. Always confirm the exact specifications for your vehicle's VIN or GVWR before purchasing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
