A Practical Guide to the 2008-2017 Toyota Camry Window Motor
If your Camry's window is slow, stuck, or noisy, this guide will help you understand and fix the problem.
- Window motor failure on the 2008-2017 Camry is a common wear item, with symptoms like slowness or getting stuck.
- For 2007-2009 models, first rule out the recalled master window switch before replacing a motor.
- Replacing the entire motor and regulator assembly is easier for DIY and prevents future issues.
- The repair is straightforward for a DIYer with basic tools and can save over $150 in labor costs.
Is Your Camry's Window Motor Failing?
A failing window motor in a 2008-2017 Toyota Camry is a common issue caused by normal wear and tear. The motors simply get tired after thousands of uses. Usually, they don't fail suddenly. You will likely notice symptoms that get worse over time.
Common Failure Symptoms:
- Slow Window Speed: The glass moves up or down much slower than it used to.
- Stops Moving: The window gets stuck partway, forcing you to wait before trying again.
- Moves in Spurts: The window will go up an inch, stop, then go another inch. This is often the motor's internal protection circuit overheating.
- Noise Without Movement: You hear a clicking or grinding sound from the door when you press the switch, but the window doesn't move.
- Works Only One Way: The window will go down but refuses to go back up.
Check the Switch First on 2007-2009 Models
Toyota issued a recall for the driver's side master window switch on 2007-2009 Camrys. The switch could short out due to a lack of grease, causing it to melt or even create a fire risk. If your window problems seem related to the master switch, check if this recall work was performed on your vehicle. A faulty switch can mimic a bad motor.

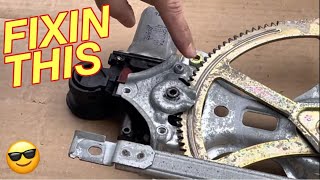

🎬 Watch: How to diagnose if your switch or motor is badChoosing the Right Aftermarket Window Motor
When your window motor fails, you don't have to pay high dealership prices for an OEM part. Aftermarket brands offer a good balance of quality and cost. For your Camry, you will mainly find two types of brands.
- Standard Aftermarket (Cardone, Dorman): These brands are the most common and affordable choices. They are designed to fit and function like the original part and get the job done reliably. Many owners find them to be a perfectly good solution for daily driving. Dorman, for example, is known for having a huge catalog and often includes a lifetime warranty.
- Premium Aftermarket (Aisin): Aisin is a Japanese company that often manufactures parts for Toyota. Their parts are considered OE-quality, meaning they are built to the same, if not better, standards as the original. If you want the best possible replacement without paying for a Toyota-branded box, Aisin is an excellent choice.
Pro Tip: Consider buying a 'Window Regulator and Motor Assembly'. This single part includes both the motor and the lift mechanism. It often makes the installation much easier because you don't have to separate the old motor from the old regulator. You just swap the entire unit.

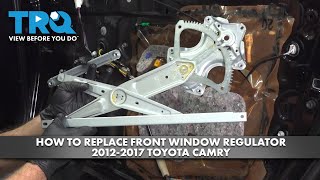

🎬 See this walkthrough for replacing a front window regulatorTypical Replacement Costs
Paying a repair shop is always an option, but replacing the window motor yourself can save you a lot of money. The job requires basic tools and can be done in an afternoon.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Motor Assembly | $100 - $131 |
| New OEM Motor Assembly | $200 - $250+ |
| Shop Labor | $125 - $175 |
| Total Professional Repair | $240 - $400+ |
Frequently Asked Questions
Can I replace just the motor, or do I need the whole assembly?
Yes, you can usually replace just the motor. It is attached to the regulator with a few screws. However, buying the complete assembly is often recommended. It simplifies the repair and ensures all moving parts are new, which can prevent another failure down the road.
Is the replacement the same for the front and rear doors?

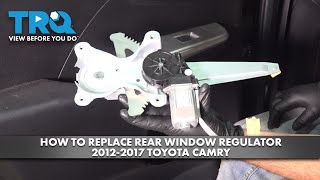

The process is very similar, but the parts are different. The motor and regulator assemblies are specific to each door (front driver, front passenger, etc.). Make sure you order the correct part for the specific door 🎬 Watch this guide for replacing a rear window regulator you are repairing.
My window just makes a click. Is that the motor?
A single click often means the motor is receiving power but is seized or jammed and cannot move. This is a strong indicator that the motor has failed. Grinding or whirring noises suggest the motor's internal gears are stripped.
What is the hardest part of this repair?
For most people, the trickiest steps are safely removing the door panel without breaking any plastic clips and maneuvering the old regulator assembly out of the small opening in the door frame. It's also important to remember to tape the window glass in the 'up' position so it doesn't fall and break once you unbolt it from the regulator.
Helpful Videos
Technical Specifications
OEM Part Numbers: 85720-06080 85720-33060 85720-AA040
This is a 12V DC electric motor. Aftermarket options are available as a standalone motor or as a complete motor and regulator assembly. The motor attaches to the regulator with three Torx screws, typically T25 or T30.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
