GMC Sierra 2500 HD (2008-2019) Fuel Pump Module Assembly: A Complete Guide
Keep your Sierra running strong by understanding fuel pump failure and choosing the right replacement part.
- A failing fuel pump gives warnings like engine sputtering, hard starts, and a whining noise from the tank.
- For a reliable repair, choose a top-tier aftermarket brand like Delphi or Bosch, as they are often the OEM suppliers.
- Replacing the fuel pump is a big job; lifting the truck bed is easier than dropping the fuel tank.
- Before replacing the pump, have the Fuel Pump Control Module (FPCM) checked, as it can cause similar symptoms and is a known issue on GM trucks.
Is Your Sierra's Fuel Pump Failing?
A bad fuel pump in your 2008-2019 GMC Sierra 2500 HD will give you clear warning signs. If your truck is having trouble starting, stalling, or losing power, the fuel pump could be the problem. These symptoms happen because the pump can't send enough fuel to the engine. You might also hear a loud whining or humming noise from the fuel tank area, which is a common sign of a pump motor going bad.
Don't Ignore the Signs
A failing fuel pump can leave you stranded without warning. If you notice symptoms like engine sputtering, difficulty starting, or a whining noise from the tank, it's important to get it checked out. Driving with a bad fuel pump can also cause other parts of your engine to work harder, leading to more expensive repairs down the road.
Known Issues, Recalls, and Service Bulletins
While there are no widespread recalls specifically for the fuel pump module on the 2008-2019 Sierra 2500 HD, some related issues are worth noting. Many GM trucks, including the Sierra, have known problems with the Fuel Pump Control Module (FPCM). This separate electronic part controls the fuel pump. Sometimes, the FPCM fails, causing symptoms that seem like a bad fuel pump. It's a good idea to have a mechanic check the FPCM before deciding to replace the entire fuel pump assembly. Additionally, GM issued a technical service bulletin (TSB #PIP5507A) for some 2013-2017 models that could stall in very high ambient temperatures due to a fuel system issue, with diagnostic codes like P2635 or P018B.
Choosing the Right Aftermarket Fuel Pump
When replacing your fuel pump, you don't have to buy an expensive OEM part from the dealer. Quality aftermarket brands can offer similar performance for less money. However, not all aftermarket parts are created equal. The labor to replace a fuel pump is significant, so choosing a reliable brand is critical to avoid doing the job twice.
Brand Quality Tiers
- Top Tier (OEM-Quality): Brands like Delphi and Bosch are often the original equipment manufacturers for GM. Choosing one of these brands is the closest you can get to the original part's quality and fit. Delphi, in particular, is a common OE supplier for GM vehicles, making it a very safe bet.
- Mid-Grade (Reliable Alternatives): Carter is a long-standing brand with a reputation for solid, reliable fuel pumps that offer good value. Brands like GMB and US Motor Works also fall into this category, providing a balance of price and performance, though some user reviews are mixed.
- Economy (Budget-Focused): Brands like URO Parts and other lower-priced options can be tempting. However, forum discussions often warn against using budget electronic parts for critical components like a fuel pump, as failure rates can be higher. Given the difficulty of the replacement job, saving a few dollars on the part might cost more in the long run if it fails early.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Assembly | $149 - $674 |
| New OEM Assembly | $714 - $795+ |
| Shop Labor | $261 - $384 |
| Total Professional Replacement (Aftermarket) | $410 - $1058 |
| Total Professional Replacement (OEM) | $975 - $1179+ |
Pro Tip: Lift the Bed, Don't Drop the Tank
On the Sierra 2500 HD, most mechanics and experienced DIYers recommend removing the truck bed to access the fuel pump. While dropping the fuel tank is possible, it is much heavier and more difficult, especially if it's not empty. Lifting the bed requires disconnecting the filler neck, taillight wiring, and removing six to eight bolts. This method provides wide-open access to the top of the fuel tank and makes the job much easier.
Frequently Asked Questions (FAQ)
What are the most common signs of a bad fuel pump?
The most common symptoms are a whining noise from the fuel tank, the engine cranking but not starting, stalling, hesitation or loss of power when accelerating, and a sudden decrease in fuel efficiency.
Can I just replace the pump motor or do I need the whole assembly?
The part is sold as a complete module assembly, which includes the pump, sending unit for the fuel gauge, strainer, and housing. It is designed to be replaced as a single unit. This ensures all related components are new and prevents issues with compatibility or early failure of an old part.
Is this a DIY job or should I go to a mechanic?
This is a difficult job for a beginner. It requires either lifting the truck bed or dropping a heavy fuel tank. If you have the right tools, a helper, and mechanical experience, it is possible to do it yourself. However, due to the complexity and safety precautions needed when working with the fuel system, most owners should have a professional mechanic perform the replacement.
Should I run my gas tank low?
No. Frequently running your truck with a low fuel level can cause the fuel pump to overheat and fail prematurely. The gasoline in the tank helps cool the electric pump motor. Keeping your tank at least a quarter full is a good practice to extend the life of your fuel pump.
Technical Specifications

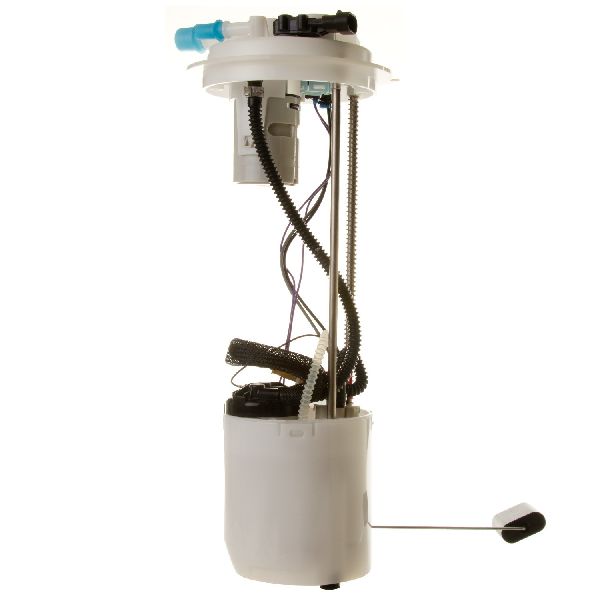

This is a complete in-tank fuel pump module assembly. It includes the electric fuel pump, fuel level sending unit, float, strainer, and reservoir. It is designed for gasoline engines in the 2008-2019 GMC Sierra 2500 HD. Diesel models use a different fuel system.
