Cadillac Escalade Engine Oil Pan Guide for 2008-2020 Models
Dealing with an oil leak? Here’s what you need to know about replacing the engine oil pan on your Escalade.
- Oil leaks may not be the pan itself; check the oil filter, oil cooler gasket, and oil pressure sensor first.
- Replacement on AWD models is a major job requiring removal of the front differential and is not recommended for DIY.
- Aftermarket brands like Dorman and Spectra offer a quality, affordable alternative to expensive OEM parts.
- Always replace the oil pan gasket and pickup tube O-ring during the service for long-term reliability.
Is Your Escalade's Oil Pan Failing?
Oil pans are built to last, but they aren't invincible. The most common reasons for replacement are physical damage from road debris or corrosion from road salt and moisture. Here are the signs that your oil pan needs attention:
- Visible Oil Leaks: Puddles or drips of dark brown or black oil on the ground under your engine are the most obvious symptom.
- Low Oil Level Warning: If a leak is significant, your Escalade's oil level will drop, triggering the low oil level or low oil pressure light on your dashboard.
- Smoke or Burning Smell: Oil leaking onto hot exhaust components will burn off, creating smoke and a distinct burning smell.
- Damaged Drain Plug: The threads for the drain plug can become stripped over time from repeated oil changes, causing a persistent leak that can't be fixed by just tightening the plug.
Check Other Leak Sources First
Before you blame the oil pan, make sure the leak isn't coming from somewhere else. On these Escalade engines, oil leaks are also common from the oil pan gasket, a loose oil filter, the oil pressure sensor at the back of the engine, or an oil cooler line gasket. A thorough cleaning and inspection can help you pinpoint the exact source of the leak.
🎬 Watch this before you decide to replace your oil pan.Choosing an Aftermarket Oil Pan: Dorman vs. Spectra
When replacing your oil pan, you don't have to buy an expensive OEM part from the dealer. Aftermarket brands offer a cost-effective alternative. For the 2008-2020 Escalade, Dorman and Spectra are two common choices.

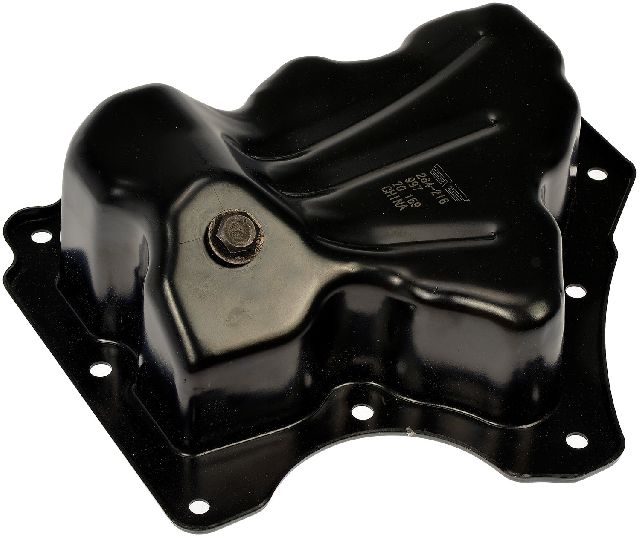

- Dorman: A well-known aftermarket brand, Dorman often provides parts that meet or exceed original specifications. Some of their pans even include improvements over the factory design, like better drain plugs or more durable coatings. They are generally considered a reliable choice for daily drivers.

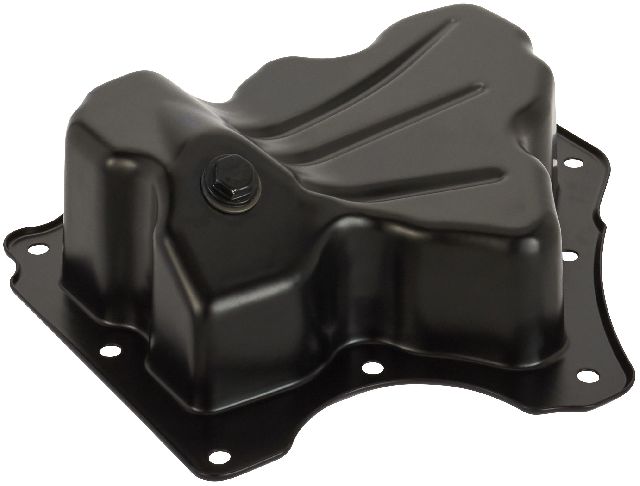

- Spectra Premium: Spectra is another major manufacturer. Their oil pans are often praised for being a good value. In some cases, Dorman and Spectra parts may be nearly identical, possibly coming from the same factory.
Pro Tip: When buying an aftermarket pan, check if it comes with a new drain plug and gasket. Some Dorman pans, for example, might use a different size drain plug than the original, which is something to be aware of for future oil changes. Also, always purchase a new oil pan gasket; it is not reusable.
Known Issues, TSBs, and Recalls
While there are no direct recalls for the oil pan itself on 2008-2020 models, it's important to be aware of related issues:
- TSB PIE0321: For 2015 models, GM issued a technical service bulletin regarding oil leaks from the lower oil pan sealing surface on the 5.3L and 6.2L engines. This indicates that GM is aware of potential sealing issues from the factory.
- Oil Cooler Gasket Leaks: A common leak point on these engines is the oil cooler block-off plate gasket located on the oil pan. This can be mistaken for a leaking pan or pan gasket, but it is a much simpler and cheaper repair. 🎬 See how to fix this common oil cooler plate leak.
- 2021-2024 Engine Recall: While outside the 2008-2020 range, it's worth noting that newer Escalades with the 6.2L L87 engine were recalled for serious internal engine defects. This does not apply to the oil pan on earlier models but is relevant for owners of newer trucks.
Cost of Replacing a Cadillac Escalade Oil Pan
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $65 - $247 |
| New OEM Oil Pan | $477 - $554 |
| Shop Labor | $427 - $661 |
| Total Professional Replacement | $492 - $1,180+ |
Note: Costs are estimates and can vary based on your location, vehicle (AWD vs. RWD), and the specific parts used. The total replacement cost can be high because on All-Wheel Drive (AWD) models, the front differential must be removed to access the oil pan, significantly increasing labor time. 🎬 Watch a walkthrough of the AWD oil pan removal process.
Frequently Asked Questions
Is it hard to replace an Escalade oil pan?
The difficulty depends heavily on your drivetrain. On a 2WD model, the job is relatively straightforward. On an AWD model, the front differential and possibly steering components must be removed, making it a complex job that can take several hours. This is often best left to a professional mechanic unless you are very experienced and have the right tools, including a lift.
Do I need a new gasket and bolts?
Yes, you must always use a new oil pan gasket. The old one is a one-time-use seal and will not seal properly if reused. While you can sometimes reuse the bolts, it is good practice to replace them, especially if they show any signs of corrosion or damage.
Should I choose a steel or aluminum pan?
Both materials work well. Aluminum pans are what often come from the factory; they are lightweight and dissipate heat well. Aftermarket steel pans can be more durable against impacts but may be more susceptible to rust in areas with heavy road salt use. For most owners, either will be a suitable replacement.
My leak is small. Can I just use a sealant?
Using an external sealant or stop-leak additive is a temporary fix at best and is not recommended. These products rarely solve the problem permanently and can sometimes cause other issues in the engine's oiling system. The only correct repair for a leaking or damaged oil pan is to replace it.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12577903
The oil pan for the 2008-2020 Cadillac Escalade is typically made of cast aluminum from the factory, though steel aftermarket options are available. It is used for the 6.0L and 6.2L V8 engines. The replacement procedure on AWD models requires removal of the front differential assembly for clearance. Some models use a liquid RTV sealant for the gasket, while others use a pre-formed gasket.
