Porsche Cayenne Ignition Knock Sensor Guide (2008-2022): A Mechanic's Advice
Don't let a bad knock sensor degrade your Cayenne's performance; understand the symptoms, costs, and which parts to trust.
- This is a labor-intensive repair; choose the best quality part (Bosch) to avoid doing the job twice.
- Always replace all knock sensors (2 on V6, 4 on V8) at the same time, along with their single-use bolts.
- Failure is often caused by leaking coolant in the engine valley, which damages the sensors and wiring.
- Symptoms include a Check Engine Light and significant loss of power as the engine enters a protective 'safe mode'.
Symptoms of a Failing Knock Sensor in a Porsche Cayenne
A bad knock sensor will almost always trigger the Check Engine Light. The engine computer will store fault codes, which can be read with an OBD2 scanner. Common codes include P0327 (Knock Sensor 1 Circuit Low Input), P0332 (Knock Sensor 2 Circuit Low Input), and P033C. 🎬 Watch: Diagnosing these specific fault codes on a Cayenne V8. Beyond the warning light, you will feel the consequences. The ECU will put the engine into a safe mode to prevent damage, resulting in noticeably sluggish performance, poor acceleration, and a general lack of power. On turbocharged models, you may find the engine is unable to produce full boost. 🎬 Watch: How a Turbo model behaves in limp mode. Some owners also report that automatic gear shifts become rough or poorly timed as the engine's performance is compromised.
A Known Point of Failure: Location, Location, Location
On Cayenne V8 engines, the knock sensors are located deep in the valley between the cylinder heads. This area is unfortunately prone to collecting debris and is directly underneath coolant pipes that have been known to leak over time. This coolant pools around the sensors and their electrical connectors, causing corrosion and eventual failure. Often, the sensor itself hasn't failed, but its wiring has become brittle or shorted out from heat and fluid exposure.
Choosing the Right Aftermarket Knock Sensor

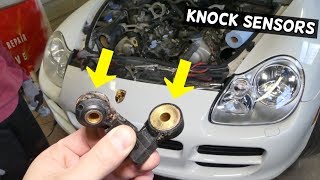

This is one of the most labor-intensive sensor replacements on your Cayenne. The intake manifold, fuel rails, and sometimes even the starter motor must be removed to gain access. 🎬 See this walkthrough of the complex sensor removal and replacement. This job can take a professional mechanic several hours. Because the labor cost is so high, this is not a part you want to replace twice. Choosing a high-quality sensor is critical.
Brand Quality Tiers for Your Cayenne
- Tier 1 (OEM-Spec): Bosch
Bosch is widely regarded as the Original Equipment Manufacturer (OEM) for many Porsche parts, including these sensors. When you buy Bosch, you are getting the same quality and reliability as the part that came on your vehicle from the factory. Given the cost of labor, choosing Bosch is the most sensible and cost-effective decision in the long run. - Tier 2 (Reputable Aftermarket): Vemo, Standard Ignition, Walker Products
These brands are established names in the aftermarket. They offer a balance of quality and price. While they can be a viable option for less critical parts, for a job this labor-intensive, the small cost savings may not be worth the risk of premature failure compared to Bosch. - Tier 3 (Budget-Focused): Facet, Global Parts & Other Economy Brands
These brands focus on providing the lowest possible price point. While tempting, installing a budget-tier sensor in a Porsche Cayenne is strongly discouraged. The risk of early failure is higher, which would mean paying for the expensive labor all over again. Avoid these for this specific repair.
Pro Tip: Replace in Sets
Your Cayenne V8 has four knock sensors, while V6 models have two. If one has failed, the others have been exposed to the same heat, time, and conditions. Since the engine must be torn down to access them, it is absolutely essential to replace all of them at the same time, along with their single-use mounting bolts. This will save you from having to do the same expensive job again in a few months.
Cost to Replace a Porsche Cayenne Knock Sensor
The cost is dominated by labor due to the sensor's location. While a single aftermarket sensor can be inexpensive, the total bill will be significant.
| Item | Estimated Cost |
|---|---|
| New OEM (Set of 2 or 4) | $200 - $500+ |
| New Aftermarket (Set of 2 or 4, Bosch) | $150 - $300 |
| Shop Labor | $420 - $800+ |
| Total Professional Replacement | $620 - $1100+ |
Frequently Asked Questions
Why is the replacement so expensive?
The high cost is due to the sensor's location in the engine valley, under the intake manifold. A mechanic needs to remove many other components to get to them, which takes 4-6 hours of labor. The parts themselves are not the main cost driver.
Is this a DIY job?
For most owners, no. This is an advanced repair requiring significant disassembly of the engine's fuel and air intake systems. It also requires special tools, including a torque wrench, as the sensors must be torqued to a precise specification (17 ft-lbs / 23 Nm) to function correctly. Incorrect torque will lead to poor performance.
How many knock sensors does my 2008-2022 Cayenne have?
V8 models (S, GTS, Turbo) have four knock sensors. V6 models typically have two. It is recommended to replace all of them at the same time.
Are there any recalls for the knock sensor?
No, there are no specific recalls from Porsche or NHTSA for knock sensor failure on the 2008-2022 Cayenne. Failures are treated as a standard repair item.
Helpful Videos
Technical Specifications
OEM Part Numbers: 95560612500 95560612521
Required Torque: 17 ft-lbs (23 Nm). The sensor's sensitivity is dependent on correct torque.
