A Guide to Universal Joints for the 2008-2022 Toyota Sequoia
Address driveline vibrations and clunks by understanding how to choose the right replacement U-joint for your Sequoia.
- Address U-joint symptoms like vibrations and clunks immediately to prevent dangerous driveshaft failure.
- For replacements, Dana/Spicer and GMB are top-tier aftermarket brands offering excellent quality, often rivaling OEM parts.
- Decide between greasable joints that require maintenance and sealed joints that are maintenance-free; high-quality sealed joints are often the more reliable choice.
- U-joint replacement is a difficult job requiring special tools; it is recommended to have it done by a professional mechanic.
Symptoms of a Failing U-Joint in a Toyota Sequoia
A worn U-joint is not something to ignore. The symptoms usually start small but can lead to a catastrophic failure where the driveshaft separates from the vehicle, causing a loss of control and significant damage. Listen and feel for these common signs:
🎬 Watch: See and hear these common U-joint failure symptoms.- Vibrations: A new vibration felt through the floor or seats, especially at highway speeds, is a classic symptom of a bad U-joint. As the internal needle bearings wear out, they create an imbalance in the spinning driveshaft.
- Clunking Noises: A distinct “clunk” or “ping” when you shift into Drive or Reverse is a tell-tale sign. This noise is caused by excessive play in the worn-out joint.
- Squeaking or Chirping: A cyclical squeak that changes with your speed, often more noticeable at lower speeds, points to a U-joint that has lost its internal lubrication.
Do Not Ignore a Failing U-Joint
Continuing to drive with a bad U-joint is dangerous. A complete failure can cause the driveshaft to fall, potentially digging into the pavement and flipping the vehicle or causing you to lose all power to the wheels. At the first sign of trouble, get your Sequoia inspected.
Choosing the Right Aftermarket U-Joint
When replacing U-joints, you have a choice between OEM and aftermarket parts. For the 2008-2022 Sequoia, several high-quality aftermarket options are available that can meet or exceed original specifications. Aftermarket brands often provide options like greasable fittings, which allow for periodic maintenance to extend the part's life.
Brand Quality Tiers
Not all aftermarket parts are created equal. Based on forum discussions and mechanic consensus, here’s a general breakdown of the brands available for your Sequoia:
- Top Tier (OEM Quality or Better): Dana/Spicer is a highly respected name in driveline components and is often considered a top-tier choice, with many professionals recommending their non-greasable, solid-body joints for maximum strength. GMB is a Japanese manufacturer and a known OEM supplier for many brands, making them a very reliable choice for a Toyota.
- Trusted Aftermarket: SKF is a global leader in bearings and their U-joints are considered a quality, durable option. Moog is a very popular aftermarket brand, though reviews can be mixed; some of their parts feature innovative designs like easy-to-access grease fittings, but quality can vary.
- OEM: Genuine Toyota U-joints are an excellent, albeit more expensive, option. Many owners who want a guaranteed fit and long life stick with the original parts.
Greasable vs. Sealed U-Joints
A major choice is between greasable and non-greasable (sealed) U-joints. Sealed joints, like the original Toyota parts, are lubricated for life and require no maintenance, but their lifespan is finite. Greasable joints can last longer if—and only if—they are regularly greased with the proper lubricant. For many owners, the durability of a high-quality sealed joint from a brand like Spicer or GMB is the preferred, maintenance-free option.
Replacement Cost for a Toyota Sequoia U-Joint
The cost to replace a U-joint can vary based on whether you do it yourself or go to a shop. The parts themselves are relatively inexpensive, but the labor can be significant.
| Service | Estimated Cost |
|---|---|
| Aftermarket U-Joint Part | $18 - $240 |
| Shop Labor | $184 - $270 |
| Total Professional Replacement | $202 - $510 |
Note: Prices are estimates and can vary by location and the specific U-joint being replaced. Your Sequoia has multiple U-joints.
Frequently Asked Questions
How many U-joints does my 2008-2022 Sequoia have?
A 2WD Sequoia typically has two U-joints on the rear driveshaft. A 4WD model has those two, plus additional U-joints on the front driveshaft, for a total of three or four depending on the specific driveshaft configuration.
Can I replace just one bad U-joint?
Yes, you can replace only the failing U-joint. However, it's often recommended to replace them in pairs or all at once, especially on high-mileage vehicles. If one has failed due to age and wear, the others are likely not far behind.
Is replacing a U-joint a DIY job?

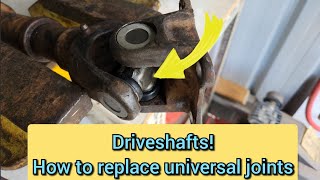

This is a job for an experienced DIY mechanic. It requires safely lifting the vehicle, removing the heavy driveshaft, 🎬 Watch: How to safely remove and install a Toyota driveshaft. and using a hydraulic press or a specialized C-clamp press tool to remove the old joint and install the new one. Without the right tools, you can easily damage the driveshaft yoke. 🎬 See this step-by-step guide for replacing Toyota universal joints. For most owners, this job is best left to a professional shop.
Were there any recalls for Sequoia U-joints?
No specific recalls for universal joints on the 2008-2022 Toyota Sequoia were found. However, there were recalls for ball joints on earlier models, which are a different part of the suspension. Always check the NHTSA website with your vehicle's VIN for the most up-to-date recall information.
Helpful Videos
Technical Specifications
OEM Part Numbers: 04371-04031 04371-60070
The 2008-2022 Toyota Sequoia uses multiple U-joints. 2WD models have a two-piece rear driveshaft, while 4WD models add a front driveshaft. The specific part number and size can vary depending on the driveshaft position (front or rear) and the vehicle's drivetrain (2WD vs. 4WD). Always verify the exact part needed for your specific vehicle configuration.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
