Buick Enclave Ignition Coil Guide: 2008-2024 Models
Everything you need to know before replacing a faulty ignition coil on your Buick Enclave's 3.6L V6 engine.
- A flashing check engine light is a serious warning to stop driving to prevent catalytic converter damage.
- Replacing rear coils (cylinders 1, 3, 5) requires removing the intake manifold, a much bigger job than replacing the front coils.
- If one rear coil fails, replace all three rear coils, all six spark plugs, and the intake gaskets at the same time to save on future labor costs.
- Stick with high-quality brands like ACDelco, Delphi, NGK, or Hitachi, especially for the difficult-to-access rear bank.
Is Your Enclave Shaking, Stuttering, or Running Rough?
A bad ignition coil is a common problem on the 2008-2024 Buick Enclave. When a coil fails, the engine can't burn fuel correctly in one of its cylinders. This is called a misfire. You will usually feel it as a shake at idle, a hesitation when you accelerate, and the Check Engine Light will almost always come on.
A Tale of Two Engine Banks: Why Replacement Can Be Tricky
Your Enclave's V6 engine is mounted sideways. This creates a "front bank" of three cylinders (2, 4, and 6) that are easy to see and reach near the radiator. The "rear bank" has the other three cylinders (1, 3, and 5) tucked back against the firewall, underneath a large plastic part called the upper intake manifold.

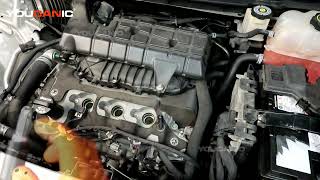

- Front Coils (Cylinders 2, 4, 6): These are simple to replace. It's a quick, straightforward job that many DIYers can do in under an hour. 🎬 Watch: A quick guide to replacing the front bank coils.

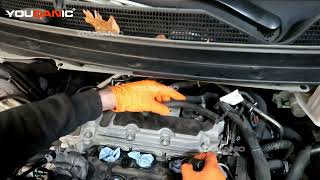

- Rear Coils (Cylinders 1, 3, 5): These are much harder to replace. The entire upper intake manifold must be removed to access them. This turns a small job into a multi-hour repair. 🎬 See how to access and replace the difficult rear coils.
Choosing the Right Aftermarket Ignition Coil
Not all aftermarket coils are created equal. For a part that can be very labor-intensive to replace, choosing a quality brand is important. Here’s how they generally stack up for your Enclave:
- Tier 1: OEM & OEM-Equivalent Brands (Highest Quality): These brands are known for providing the original parts to General Motors or have a reputation for matching that quality. They are the safest bet, especially for the hard-to-access rear coils.
Brands: ACDelco (Original GM part), Delphi, NGK, Hitachi. - Tier 2: Reputable Aftermarket Brands (Good Quality & Value): These brands are well-known in the industry for producing reliable parts that meet or exceed OEM specifications. They offer a good balance of price and performance.
Brands: Bosch, Standard Ignition (SMP), Hella, Spectra Premium. - Tier 3: Economy Brands (Budget-Focused): These coils are the most affordable. While tempting, they can be a gamble on quality and lifespan. They might be acceptable for an easy-to-change front coil, but using them in the rear bank is risky due to the high labor cost if one fails prematurely.
Brands: DriveWire, True Tech, URO Parts, and other private labels.
Known Issues & Service Bulletins
While there have been no official safety recalls for Buick Enclave ignition coils, General Motors has issued several Technical Service Bulletins (TSBs) related to misfires. TSBs are instructions for dealers on how to diagnose and fix common problems.
- TSB PIP5038: For early models like the 2009 Enclave, this bulletin addresses misfire codes (P0300-P0306) and shuddering caused by heat-stressed ignition coils. In some cases, it recommended replacing all six coils.
- TSB 21-NA-036: This more recent bulletin helps technicians diagnose misfire codes on 2018-2024 Enclaves 🎬 Watch this video to help diagnose P0300 misfire codes., among other GM vehicles.
These bulletins confirm that ignition coil issues are a known problem that GM is aware of.
| Part / Service | Estimated Cost |
|---|---|
| Single Aftermarket Ignition Coil | $35 - $120 |
| Shop Labor (Single Front Coil) | $60 - $90 |
| Shop Labor (Single Rear Coil) | $144 - $211+ (due to intake removal) |
| Total Job (Single Front Coil) | $95 - $210 |
| Total Job (Single Rear Coil) | $180 - $330+ |
Note: Costs are estimates and will vary by location and the specific parts chosen. Labor for a rear coil is significantly higher.
Frequently Asked Questions
Can I replace just one ignition coil?
Yes, you can. However, ignition coils often fail around the same time. If you are paying for labor to access the difficult rear bank, it is financially smart to replace all three rear coils and all six spark plugs at once to avoid future repair bills.
What are the misfire codes for my Buick Enclave?
An OBD-II scanner will show codes from P0301 to P0306. The last number tells you which cylinder is misfiring (e.g., P0301 is cylinder 1, P0306 is cylinder 6). A P0300 code means multiple cylinders are misfiring.
How do I know which bank is which?
On the 3.6L V6 in the Enclave, Bank 1 is the rear bank (cylinders 1, 3, 5) against the firewall. Bank 2 is the front bank (cylinders 2, 4, 6) near the radiator.
Do I need special tools to replace the coils?
For the front coils, you only need basic hand tools like a 10mm socket and ratchet. For the rear coils, you will need more tools to remove the intake manifold, including various sockets, extensions, and a torque wrench for reassembly. You will also need new intake manifold gaskets.
Should I use dielectric grease?
Yes. Applying a small amount of dielectric grease to the inside of the new ignition coil boot helps seal it from moisture and makes future removal easier. It does not help the electrical connection, it protects it.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12632479 12618542 12610626 12590990 D515C
Coil-on-Plug (COP) design. One coil required per cylinder. Total of six coils for the 3.6L V6 engine.
