A Guide to Universal Joint Replacement for the 2009-2010 Hummer H3T
Eliminate drivetrain clunks and vibrations by understanding and choosing the right U-joint for your truck.
- Your 2009-2010 H3T has three U-joints: two on the rear driveshaft and one on the front.
- A loud clunk when shifting into gear is the most common sign of a bad U-joint.
- Dana Spicer is considered the premium, OEM-quality brand, while Moog, SKF, and GMB are reliable aftermarket alternatives.
- Replacement is a difficult DIY job because it requires a bench vise or a special press to remove and install the joint without causing damage.
Signs of a Failing Universal Joint
A worn U-joint will give you clear warning signs. Ignoring them can lead to a complete failure, which could cause the driveshaft to detach from the vehicle while driving. Listen and feel for these common symptoms:
- Clunking or Banging Noise: The most common symptom is a distinct "clunk" or "bang" when you shift from drive to reverse, or vice-versa. This is caused by excessive play in the worn joint.
- Vibration at Speed: You may feel a vibration throughout the truck that gets worse as you accelerate. This can feel like driving over rumble strips and is a sign the driveshaft is spinning out of balance.
- Squeaking or Chirping: A rhythmic squeak or chirp that changes with your speed, often heard at slower speeds, points to a U-joint that has lost its internal lubrication.
Diagnosing the Issue
To check for a bad U-joint, safely park the truck on a level surface, chock the wheels, and put the transmission in neutral. Try to twist the driveshaft by hand. If you feel any play or movement at the joint, or hear a clunk, it needs to be replaced.
Choosing the Right Aftermarket U-Joint
When replacing a U-joint on your H3T, you have several excellent aftermarket options. The original factory joints are typically sealed and cannot be greased. Many aftermarket parts offer a grease fitting (zerk), which allows you to perform maintenance and potentially extend the part's life.
Brand Quality Tiers

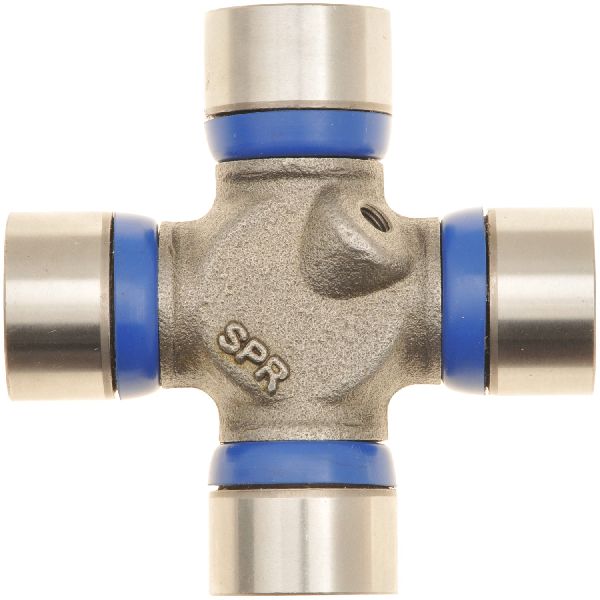

- Premium (OEM-Equivalent): Dana Spicer is widely considered the original equipment manufacturer and the highest quality choice available. Their cold-forged, non-greasable joints are regarded as their strongest and most durable option, ideal for owners who want a fit-and-forget solution.

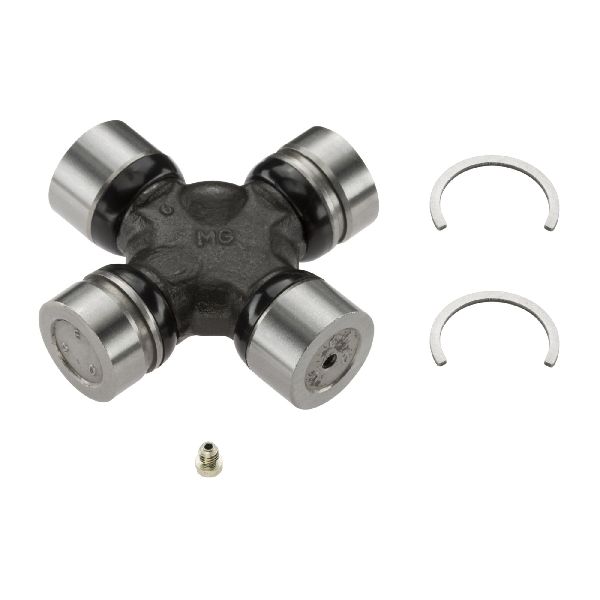

- Quality Aftermarket: Moog and SKF are strong, reliable choices. Moog is well-known for its "problem-solver" designs, which often include greaseable fittings for easy maintenance. SKF, a major bearing manufacturer, also has a strong reputation for quality driveline parts.
- Standard Aftermarket: GMB is a reputable brand that offers a good balance of quality and value for a daily-driven H3T.
Greasable vs. Sealed U-Joints
A greasable U-joint allows you to push new grease in, flushing out old grease, moisture, and dirt. This can prolong its life but requires regular maintenance. A sealed (non-greasable) joint is maintenance-free, just like the original part. High-quality sealed joints, like those from Spicer, are extremely durable and often preferred for heavy-duty or off-road use.
Cost of Replacing a Hummer H3T U-Joint
The total cost will depend on the brand of part you choose and whether you perform the labor yourself. Replacing a U-joint is a moderately difficult job that requires special tools.
| Item | Estimated Cost |
|---|---|
| New Aftermarket U-Joint | $19.18 - $237.75 |
| Shop Labor | $150 - $300 |
| Total Estimated Cost (at a shop) | $170 - $540 |
Frequently Asked Questions
How many U-joints does my 2009-2010 Hummer H3T have?
The Hummer H3T has a total of three universal joints. There are two on the rear driveshaft (one at the transmission/transfer case and one at the rear axle) and one on the front driveshaft at the front axle. The front U-joint is a different size than the two rear joints.
Should I replace all the U-joints at once?
If one U-joint has failed due to age or mileage, the others are likely near the end of their service life as well. While you can replace just the single failed joint, it is often cost-effective from a labor standpoint to replace all three at the same time, especially if the vehicle has high mileage.
Is replacing a U-joint a DIY job?
This can be a difficult DIY job without the right tools. While removing the driveshaft is straightforward, pressing the old joint out of the yoke and pressing the new one in requires either a special U-joint press tool or a very large bench vise and the correct size sockets. Attempting to hammer the new joint in can damage the delicate needle bearings inside the caps.
What happens if a U-joint fails completely?
Complete failure is dangerous. The U-joint will break apart, and the driveshaft can detach from the truck. This will cause an immediate loss of power to the wheels. At speed, the loose driveshaft can swing violently, causing catastrophic damage to the transmission, transfer case, exhaust, and fuel tank, and could cause you to lose control of the vehicle.
Technical Specifications
OEM Part Numbers: 89059111 26008858
The H3T uses two different U-joint sizes. The rear driveshaft uses two identical U-joints, while the front driveshaft uses a different size U-joint at the axle connection. Always verify the correct part for the specific location (front or rear) before purchasing.
