2009-2010 Suzuki Equator A/C Receiver Drier Replacement Guide
If your truck's A/C is blowing warm, the A/C receiver drier might be the reason, especially during other A/C repairs.
- The receiver drier MUST be replaced any time the A/C system is opened for service, like a compressor replacement.
- This is not a DIY job; it requires a professional with equipment to handle A/C refrigerant.
- Symptoms include weak cooling, musty smells, and rattling noises.
- An aftermarket drier from a brand like Global Parts is a cost-effective and reliable choice for this repair.
Is Your Equator's A/C Not Working Like it Used To?
When the air conditioning in your 2009-2010 Suzuki Equator stops blowing cold, many parts could be the cause. One key component that often gets overlooked is the A/C receiver drier. Because the Equator is mechanically identical to the Nissan Frontier, information for the Frontier applies directly to your truck. This part acts as the guardian of your A/C system, and understanding its role is key to a lasting repair.
Symptoms of a Failing A/C Receiver Drier
A bad receiver drier usually doesn't fail on its own. It's often a sign of a bigger problem or it gets clogged with debris from another failing part, like the compressor. Here are the signs to watch for:
- Weak or No Cooling: This is the most common symptom. A clogged drier blocks the flow of refrigerant, so the air from your vents feels warm or only slightly cool.
- Musty or Moldy Smell: When the drier can no longer absorb moisture, mold and mildew can grow inside the A/C system, causing a bad smell when you turn on the fan.
- Rattling Noises: If the desiccant bag inside the drier breaks, the small beads can travel through the system. You might hear a rattling sound from behind the dashboard. This is a serious problem that can destroy your new compressor.
- Frost on A/C Parts: In some cases, a severe clog in the drier can cause a rapid pressure drop, leading to frost or ice forming on the drier itself or the connected A/C lines.
The Mandatory Replacement Rule
You must replace the receiver drier any time the A/C system is opened for service. This includes replacing the compressor, condenser, or hoses. The desiccant inside is extremely sensitive and will become saturated with moisture from the outside air within hours, making it useless. Most warranties for new A/C compressors are void if the receiver drier is not replaced at the same time.
Choosing the Right Aftermarket Part for Your Equator
For the 2009-2010 Equator, you have a choice between original equipment (OEM) and aftermarket parts.
- OEM: The part from the dealer is a guaranteed fit but is also the most expensive option.
- Aftermarket (Global Parts): Brands like Global Parts Distributors (GPD) offer a more affordable solution. GPD is a major supplier of A/C components and designs their parts to meet or exceed original specifications. For a common replacement item like a receiver drier, a quality aftermarket part provides reliable performance at a much lower cost.
Since the receiver drier is a mandatory replacement during most A/C jobs and is considered a maintenance item, a new aftermarket part is the most practical and cost-effective choice for nearly all repairs.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Drier | $25 - $45 |
| New OEM Drier | $114 - $161 |
| Shop Labor (Evacuate & Recharge) | $159 - $233 |
| Total Estimated Cost (Shop) | $272 - $394 |
Frequently Asked Questions
Can I replace the A/C receiver drier myself?
This is not recommended for a DIY project. The job requires special equipment to safely recover the old refrigerant from the system and then recharge it after the new part is installed. This must be done by a certified A/C technician.
Where is the receiver drier located on my Equator?
On the 2009-2010 Suzuki Equator (and Nissan Frontier), the receiver drier is typically attached to the A/C condenser. The condenser looks like a small radiator and is located at the front of the truck, usually in front of the main engine radiator.
Why do I have to replace the drier when I replace my A/C compressor?
When a compressor fails, it often sends tiny metal particles into the A/C system. The receiver drier traps this debris. If you install a new compressor without changing the drier, these particles will circulate and quickly destroy the new compressor. Also, opening the system to replace the compressor exposes the old drier to air, ruining its ability to absorb moisture.
Are there any recalls for the 2009-2010 Equator A/C system?
No. There are no recalls or widespread Technical Service Bulletins (TSBs) from Suzuki or Nissan for A/C receiver drier failure on the 2009-2010 Equator or its Nissan Frontier counterpart.
Technical Specifications

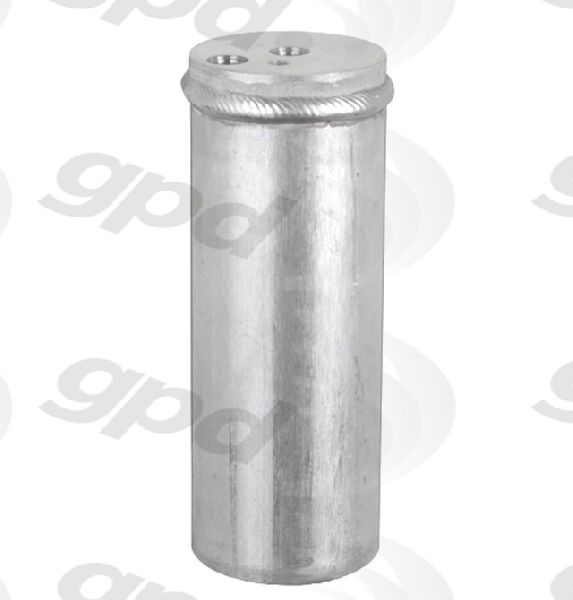

The receiver drier for the 2009-2010 Suzuki Equator is located on the high-pressure side of the A/C system and is typically sold as part of the A/C condenser assembly. It contains a desiccant material to absorb moisture and filter debris from the refrigerant.
