A Guide to the Engine Cooling Fan Module for the 2009-2011 Ford Flex
If your Flex is overheating at idle, the cooling fan module could be the reason why.
- Overheating at idle and warm A/C are the top symptoms of a bad fan module on a 2009-2011 Flex.
- This is a common failure, but there is no specific recall for the fan module on these model years.
- You can often replace just the module instead of the entire fan assembly, which saves money.
- Before buying parts, check fuses and test the fan motors to confirm the module is the problem.
Is Your 2009-2011 Ford Flex Overheating?
A common issue for the 2009-2011 Ford Flex is a faulty engine cooling fan system. When you're stuck in traffic and the temperature gauge starts to climb, a bad cooling fan module is a likely suspect. This part tells the fans when to turn on and how fast to spin. Failure of the module can leave your engine without the airflow it needs to stay cool at low speeds or when stopped.
Symptoms of a Failing Fan Module
Watch for these clear warning signs on your Flex:
- Engine Overheating at Idle: The most common symptom is the engine temperature rising when the vehicle is not moving, but cooling down once you start driving again.
- A/C Blows Warm Air: If your air conditioning works on the highway but blows warm air at a stoplight, it's a strong sign the fans aren't working. The A/C needs airflow over a part called the condenser to get cold.
- Fans Don't Turn On: Pop the hood with the engine warm and the A/C on. If the large fans behind the radiator aren't spinning, the module may have failed.
- Fans Run Constantly: A bad module can also fail in the 'on' position, causing the fans to run continuously even when the engine is cold or off, which can drain your battery.
- Check Engine Light: An overheating engine or an electrical fault in the fan circuit can trigger the check engine light.
Is This a Recall?
There are no active recalls from Ford or the NHTSA for the cooling fan module on the 2009-2011 Ford Flex. While other Ford models have had recalls for similar issues, this specific part on these model years is not covered. Any replacement will be a standard repair.
Choosing the Right Aftermarket Fan Module
For the 2009-2011 Flex, the cooling fan module is mounted directly to the fan shroud. You can buy the module separately or as part of a complete fan assembly. Since the module is a frequent failure point, replacing just the module is often the most cost-effective solution if your fan motors are still good. Here’s a look at the available aftermarket brands.
Brand Quality Tiers
- Premium Aftermarket (Beck Arnley, Gates): Brands like Beck Arnley and Gates have a strong reputation. Beck Arnley is known for sourcing parts that meet or exceed original equipment (OE) quality, often from the same factories that supply Ford. Gates is a trusted name in cooling system components and is generally considered a reliable choice.
- Standard Aftermarket (Dorman): Dorman is one of the most common aftermarket brands available and often provides a direct-fit replacement. While many Dorman parts work well, some professional mechanics report mixed experiences with their long-term durability, sometimes preferring to use other brands to avoid repeat repairs.
Pro Tip: Before buying, confirm if you need just the module or the entire fan assembly. You can test the fan motors by carefully applying 12-volt power directly to them. 🎬 Watch: How to safely test your cooling fan motors. If they spin, you likely only need to replace the control module.
Cost of Replacing the Cooling Fan Module
Here is an estimated cost breakdown for the 2009-2011 Ford Flex. Prices can vary based on your location and supplier.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $425 - $530 |
| New Aftermarket (Module Only) | $40 - $220 |
| New Aftermarket (Full Assembly) | $167.95 - $449.34 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
Can I replace the cooling fan module myself?
Yes, this is a DIY-friendly job for many people. The module is typically held onto the fan shroud with a couple of screws. The main steps involve removing the air intake box for access, unplugging the electrical connector, swapping the module, and reassembling. 🎬 See this quick guide to replacing just the module. The entire fan assembly is also replaceable at home but is a more involved job.
What's the difference between the module and the relay?
A relay is a simple on/off switch. A control module is more complex; it can vary the speed of the fans based on cooling needs. Your Flex uses a module to provide multiple fan speeds for more efficient cooling. While a bad relay can cause issues, the module is the more common failure point for these symptoms.
My mechanic says I need the whole fan assembly. Why?
Sometimes the fan motors themselves fail or develop worn-out bearings. In other cases, the module is permanently attached to the fan assembly on some replacement parts. If your fan motors are noisy, slow, or do not work when tested directly, replacing the entire assembly is the correct repair.
🎬 Watch: Full walkthrough for replacing the entire fan assembly.Are there any other parts I should check?
Yes. Before replacing the module, it's wise to check the basics. Make sure the fuses and relays for the cooling fan circuit are good. Also, ensure your coolant level is correct and that the coolant temperature sensor is working properly, as a bad sensor can also prevent the fans from turning on.
Helpful Videos

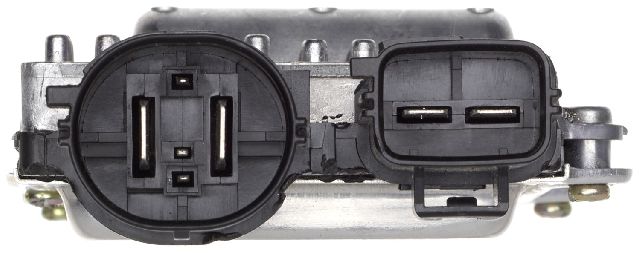

Technical Specifications
OEM Part Numbers: 8A8Z-8C607-C 6W1Z8B658AC 940004107 940004106 940004101
The cooling fan module for the 2009-2011 Ford Flex is an external, variable-speed controller typically mounted to the radiator fan shroud. It uses a pulse-width modulation (PWM) signal to control the speed of the dual fan assembly.
