2009-2012 Suzuki Equator Engine Valve Cover Gasket and Seal Replacement Guide
Addressing the common oil leaks, burning smells, and misfires on your Suzuki Equator's engine.
- For the 4.0L V6, oil in the spark plug wells means you must replace the entire valve cover, not just the gasket, to fix the problem permanently.
- A burning oil smell is the most common early warning sign of a leaking valve cover gasket for both the 4-cylinder and V6 engines.
- When replacing the valve covers on the V6, you must also replace the intake manifold gasket and it is highly recommended to replace the spark plugs.
- The Suzuki Equator uses the same engine parts as the Nissan Frontier, so parts are widely available from quality aftermarket brands like Fel-Pro and Victor Reinz.
Is Your Equator a 4-Cylinder or V6? It Matters.
Before you shop for parts, you must know which engine your 2009-2012 Suzuki Equator has. It came with two options, and the valve cover gasket job is very different for each:
- 2.5L 4-Cylinder (QR25DE): A single, straightforward valve cover and gasket. This is a simpler repair.
- 4.0L V6 (VQ40DE): Two valve covers (one for each cylinder bank). This engine has a well-known design issue that often requires more than just replacing the gaskets.
Symptoms of a Leaking Valve Cover Gasket
When the valve cover gasket fails, the signs are hard to miss. The leak usually starts small but will get worse over time.
- Burning Oil Smell: This is often the first symptom. Oil drips from the leaking gasket onto the hot exhaust manifold, where it burns off, creating a distinct smell that can get into the truck's cabin.
- Visible Oil Leaks: You may see oily grime and dirt caked onto the side of the engine, right below the plastic valve cover. In more severe cases, you might see small puddles of oil on the ground.
- Low Engine Oil: A significant leak will cause your oil level to drop between changes, requiring you to top it off frequently.
Special Warning for 4.0L V6 Owners: The Spark Plug Tube Seal Problem
The biggest issue with the 4.0L V6 engine is not the main valve cover gasket, but the spark plug tube seals. These seals are built into the plastic valve cover from the factory and are not designed to be replaced separately. Over time, engine heat makes these seals hard and brittle, allowing oil to leak directly into the spark plug tubes. This leads to more serious symptoms:
- Oil in Spark Plug Wells: When you pull an ignition coil out, you will find the tube and the top of the spark plug covered in engine oil.
- Engine Misfires & Check Engine Light: The oil in the tubes floods the spark plug and can ruin the ignition coil, causing the engine to misfire. This results in a rough idle, hesitation when accelerating, and will trigger the Check Engine Light 🎬 Watch: How a valve cover leak causes engine misfires with codes like P0300 (random misfire) or P0301-P0306 (for specific cylinders).
Because the spark plug tube seals are integrated, the most reliable fix for an oil leak into the spark plug wells on the 4.0L V6 is to replace the entire valve cover assembly, not just the gasket set.
Choosing the Right Aftermarket Part
Since the Suzuki Equator shares its engine with the Nissan Frontier, you have access to a wide range of quality aftermarket parts. Here’s a breakdown of trusted brands.
Premium Aftermarket (OEM Quality)
- Fel-Pro: A leader in aftermarket gaskets, Fel-Pro is known for engineering parts specifically for the repair environment. Their gaskets are often designed to help seal imperfect surfaces that can occur on older, high-mileage engines.
- Victor Reinz / Mahle: These are often OEM suppliers for European brands and are highly regarded for their quality. Users often note their gaskets feel pliable and well-made. Mahle and Victor Reinz are part of the same company.

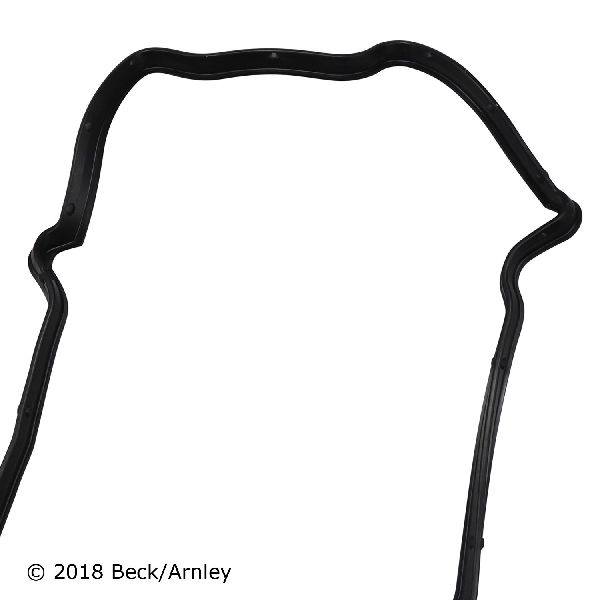

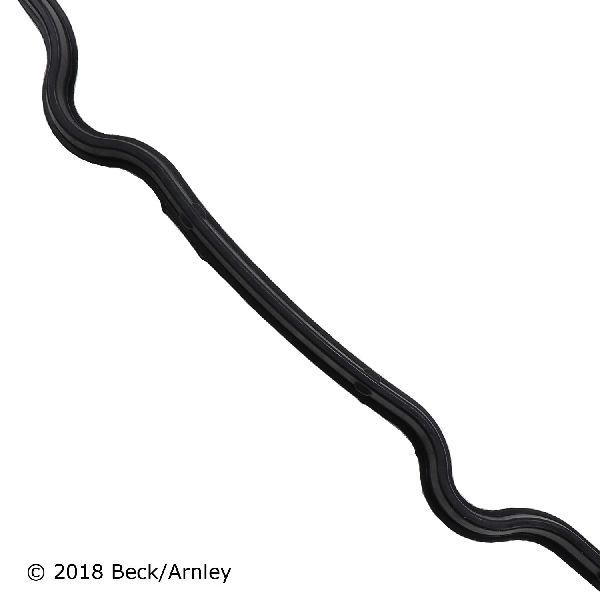

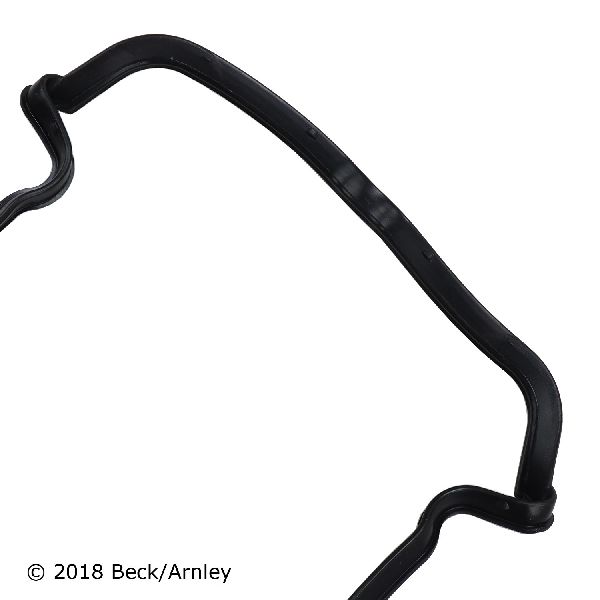

- Beck Arnley: This brand is known for sourcing parts that match OEM fit and function, often re-packaging parts from the original manufacturers.
Standard Aftermarket

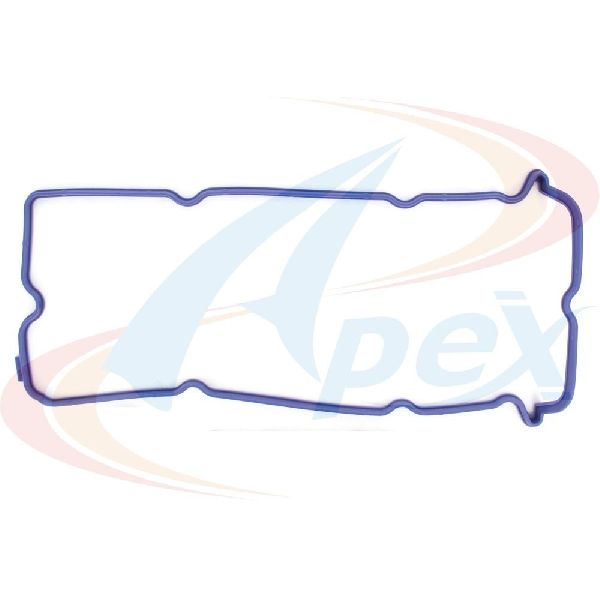

- Apex: Generally considered a budget-friendly option. While some professional technicians prefer premium brands, Apex can be a suitable choice for less critical applications or when budget is the primary concern.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $15 - $53 |
| New Aftermarket Valve Cover (V6, includes gaskets) | $40 - $100 per side |
| New OEM Valve Cover (V6, includes gaskets) | $100 - $200+ per side |
| Shop Labor (4-Cylinder) | $100 - $200 |
| Shop Labor (V6) | $350 - $600+ |
Cost estimates are approximate and may vary based on location and vehicle condition. The V6 labor cost is higher because the intake manifold must be removed.
Frequently Asked Questions
For the V6, do I have to replace the whole valve cover?
If you have oil leaking into your spark plug tubes, yes. The original seals are part of the cover and cannot be replaced separately. 🎬 Watch: How to diagnose and fix leaking spark plug tube seals Replacing only the outer gasket will not fix this specific leak and you will continue to have misfires. For a permanent repair, replacing the entire valve cover is the correct procedure.
Are there any recalls for this issue?
No, there are no official recalls from Suzuki or NHTSA for failing valve cover gaskets on the 2009-2012 Equator. There was a recall for an engine oil cooler bolt that could break and cause an oil leak (NHTSA Campaign ID: 11V593000), but this is a separate issue.
What else should I replace at the same time?
When replacing the valve cover gaskets, especially on the V6, it's a perfect time to do other maintenance. Consider replacing the spark plugs (since you're already there) and the ignition coils if they are oil-soaked. For the V6, you MUST also replace the upper intake manifold gasket (plenum gasket) as the manifold has to be removed for the job. 🎬 See this step-by-step V6 valve cover and intake manifold walkthrough It's also a good idea to install a new PCV valve.
Is this a difficult DIY job?
For the 2.5L 4-cylinder, it is a relatively easy DIY job for someone with basic tools. For the 4.0L V6, it is much more difficult (rated 4 out of 5) because it requires removing the upper intake manifold. While it is DIY-feasible for an experienced mechanic, it can be challenging for a beginner.
Helpful Videos
Technical Specifications
OEM Part Numbers: 13270-EA20C 13270-EA20A 13270-EA20B
The 2009-2012 Suzuki Equator was available with two engines: a 2.5L 4-cylinder (QR25DE) or a 4.0L V6 (VQ40DE). The V6 model features two valve covers made of composite plastic with integrated, non-serviceable spark plug tube seals. The V6 right-side valve cover gasket is Nissan part number 13270-EA20C, which supersedes 13270-EA20A and 13270-EA20B.
