Engine Oil Pan Guide for the 2009-2013 Chevrolet Camaro
Leaking oil or seeing spots on your driveway? Your Camaro's oil pan might be the problem.
- Oil leaks from the pan gasket are a known issue, especially on early V8 models.
- Replacement is a difficult job requiring the engine to be lifted and subframe lowered, making professional installation highly recommended.
- Always confirm if you need a pan for a V6 or V8 engine, as they are not interchangeable.
- Due to the high labor cost, it is often wise to replace the entire pan assembly rather than just the gasket to ensure a lasting repair.
Is Your Camaro's Oil Pan Failing?
The oil pan is tough, but it's in a vulnerable spot. Road debris, improper jacking, or just age can cause problems. The most common issue is a simple oil leak, which can start small but lead to big trouble. For early 5th generation V8 models, oil pan leaks were a known issue, sometimes requiring the pan and gasket to be replaced.
Known Issues for 2009-2013 Camaros
Owners have reported oil leaks from the oil pan gasket on V8 models. In some early production vehicles, this was a known problem that sometimes required replacing the entire oil pan, not just the gasket, to get a proper seal. Another potential source of leaks can be the oil cooler or its gaskets, which are located near the pan and can be mistaken for a pan leak. There is also a Technical Service Bulletin (TSB) related to low oil pressure that could be caused by a sticking oil pump pressure relief valve, which involves cleaning the oil pan as part of the diagnostic and repair process.
Choosing the Right Aftermarket Oil Pan
When your original oil pan is damaged or leaking, you have choices. An OEM (Original Equipment Manufacturer) pan from GM is a guaranteed fit, but it's often the most expensive option. Aftermarket parts offer a more affordable solution without sacrificing quality for a part like this.

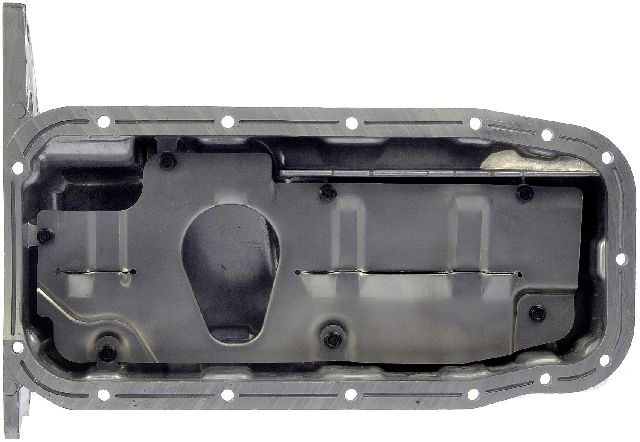

- Dorman: A well-known aftermarket brand, Dorman offers direct replacement oil pans. They are known for providing OE-like quality and sometimes include improvements over the original design. Their pans often come with a high-strength coating to prevent corrosion.
- Spectra Premium: Another major player in the aftermarket, Spectra also produces replacement oil pans. Quality is generally considered comparable to other major aftermarket brands, and they are a reliable choice for daily drivers.
Pro-Tip: The 2009-2013 Camaro used different engines (V6 and V8), which use different oil pans. Always verify the part fits your specific engine before ordering. The V8 pan is different from the V6 pan.
Cost to Replace a Camaro Oil Pan
Replacing the oil pan on a 5th-gen Camaro can be a big job. The front subframe often needs to be lowered to get the pan out, especially on V8 models. This makes the labor cost a significant part of the total price.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $327.05 - $584.90 |
| Shop Labor | $300 - $600+ |
| Total Estimated Cost | $627.05 - $1184.90+ |
Frequently Asked Questions
Can I replace the oil pan myself?
This is a challenging job for a DIY mechanic. It requires lifting the engine and lowering the front subframe. It is recommended for experienced mechanics with the proper tools, like an engine hoist and jack stands. For most owners, professional installation is the safer bet.
Should I replace the gasket or the whole pan?
If the leak is from a failed gasket and the pan is in good condition (no cracks, dents, or stripped threads), you might only need a new gasket. However, given the significant labor involved, and the fact that early V8 models had issues with the pan's sealing surface, replacing the entire pan assembly is often the most reliable long-term repair.
What are signs of a stripped oil drain plug?
If the drain plug won't tighten, spins continuously, or leaks oil right after an oil change, the threads in the aluminum pan are likely stripped. This is a very common reason for replacing the entire oil pan.
What else should be replaced with the oil pan?
Anytime you replace the oil pan, you must also replace the oil pan gasket and the engine oil. It's also a good time to inspect the oil pump pickup tube and O-ring for any debris or damage.
Technical Specifications
OEM Part Numbers: 12640748 12628771 12657494 12711496 12666372
Material: Aluminum. Gasket and drain plug may or may not be included depending on the brand. Different pans are required for V6 and V8 (LS3/L99) engines.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
