Throttle Position Sensor Guide for the 2009-2014 Chevrolet Express 1500
Fixing reduced engine power and rough running in your Chevy Express van starts here.
- The 'Reduced Engine Power' message is the most common symptom of a bad TPS on these vans.
- For the 2009-2014 Express, the sensor is a separate part; you do NOT need to replace the entire throttle body assembly.
- A 'relearn' procedure is needed after replacement and can be done without special tools by idling the engine.
- GM acknowledged this common failure with a Special Coverage Adjustment (TSB 11273), so using a quality aftermarket brand is important for a lasting repair.
Is Your Express Van in 'Reduced Engine Power' Mode?
One of the most common and frustrating problems for 2009-2014 Chevrolet Express 1500 owners is when the dashboard suddenly shows a "Reduced Engine Power" message. This safety mode, often called "limp mode," severely limits your van's speed and acceleration. More often than not, the cause is a failing Throttle Position Sensor (TPS). This issue was so common that General Motors issued a Special Coverage Adjustment (Bulletin 11273) for the TPS on many of these vans, extending the warranty to 10 years or 120,000 miles. While that coverage may be expired, it confirms this is a known weak point.
Symptoms of a Failing Throttle Position Sensor
A bad TPS doesn't just cause limp mode. Look out for these other warning signs:
- Check Engine Light: A failing TPS will almost always trigger the check engine light. The most common code is P2135, which points to a mismatch in the sensor's internal signals. 🎬 Watch this video to understand and fix the P2135 correlation code.
- Rough or Unstable Idle: Your van might idle too high, too low, or surge up and down when you're stopped.
- Hesitation and Surging: When you press the gas, the van might hesitate, stumble, or surge unexpectedly.
- Poor Shifting: The automatic transmission may shift harshly, late, or at the wrong times because it's getting bad information from the TPS.
- Stalling: The engine may stall when you come to a stop or when idling.
Pro Tip: It's the Sensor, Not the Whole Throttle Body
Many modern vehicles integrate the TPS into the entire throttle body assembly, forcing you to buy a very expensive part. Luckily, on the 2009-2014 Express 1500, the TPS is a separate part that can be unclipped and replaced. You do not need to buy a complete throttle body if only the sensor has failed.
Choosing the Right Aftermarket Throttle Position Sensor
When your original sensor fails, you have several aftermarket options. Here’s how they generally stack up in terms of quality and reliability for your Express van.
- Tier 1 (OEM Equivalent): Brands like ACDelco (specifically the 'GM Original Equipment' line) and NGK/NTK are top choices. They are manufactured to meet or exceed the original factory standards. Choosing one of these brands gives you the highest confidence that you won't have to do the job again in six months.
- Tier 2 (Quality Aftermarket): Brands like Standard Ignition (SMP) and Motorad are well-known in the aftermarket world. They offer a good balance of price and quality and are a reliable choice for a vehicle of this age. They often provide a solid repair without the premium price of an OEM-branded part.
- Tier 3 (Budget-Friendly): Brands like Global Parts and other store brands are the most affordable. While tempting, be aware that the quality control might not be as strict. For a sensor this critical to your van's performance and safety, spending a little more for a Tier 1 or Tier 2 brand is strongly recommended to avoid repeat failures.
A Note on Quality
The P2135 code is specifically for a "correlation" error, meaning the two internal sensors inside the TPS don't agree. This is often a sign of poor internal components. Low-quality aftermarket sensors are more likely to develop this problem sooner. Investing in a better brand is a wise choice.
Typical Costs for Throttle Position Sensor Replacement
| Item | Estimated Cost |
|---|---|
| New Aftermarket Throttle Position Sensor | $67.73 - $151.82 |
| Shop Labor | $95 - $165 |
| Total Estimated Cost (Installed) | $162 - $317 |
Frequently Asked Questions
Do I need to perform a 'relearn' procedure after replacing the TPS?
Yes, a relearn procedure is highly recommended to make sure your van idles correctly. While some vans will learn on their own over time, you can speed up the process. A common method is to start the engine and let it idle in Park for 3 minutes, turn it off for 60 seconds, and then repeat the cycle. No special tools are needed for this.
Should I clean my throttle body during the replacement?
Absolutely. The official GM service bulletin for this issue recommends cleaning the throttle body bore and plate with a quality throttle body cleaner and a rag. Carbon buildup can cause idling issues, and since you'll have everything apart, it's the perfect time to do it.
🎬 See how to clean the throttle body while replacing the sensor.Is this different from the Accelerator Pedal Position (APP) sensor?
Yes. The TPS is on the engine's throttle body, while the APP sensor is part of your gas pedal assembly inside the cab. Both work together, but they are separate parts. A P2135 code almost always points to the TPS on the throttle body, not the pedal sensor.
Can I replace the TPS myself?
Yes, this is a very DIY-friendly job for someone with basic tools. You will need to remove the air intake tube to get access. The sensor itself is held on by clips. The most difficult part is reaching the clips on the back side of the throttle body, but it can be done in about an hour.

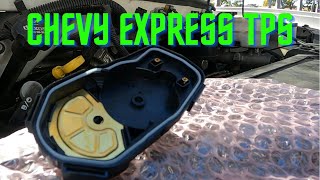

🎬 Watch this step-by-step guide to replacing your Express van's TPS.Helpful Videos
Technical Specifications
OEM Part Numbers: 19259452
This is an electronic sensor that clips onto the side of the throttle body. It contains two internal potentiometers that provide a correlated voltage signal to the ECM. The part is specific to the V6 and V8 engines used in this generation.
