Guide to the 2009-2015 Chevrolet Camaro Engine Timing Set
Understanding the critical timing chain issues in your V6 or V8 Camaro.
- The 3.6L V6 engines (2010-2015) are highly prone to premature timing chain stretching.
- A rattling noise on startup and Check Engine Light codes P0008/P0009 are the most common symptoms.
- This is a complex and expensive repair; it is not a DIY job for beginners.
- Using a quality aftermarket kit from a brand like Melling or Cloyes is often recommended over OEM for the V6.
Is Your Camaro's Engine Making a Rattling Noise?
If you own a 2009-2015 Camaro, especially one with the 3.6L V6 engine (engine codes LLT and LFX), you need to pay close attention to the engine's timing components. These engines are known for premature timing chain wear. The V8 engines (LS3 and L99) are generally more robust in this area but are not completely immune to wear over many miles.
Known Issues with 3.6L V6 Engines
A major issue for the 2010-2012 Camaro V6 is premature stretching of the primary timing chains. This condition became so common that General Motors issued a Technical Service Bulletin (TSB #12-06-01-009F) acknowledging the problem. The issue often triggers Check Engine Light codes like P0008, P0009, P0016, and P0017. While GM created a special coverage program for some vehicles with this engine, the Camaro was often excluded, leaving many owners to cover the expensive repair costs themselves.
Choosing the Right Aftermarket Timing Set
When it's time for a replacement, you have several aftermarket options. Given the known issues with the original V6 components, choosing a quality aftermarket kit is often a better choice than using another OEM set that could fail again. Aftermarket brands have often redesigned parts to be more durable than the originals.
Brand Quality Tiers

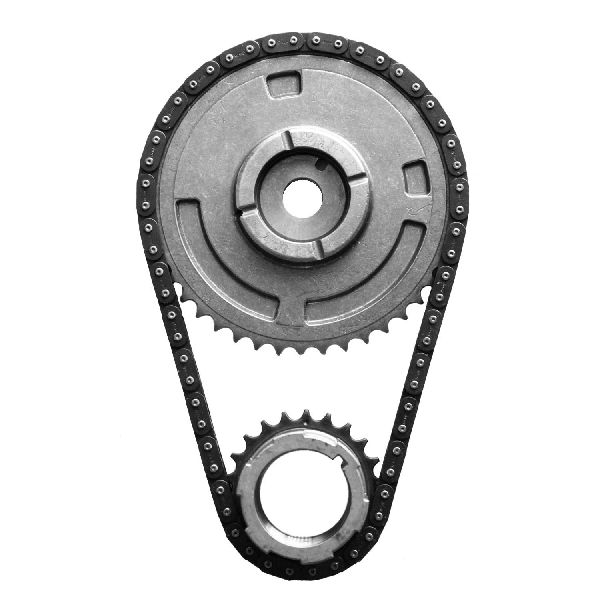

- Good (OEM-Quality Replacement): INA is a brand known for supplying original equipment parts to many manufacturers. An INA kit provides a reliable, stock-level replacement suitable for a daily driven vehicle. Their components are widely considered to be of good quality.

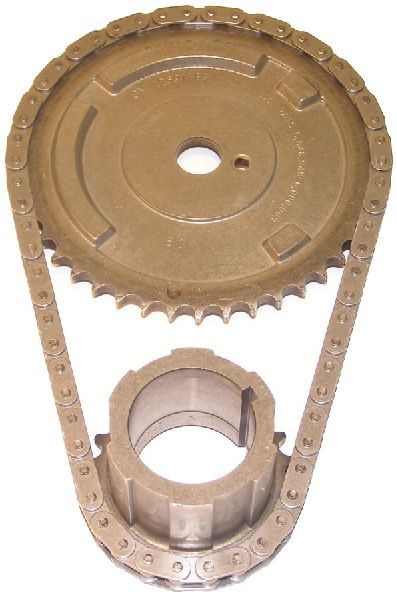

- Better (Heavy-Duty): Brands like Melling and Cloyes are staples in the aftermarket and are well-regarded by mechanics. They often offer kits with improved designs, such as better tensioners or stronger chain guides, to address the original factory weaknesses. Many Camaro owners on forums report using Cloyes or Melling kits with good results. 🎬 Watch a mechanic replace the timing chain on an LFX engine.
- Best (High-Performance): For modified V8 engines or for owners seeking maximum durability, Edelbrock offers high-performance timing sets. These kits are built from superior materials like billet steel and are designed for high-RPM, high-stress applications. They are often overkill for a stock V6 but provide ultimate peace of mind for a built LS3 or L99 engine.
Pro Tip: Replace It All
A timing set replacement is a labor-intensive job. While you're in there, it is highly recommended to replace all related components. This includes not just the chains, but also the tensioners, guides, and sprockets. Many mechanics also suggest replacing the water pump and oil pump at the same time, as they are accessed during the teardown. This saves you from paying for the same labor twice down the road.
Cost to Replace a Camaro Timing Set
| Category | Estimated Cost |
|---|---|
| New Aftermarket Timing Set (Parts Only) | $76.53 - $350.18 |
| Shop Labor | $1,050 - $1,550 |
| Total Professional Replacement | $1,125 - $1,900+ |
Note: Costs are estimates. Prices for parts and labor vary by location and the specific parts chosen. V6 replacement is typically more expensive due to complexity.
Frequently Asked Questions
Was there a recall for the Camaro timing chain?
No, there was no official safety recall issued by the NHTSA for timing chain failure on the 2009-2015 Camaro. GM did issue Technical Service Bulletins (TSBs) and extended some warranties for other models with the same engine, but Camaros were often not included.
Is an aftermarket timing set better than the OEM one for my V6 Camaro?
For the 3.6L V6 engine, a quality aftermarket kit from a brand like Melling or Cloyes is often considered an upgrade. These companies had the opportunity to see the OEM parts fail and improve the design for better longevity. For the V8 engines, the OEM parts are generally robust, but a high-quality aftermarket set can still offer added strength, especially for high-mileage or modified cars.
Can I replace the timing set myself?
This is a very advanced and difficult job. It requires significant disassembly of the engine front, special tools to lock the camshafts and crankshaft in place, and precise work to ensure the new chains are timed correctly. An error can destroy the engine. For most owners, this job is not a feasible DIY project and should be left to a professional mechanic.
🎬 Watch this full-length removal and install guide for the 3.6L V6.What are the timing chain codes P0008 and P0009?
These are generic OBD-II codes that mean the Engine Control Module (ECM) has detected a misalignment between the crankshaft and the camshafts. On the GM 3.6L V6, these codes almost always point to stretched timing chains. P0008 refers to an issue on Bank 1 (the side with cylinder #1), while P0009 refers to Bank 2.

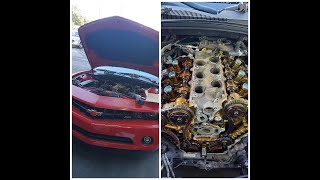

🎬 See how to diagnose and fix P0008 and P0017 codes.Helpful Videos
Technical Specifications
Kits typically include primary and secondary timing chains, crankshaft and camshaft sprockets, tensioners, and guides. V6 models use a more complex system with three chains. V8 models use a single, more robust chain.
