Ford Expedition Door Window Switch Guide (2009-2015)
Having trouble with your 2009-2015 Expedition windows? Here’s what you need to know before replacing the switch.
- Before buying, always check that the window lock button isn't the cause of the problem.
- On the 2009-2015 Expedition, the entire door panel must be removed to replace the driver's master switch.
- A window that goes down but not up is a classic sign of a worn-out switch.
- Aftermarket brands like Standard Ignition and Dorman offer reliable, cost-effective alternatives to the more expensive Motorcraft OEM part.
Is Your Expedition's Window Switch Really Broken?
Before you spend money on a new part, let's make sure the switch is the problem. This is a common part to fail, but sometimes other issues can seem like a bad switch.
- Check the Window Lock Button: It sounds simple, but the window lock button on the driver's master switch is easy to press by accident. If your passenger windows aren't working, check this first.
- Try All Switches: Can you operate a window from its own door switch but not the master panel? Or does only the master panel work? This helps pinpoint if the problem is the master switch, an individual switch, or wiring in between.
- Check the Fuses: Your Expedition has fuses and possibly a circuit breaker for the power windows. These are located in the fuse panel inside the passenger cabin. If multiple windows stop working at once, a blown fuse is a likely cause.
- Listen for the Motor: When you press the switch, do you hear a click or a humming sound from inside the door? If you hear the window motor trying to work, the problem is likely the window regulator (the mechanism that lifts the glass), not the switch. If you hear nothing, the switch or wiring is the primary suspect. 🎬 Watch: This quick test helps confirm if your window is stuck.
No Recalls for Your Year Range
Ford issued a recall (NHTSA Campaign Number 18V058) for window control modules on some 2018 Expedition models. This recall does not apply to the 2009-2015 generation. No major recalls or Technical Service Bulletins (TSBs) are active for the window switches on 2009-2015 Expeditions.
Common Failure Symptoms
- One or more buttons don't work: You might lose control of a single window from the master switch.
- Window goes down but not up: The contacts for the 'up' function often wear out first because lifting the heavy window glass draws more electrical current.
- Intermittent operation: The switch works some of the time, requiring multiple presses to get a response.
- No backlighting: The small lights behind the switch buttons burn out, making them hard to see at night.
Choosing the Right Aftermarket Switch
For the 2009-2015 Expedition, you have a few good options when it comes to replacing your window switch. You don't always need to pay dealership prices for the OEM part.
| Brand Tier | Brands | Quality & Price Assessment |
|---|---|---|
| OEM (Original) | Motorcraft | This is the original factory part. It guarantees perfect fit, function, and finish, but comes at the highest cost. If the original switch lasted over a decade, a new Motorcraft part should do the same. |
| Premium Aftermarket | Standard Ignition (SMP) | Standard is a well-respected brand that produces high-quality switches that meet or exceed OE specifications. They are a reliable choice that offers a good balance of quality and price, often with a solid warranty. |
| Standard Aftermarket | Dorman | Dorman is one of the most common aftermarket brands available. They provide a cost-effective solution that is popular with DIY mechanics. While quality is generally considered good for the price, it's a tier below OEM, but often comes with a lifetime warranty which adds value. |
A Note on Installation
Unlike some older vehicles where you can simply pry the switch panel out, on the 2009-2015 Expedition, you must remove the entire interior door panel to access and replace the master window switch. This involves removing several screws and carefully releasing plastic clips. While it is a straightforward DIY job, it requires trim removal tools to avoid scratching your door panel.
🎬 See how to safely remove the door panel for switch access.Frequently Asked Questions
Do I need to disconnect the battery to replace the window switch?
Yes, it is always recommended to disconnect the negative battery terminal before working on any electrical components in your vehicle. This prevents accidental short circuits that could damage the new switch or other parts of your Expedition's electrical system.
My new switch is installed, but the 'auto up/down' doesn't work. Is it defective?
No, it likely just needs to be re-initialized. After power is disconnected, the system can lose its memory for the window's position. To fix this, roll the window all the way down and hold the button for 5 seconds. Then, roll it all the way up and hold the button for 5 seconds. This usually resets the auto-feature.
🎬 Watch this video to see the auto-up relearn procedure in action.Can I replace just the one broken button on my master switch?
No. The master switch is sold as a single, sealed module. While it is technically possible to take the unit apart and repair internal contacts, it is not recommended. The most reliable and effective repair is to replace the entire switch assembly.
Why do only the passenger windows work from the driver's switch, but not the driver's window?
This is a classic symptom of a failed master switch. The internal contacts and circuitry for the driver's own window button have likely worn out. Since the other buttons have their own separate contacts within the module, they can continue to function properly.
Helpful Videos
Technical Specifications

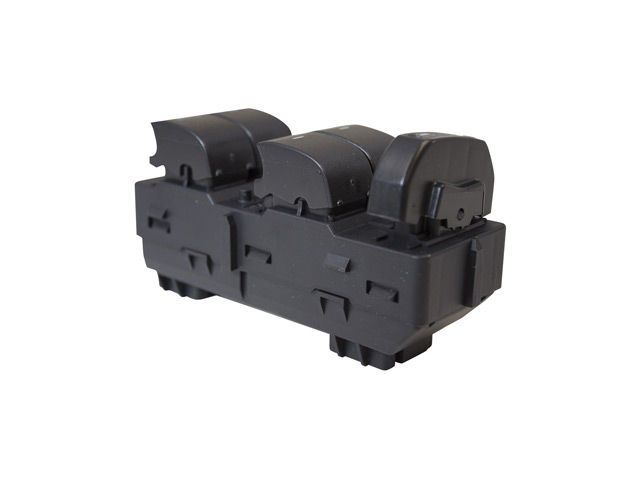

OEM Part Numbers: 9L1Z-14529-AD 9L1Z-14529-A
Fits driver's door. Controls all four power windows, power mirrors, and window lock. Illumination color is typically green to match factory lighting.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
