Choosing the Right Fuel Injector for Your 2009-2015 Ford Expedition
Understand the key differences in fuel injectors for your Expedition before you buy.
- Verify your engine: 2009-2014 models use a 5.4L V8, while 2015 models use a 3.5L V6. The injectors are not interchangeable.
- Replace injectors in a full set to ensure balanced engine performance and avoid repeat repairs.
- A strong fuel smell is a serious symptom indicating a leak and a potential fire hazard. Do not drive the vehicle.
- For reliability, choose OEM (Motorcraft) or premium aftermarket brands like Bosch.
Engine Differences Matter
When shopping for fuel injectors for a 2009-2015 Ford Expedition, the single most important factor is the engine. Ford made a significant change during this period.
- 2009-2014 Models: These Expeditions are equipped with the 5.4L Triton V8 engine, which uses a standard Port Fuel Injection (PFI) system.

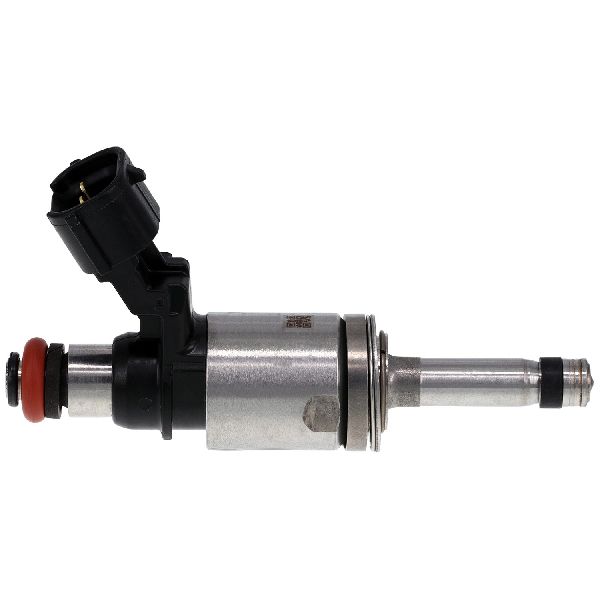

- 2015 Models: This model year saw the introduction of the 3.5L EcoBoost V6 engine, which features a high-pressure Direct Injection (DI) system.
The fuel injectors for the 5.4L V8 and the 3.5L V6 are not interchangeable. Ordering the wrong part is a common and costly mistake. Always verify your engine type before purchasing.
Symptoms of a Failing Fuel Injector
A bad fuel injector can cause a range of problems, from annoying to severe. Because injectors can fail by getting clogged, stuck open, or stuck closed, symptoms can vary.
- Rough Idle and Misfires: The engine may shake or vibrate at a stop. A misfire code, such as P0300 (random misfire) or P0301-P0308 (for a specific cylinder), is a very common sign. 🎬 Watch: Diagnosing a cylinder misfire caused by a bad injector.
- Poor Fuel Economy: If an injector is stuck open or leaking, it dumps excess fuel into the cylinder, wasting gas.
- Loss of Power: The engine may feel sluggish or hesitate during acceleration because it isn't getting the right amount of fuel.
- Fuel Smell: A strong smell of raw gasoline around the engine bay can indicate an injector is leaking externally or internally. This is a fire hazard and should be addressed immediately.
- Hard Starting: An engine may struggle to start if injectors are clogged or not providing enough fuel.
- Black Smoke from Exhaust: This can happen if an injector is stuck open, causing a very rich fuel condition. 🎬 Watch: How a stuck open injector causes extremely rich conditions.
OEM vs. Aftermarket: Choosing Your Replacement
When it's time to replace one or more injectors, you have several options. The choice often comes down to budget and desired quality.
Pro Tip: Replace in Sets
Even if only one injector has failed, it is highly recommended to replace all injectors on that engine bank (4 injectors) or all 8 (on a V8) or 6 (on a V6) at the same time. Injectors wear at a similar rate. Replacing them all at once ensures they are flow-matched, providing balanced performance and preventing you from having to do the same job again in a few months when the next original injector fails.
Brand Quality Tiers

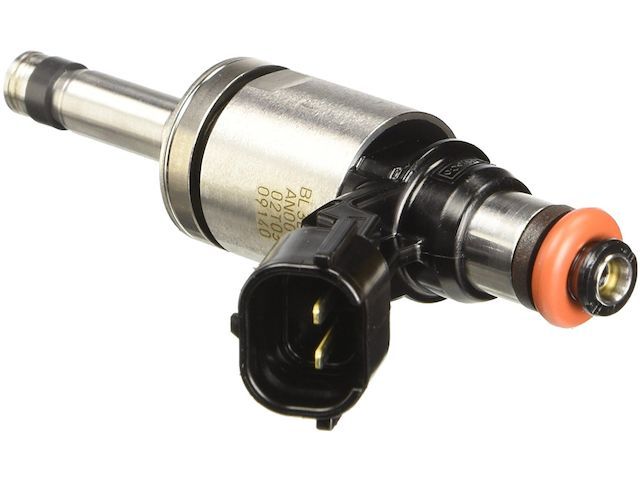

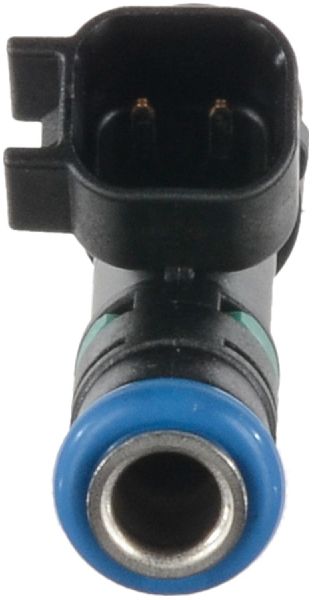

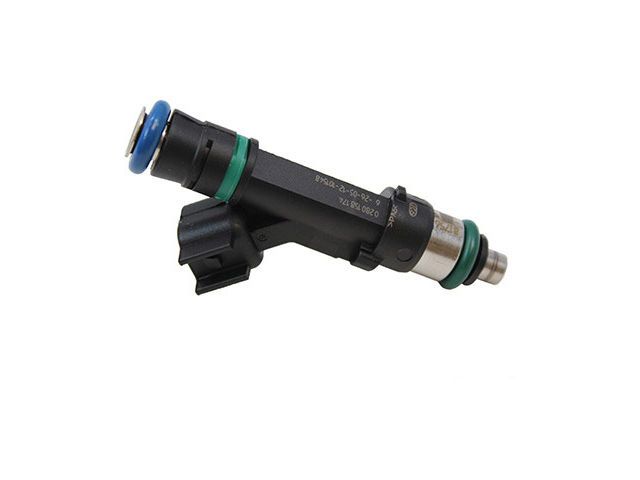

- Tier 1 (OEM & Premium Aftermarket): Motorcraft is the original Ford part and the benchmark for quality and fit. Bosch is a well-respected OEM supplier for many brands and is often considered equivalent to Motorcraft in quality, sometimes at a lower price. These brands provide the best guarantee of original performance and longevity.
- Tier 2 (Established Aftermarket): Brands like Standard Ignition (SMP) and Walker Products are established names in the aftermarket. They aim to meet or exceed OE specifications and are a solid choice for a balance of cost and quality. However, quality can sometimes be inconsistent, with occasional reports of parts failing out of the box.
- Tier 3 (Value Brands): GBR Fuel Injection and other lower-cost options offer significant savings. While they can be a good budget solution, their long-term durability and performance consistency may not match the higher-tiered brands.
Known Issues and Recalls
While no widespread recalls for fuel injectors on the 2009-2015 Expedition were found through NHTSA, Ford did issue a customer satisfaction program (07M08) for some 2005 models with the 5.4L 3V engine for injectors sticking. Owners of 2009-2014 models with the same engine family have reported similar issues of injectors sticking open or closed. For the 2015 3.5L EcoBoost, carbon buildup on the intake valves is a known issue with direct injection engines, which can sometimes be misdiagnosed as an injector problem.
| Part Type | 2009-2014 (5.4L V8) | 2015 (3.5L V6) |
|---|---|---|
| New OEM (Motorcraft) | $80 - $150 | $110 - $180 |
| New Aftermarket | $45 - $140 | $50 - $130 |
| Shop Labor (per bank) | $250 - $450 | $400 - $600 |
Frequently Asked Questions (FAQ)
Can I replace just one fuel injector?
You can, but it's not recommended. Fuel injectors wear out over time, and if one has failed, others are likely not far behind. Replacing them as a set ensures all cylinders receive the same amount of fuel, leading to a smoother running engine and preventing future repairs.
How difficult is it to replace the fuel injectors myself?
For the 2009-2014 5.4L V8, it is a moderately difficult DIY job that takes 2-4 hours. It requires relieving fuel pressure and removing the fuel rail. For the 2015 3.5L EcoBoost, the job is more complex due to the high-pressure direct injection system and can take 4-6 hours. Special tools may be required, and because of the high pressures involved, it is often best left to a professional if you are not experienced.
🎬 See this walkthrough for replacing 3.5L EcoBoost fuel injectors.Do I need to program new fuel injectors?
For the 2009-2014 5.4L PFI injectors, no programming is needed. For the 2015 3.5L DI injectors, some systems require the new injector's flow rate data to be programmed into the engine computer (ECU) for precise fuel control. It is best to check the service manual for your specific vehicle.
What are the symptoms of a leaking injector vs. a clogged one?
A leaking or stuck-open injector will cause a rich condition, leading to poor fuel economy, a strong fuel smell, and possibly black smoke. A clogged or stuck-closed injector causes a lean condition, resulting in misfires, rough idle, and loss of power.
Helpful Videos
Technical Specifications
OEM Part Numbers: BL3Z9F593B CM5211
For 2009-2014 models, a Port Fuel Injection (PFI) type is required. For 2015 models, a Gasoline Direct Injection (GDI) type is required. Always confirm fitment with your vehicle's VIN and engine size.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
