Guide to the 2009-2016 BMW 528i xDrive Ambient Air Temperature Sensor
Seeing the wrong temperature on your dash or having A/C problems? Your ambient air temperature sensor is a likely cause.
- A bad sensor will cause an incorrect temperature reading on the dash and can disable your automatic A/C.
- The sensor is located in the front bumper area, making it vulnerable to damage but also relatively easy to access for replacement.
- Before replacing the sensor, check the wiring for damage, as a broken wire can cause the same symptoms.
- Quality aftermarket brands like Dorman, Standard Ignition, and URO Parts are cost-effective alternatives to the OEM part for this repair.
Symptoms of a Failing Ambient Air Temperature Sensor
Because this sensor is located in the front of the vehicle, it's exposed to road debris, moisture, and minor impacts, which can cause it to fail or its wiring to get damaged. When it starts to go bad, you'll likely notice one or more of these symptoms:
- Incorrect Temperature Display: The most obvious sign is the temperature shown on your dashboard being wildly incorrect. It might read -40°F on a warm day or jump around erratically.
- Automatic A/C and Heater Problems: The automatic climate control system relies on the outside temperature reading to decide how to cool or heat the cabin. If the sensor is telling the car it's freezing outside, the A/C compressor may not turn on.
- Check Engine Light: A failed sensor can trigger a Check Engine Light. You may see diagnostic trouble codes (DTCs) such as P0070, P0071, P0072, P0073, or P0074 when you scan the vehicle's computer. 🎬 Watch: How to test and identify a bad sensor
Choosing the Right Aftermarket Sensor
For a simple sensor like this, you don't necessarily need to buy the expensive OEM (Original Equipment Manufacturer) part from a BMW dealer. Several reputable aftermarket brands offer quality replacements that provide good value. Your main choices are:
- Dorman: A well-known aftermarket brand that often provides a good balance of quality and price. Some Dorman kits even come with a new connector and wiring, which is helpful if your original plug is corroded or the wires are broken.
- Standard Ignition (SMP): A long-standing brand in the automotive aftermarket, generally considered a reliable choice for electronic components.
- URO Parts: URO is known for offering affordable European car parts. While some complex URO parts have mixed reviews, a simple sensor like this is often a safe and budget-friendly choice.
Pro Tip: Before you buy a new sensor, inspect the wiring and connector. Sometimes the sensor itself is fine, but the wires have been damaged by road debris or even rodents. A reading of -40 degrees often points to a broken wire or unplugged sensor.
🎬 See how to fix common -40 degree reading errorsCost of Replacement
Replacing the ambient air temperature sensor is an affordable repair. The parts are inexpensive, and if you have some basic tools, you can do it yourself in under an hour.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $19 - $58 |
| New OEM Sensor | $55 - $75 |
| Shop Labor | $60 - $120 |
Frequently Asked Questions
Where is the ambient air temperature sensor located on my 528i xDrive?
The location depends on the generation. For the F10 chassis (2012-2016), the sensor is typically found in the front passenger-side brake cooling duct in the lower bumper. For the earlier E60 chassis (2009-2010), it's usually located behind the lower front bumper grille, often on the passenger side. You can often access it by removing a few lower splash shield screws or by reaching through the grille.
Can I drive with a bad ambient air temperature sensor?
Yes, but it's not ideal. While the car will run and drive, your automatic climate control will not function correctly, which can be uncomfortable. It can also lead to slightly reduced fuel efficiency and a persistent Check Engine Light.
Do I need to remove the bumper to replace the sensor?
Usually, no. On most 528i xDrive models, you can access the sensor by removing parts of the plastic underbody trays or wheel well liners. Some owners have found it easier to remove the whole bumper, but it is not always required.

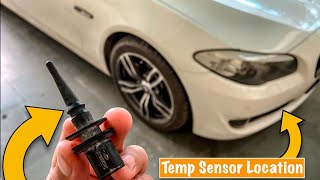

🎬 Watch this step-by-step F10 sensor replacement walkthroughAre there any recalls for this part?
As of now, there are no specific recalls from BMW or NHTSA for the ambient air temperature sensor itself on the 2009-2016 BMW 528i xDrive. Always check the NHTSA website with your vehicle's VIN for the most up-to-date recall information.
Helpful Videos
Technical Specifications
OEM Part Numbers: 65816936953 65816905133 65810141199
2-pin connector, press-fit mount.
