Ignition Coil Guide for the 2009-2016 BMW 528i xDrive
Avoid misfires and restore performance by choosing the right ignition coils for your BMW's specific engine.
- First, confirm if your 528i xDrive has the 6-cylinder N52 (2009-2010) or 4-cylinder N20 (2012-2016) engine to buy the correct number of coils.
- For best results, replace all ignition coils and spark plugs at the same time to ensure long-term reliability.
- Choose OEM supplier brands like Delphi, Bosch, or Eldor for the most reliable performance that matches factory standards.
- A failing coil can cause expensive damage to your catalytic converters over time, so it's important to address misfires promptly.
Understanding Your 528i xDrive's Engine
Before buying ignition coils for your 2009-2016 BMW 528i xDrive, it's critical to know which engine you have. This model range covers two different vehicle generations with two different engines, and they use different numbers of coils.
- 2009-2010 528i xDrive (E60 chassis): These models are equipped with the 3.0L N52 6-cylinder engine. You will need a total of six ignition coils.
- 2012-2016 528i xDrive (F10 chassis): These models feature the 2.0L N20 4-cylinder turbocharged engine. You will need a total of four ignition coils.
Check Your Engine
Always confirm your engine type before purchasing. Ordering the wrong number of coils or a part designed for the other engine is a common mistake.
Symptoms of a Failing Ignition Coil
A bad ignition coil makes itself known through poor engine performance. You don't have to be a mechanic to notice something is wrong. Watch out for 🎬 Watch: See and hear the symptoms of a bad ignition coil. these common signs:
- Rough Idle: Your car may vibrate or shake noticeably when stopped, as the engine struggles to run smoothly.
- Engine Misfires: You might feel a jerking or sputtering sensation during acceleration. This is a classic sign that one or more cylinders aren't firing correctly.
- Check Engine Light: A failing coil will almost always trigger the check engine light. Common codes include P0300 (random misfire) or codes from P0301 to P0306, which point to a misfire in a specific cylinder.
- Reduced Power and Fuel Economy: Your car may feel sluggish, and you'll likely notice you're visiting the gas station more often.
- Difficulty Starting: In severe cases, a weak or dead coil can make it hard to start the engine.
Choosing the Right Aftermarket Ignition Coils
When it comes to ignition coils for your BMW, quality matters. While you can save money with aftermarket parts, it's important to choose a reputable brand. Here’s a breakdown of your options:
Tier 1: OEM Supplier Brands (Bosch, Delphi, Eldor)
These companies manufacture the parts that BMW puts in your car at the factory. Choosing one of these brands is the safest bet for quality, fit, and performance that is identical to the original part. For many years, Bosch was the primary supplier, but BMW later switched to Delphi and Eldor for many N-series engines due to some premature failures with earlier Bosch designs. Today, all three are considered top-tier choices.
- Bosch: A long-time OEM supplier. Their modern coils are reliable, though some owners prefer to use the newer Delphi or Eldor designs based on BMW's production changes.
- Delphi: Became an OEM supplier after Bosch and is considered a revised, reliable design. Many owners and shops recommend Delphi as a go-to replacement.
- Eldor: The most recent OEM supplier for many modern BMWs. They are known for excellent quality and are often recommended for high-performance applications.
Tier 2: Reputable Aftermarket Brands (NGK, Standard Ignition, Spectra)
Brands like NGK are famous for their spark plugs and bring that ignition system expertise to their coils. They offer a good balance of quality and price, often performing as well as OEM parts for daily driving.
Tier 3: Budget-Friendly Brands (DriveWire, True Tech, Walker Products)
These brands offer significant cost savings, which can be tempting. However, their long-term reliability can be inconsistent. While they may work fine, they might not last as long as a Tier 1 or Tier 2 part. They can be a reasonable choice if the budget is tight, but be aware of the potential trade-off in durability.
Pro Tip: Replace in Sets
If one ignition coil fails, the others are likely not far behind. They all have the same age and have been exposed to the same heat and vibration. To avoid repeated repairs, it is highly recommended to replace all coils at the same time, along with the spark plugs.
Cost to Replace BMW 528i xDrive Ignition Coils
| Item | Estimated Cost |
|---|---|
| New OEM Ignition Coil (Single) | $64 - $101 |
| New Aftermarket Ignition Coil (Single) | $31 - $90 |
| Shop Labor | $31 - $45 for a single coil |
| Total DIY Cost (Full Set, Aftermarket) | $125 - $360 (4-6 coils) |
| Total Shop Cost (Full Set, OEM Parts) | $500 - $700+ |
Frequently Asked Questions
Is it hard to replace the ignition coils myself?
No, this is one of the easiest DIY jobs on a BMW. The coils are located directly on top of the engine and are held in by a single connector and friction. The entire job can usually be done in under an hour with basic hand tools.
Should I replace my spark plugs at the same time?
Yes, it is highly recommended. The ignition coils must be removed to access the spark plugs, so you will not be adding any extra labor. Worn spark plugs can strain new ignition coils, causing them to fail prematurely. Replacing them together ensures a complete and reliable ignition system refresh.
Can I mix and match ignition coil brands?
It is not recommended. Different brands can have slightly different internal resistance and voltage outputs. For smooth engine operation, it's best to have all coils be the same brand and part number.
Are there any recalls for the ignition coils on this car?
My search of the NHTSA database and other sources did not find any open recalls specifically for ignition coils on the 2009-2016 BMW 528i xDrive. However, always check for the latest information using your vehicle's VIN.

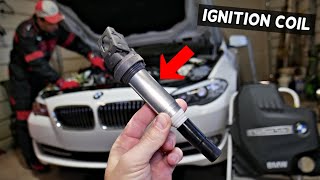

Helpful Videos
Technical Specifications
OEM Part Numbers: 12138616153 12137594937 12138657273 12131712219 12137551260
This vehicle uses a 'coil-on-plug' direct ignition system. The specific coil part number has been updated by BMW several times. The latest versions from suppliers like Delphi and Eldor often feature improved internal materials and metal shielding for better heat resistance compared to older designs.
We Have This Part in Stock
