A Guide to the 2009-2016 BMW 535i xDrive Fuel Pump Module Assembly
If your BMW is stalling or taking a long time to start, your in-tank fuel pump module could be the problem.
- Check if your 2011-2012 535i xDrive is part of NHTSA recall 16V-746 for a free fuel pump replacement.
- Symptoms like engine stalling and long cranks are classic signs of a failing low-pressure fuel pump module.
- This part is the in-tank Low-Pressure Fuel Pump (LPFP), not the engine-mounted High-Pressure Fuel Pump (HPFP).
- For reliability, choose an OEM-quality brand like Pierburg or Bosch over budget options.
Is Your BMW 535i xDrive Fuel Pump Failing?
The fuel pump module in the F10 generation BMW 535i xDrive (2011-2016) is a known failure point. When this part wears out, it can't supply the engine with a steady flow of gasoline, leading to noticeable problems. Ignoring these signs can leave you stranded.
Important Recall Information: NHTSA 16V-746
BMW issued a recall for certain 2011-2012 535i and 535i xDrive models due to a defect in the in-tank fuel pump. The wire contacts on the pump's connector could be improperly crimped, leading to overheating, melting plastic, fuel leaks, and sudden engine stalling. Before purchasing a new part, check with a BMW dealer or use the NHTSA website to see if your vehicle is affected and if the recall work has been completed. The repair is done free of charge.
Common Symptoms of a Bad Fuel Pump Module
A failing low-pressure fuel pump will give you clear warning signs. Here’s what to look for:
- Long Cranks: The engine turns over for several seconds before it finally starts. This is often worse on a cold start.
- Engine Stalling: The engine may shut off unexpectedly while driving, which is a serious safety risk. This can happen because the pump stops working completely.
- Hesitation or Sputtering: When you accelerate, the car may hesitate or feel jerky because the engine isn't getting enough fuel.
- Whining Noise: You might hear a distinct humming or whining sound coming from the rear seat area, where the fuel tank is located. 🎬 Watch this video to see the fuel pump module's exact location. This is the pump motor struggling to work.
- Check Engine Light: A failing pump can cause a lean fuel condition, which will trigger the check engine light.
Don't Forget the Fuel Pump Control Module (EKPM)
Sometimes the fuel pump itself is fine, but the control module that powers it has failed. On the F10 chassis, this module (called the EKPM) is located in the trunk. It is known to fail from overheating or water damage, causing the exact same symptoms as a bad pump. If you are diagnosing a fuel supply issue, it's wise to check this module for signs of corrosion or damage.
🎬 See how to access and replace the fuel pump control module.Choosing the Right Aftermarket Fuel Pump
For a critical part like the fuel pump, quality matters. You don't want to do this job twice. The market offers a few tiers of quality for your 535i xDrive.

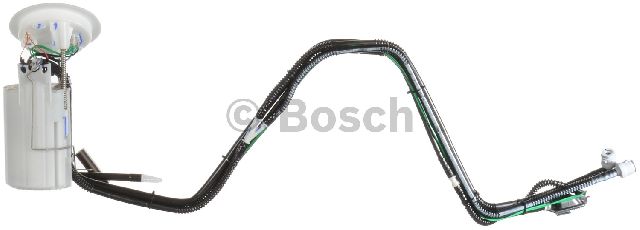

Tier 1: OEM and OE Brands (Bosch, Pierburg)
Pierburg is a confirmed Original Equipment Manufacturer (OEM) for the F10 5-series fuel pump, meaning they made the part that BMW originally installed at the factory. Bosch is another top-tier German brand that supplies many parts to BMW and is highly trusted for fuel systems. Choosing one of these brands gives you dealer-level quality without the dealer price tag. They are designed to meet BMW's exact specifications for performance and longevity.

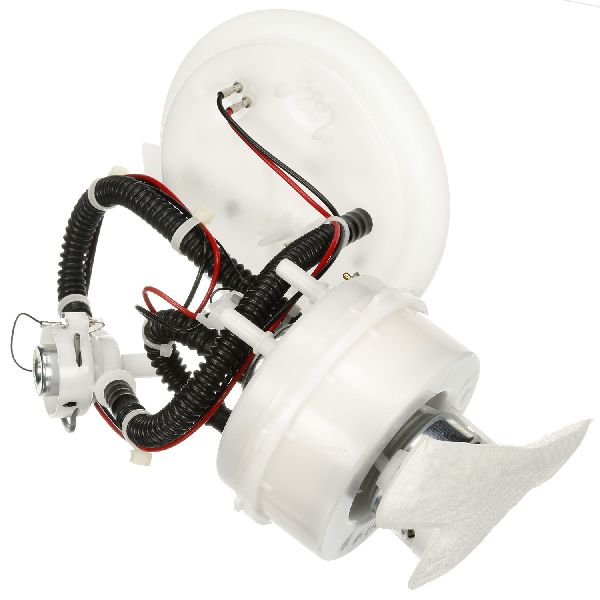

Tier 2: Reputable Aftermarket Brands (Delphi)
Delphi is a major parts manufacturer that also supplies automakers. However, for BMW applications, owner and mechanic feedback is mixed. While many have no issues, some have reported shorter lifespans compared to Bosch or Pierburg. A Delphi pump can be a good budget-friendly option, but it may carry a slightly higher risk of premature failure.
Cost of Replacing the Fuel Pump Module Assembly
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket (Bosch, Delphi) | $325 - $695 |
| New OEM (Dealer) | $580 - $770 |
| Shop Labor | $170 - $260 |
| Total Estimated Cost | $495 - $955 |
Frequently Asked Questions (FAQ)
Is this the same as the High-Pressure Fuel Pump (HPFP)?
No. This guide is for the low-pressure fuel pump (LPFP) module in the fuel tank. The HPFP is a separate part mounted on the engine that also fails but causes similar symptoms. It's important to diagnose the issue correctly, as they are different parts with different replacement procedures.
Can I replace just the pump motor instead of the whole assembly?
While some DIYers attempt to replace only the motor inside the plastic housing, it is not recommended. The module contains an integrated fuel filter that gets clogged over time. Replacing the entire assembly ensures you have a new pump, filter, and sending unit, which prevents future problems and is much more reliable.
Does the xDrive model make the replacement harder?
No, the procedure for accessing and replacing the in-tank fuel pump module is largely the same for both xDrive and rear-wheel-drive models. Access is gained by removing the rear seat cushion.
🎬 Watch this step-by-step guide to replacing the low pressure fuel pump.Do I need to code the new fuel pump to the car?
The fuel pump module itself does not require coding. However, if you replace the Fuel Pump Control Module (EKPM), the new module may need to be coded to your vehicle's specific configuration.
Why did my fuel pump fail?
Besides the recall defect, the most common cause is simple wear and tear over time. The electric motor works hard for many thousands of miles. Consistently driving with very low fuel levels can also cause the pump to overheat and fail sooner, as it relies on the surrounding gasoline for cooling.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16117341301 16117341279
This is the low-pressure fuel pump (LPFP) module assembly, which includes the pump, level sensor (sending unit), and integrated fuel filter. It is located in the fuel tank.
