A Mechanic's Guide to the 2009-2016 Chevrolet Express 3500 Spark Plug Wire Set
Everything you need to know before tackling the spark plug wire replacement on your Vortec V8-powered work van.
- The replacement job is difficult and labor-intensive due to poor engine access; always replace spark plugs at the same time.
- Stick with high-quality OEM-equivalent brands like ACDelco, NGK, or Delphi to ensure proper fit and longevity.
- Expect old wires to break upon removal; this is normal for this vehicle due to high heat.
- Common symptoms include a rough idle, hesitation, and a P0300 misfire code.
Signs of Failing Spark Plug Wires on Your Express Van
When spark plug wires start to fail, they can't deliver a consistent, strong spark to the plugs. This leads to noticeable performance problems. Because access to the engine is difficult, you want to be sure the wires are the problem before you start the job.
- Rough Idling: The engine may shake or vibrate more than usual when stopped.
- Engine Misfires: You might feel a hesitation or stumbling during acceleration as one or more cylinders fail to fire correctly. This can trigger a flashing Check Engine Light.
- Poor Fuel Economy: An inefficient spark means wasted fuel, and you'll find yourself at the gas station more often.
- Trouble Starting: A weak spark can make it difficult for the engine to start, especially in cold or damp weather.
- Check Engine Light: A common code for failing wires is P0300 (Random/Multiple Cylinder Misfire), but you may also see codes for specific cylinders (P0301-P0308).
Choosing the Right Aftermarket Spark Plug Wires
For the Express 3500, choosing the right wire set is important. Due to the high heat and difficult replacement job, a quality set will save you headaches down the road. Aftermarket brands offer a wide range of quality and price.
Tier 1: OEM-Equivalent Brands
These brands are the top choice for a stock vehicle and are trusted by professional mechanics. They are designed to meet or exceed the original factory specifications for fit and durability.
- ACDelco: As the original equipment (OE) supplier for General Motors, ACDelco wires are the benchmark. They guarantee correct lengths, boot angles, and materials for a perfect fit and long life.
- NGK: A highly respected Japanese brand known for excellent quality. Many mechanics consider NGK parts to be as good as, or sometimes better than, OEM parts. Their wires are known for durability and precise construction.
- Delphi: Another major OE supplier with a strong reputation. Some sources suggest Delphi manufactures parts for ACDelco, making their products very similar in quality and performance.
Tier 2: Performance & Specialty Brands
These brands focus on performance applications, often featuring lower resistance or thicker jackets. For a standard work van, they are generally not necessary but are a quality option.
- Taylor Cable, Edelbrock, Pertronix: These brands offer high-performance wire sets, often with features like spiral-wound cores for lower resistance. They are a good choice if you have other engine modifications.
Tier 3: Standard Aftermarket (Budget)
These brands provide a functional replacement at a lower cost. While they will work, they may not have the same longevity or perfect fit as the premium brands.
- Standard (SMP), Walker Products, Karlyn STI: These are common aftermarket brands. They are a viable option if budget is the primary concern, but be aware that you may be replacing them sooner, especially in the high-heat environment of the Express engine bay.
A Note on Installation
Replacing spark plug wires on the Express 3500 is a difficult job due to tight access. The job requires removing the interior engine cover ('doghouse') and often working through the front wheel wells. The old wires frequently get heat-welded to the spark plugs, and it's very common for the boots to tear or break during removal. Many mechanics plan on destroying the old wires to get them off. Because of the high labor involved, it is highly recommended to use a top-tier wire set and replace the spark plugs at the same time.
Cost to Replace Spark Plug Wires
The cost is heavily influenced by the high labor time required for this specific van.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Wire Set (Budget) | $42 - $75 |
| New Aftermarket Wire Set (Premium) | $75 - $141 |
| Shop Labor | $215 - $450+ |
| Total Professional Replacement | $260 - $600+ |
Note: Costs are estimates and can vary by location and the specific parts chosen. Labor costs can be significantly higher if spark plugs are replaced at the same time, which is recommended.
Frequently Asked Questions
Why is the replacement cost so high for my Express van?
The cost is high primarily due to labor. Accessing the V8 engine in the Express van is time-consuming. A mechanic must remove the interior engine cover and often the front wheels to reach all eight cylinders, especially the ones in the back.
Can I replace the spark plug wires myself?
This is a challenging DIY job. While it's possible for an experienced home mechanic with the right tools (like long pliers and swiveling sockets), it requires a lot of patience. Be prepared for broken wire boots and working in tight, awkward spaces.
Should I replace my spark plugs at the same time?
Yes, absolutely. The labor to access the spark plugs and the wires is nearly identical. It is extremely cost-effective to replace both at the same time. Worn plugs can cause similar symptoms and put extra strain on new wires.
Are there any recalls for the spark plug wires on this van?
No. As of early 2026, there are no specific NHTSA recalls or Technical Service Bulletins (TSBs) for spark plug wire failures on the 2009-2016 Chevrolet Express 3500.
Technical Specifications

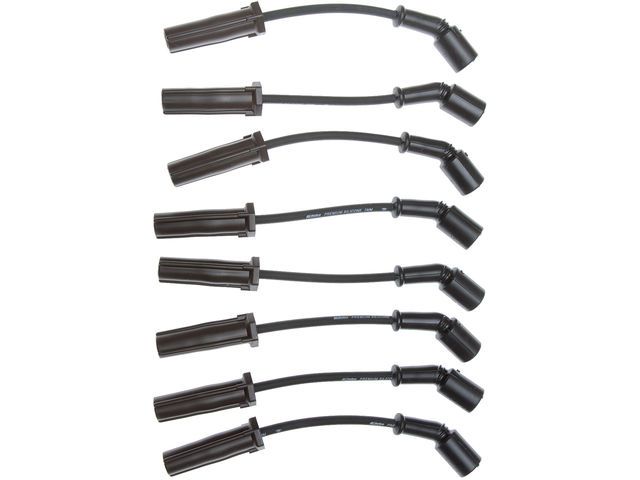

The 2009-2016 Express 3500 uses V8 engines (4.8L, 6.0L) that require a set of 8 spark plug wires. The wires must have boots designed to fit the specific coil packs (some early LS engines had round coils, while most in this range have square/Melco-Mitsubishi style coils) and heat shields for the spark plug ends.
