A Ford Mechanic's Guide to the 2009-2016 F-150 Transmission Filter Kit
Keep your 6R80 transmission shifting smoothly by choosing the right parts for the job.
- Symptoms like harsh shifting or overheating may point to a clogged filter, but sudden, violent downshifts indicate the more serious lead frame recall issue.
- The OEM Motorcraft gasket is high-quality and reusable; it's often better than the gaskets in aftermarket kits.
- Always use MERCON LV fluid and verify the correct filter part number (FT-188 for 5.0/3.5, FT-200 for 2.7).
- While servicing the transmission, inspect the cooler lines for corrosion, as they are a common failure point that can lead to total fluid loss.
Symptoms of a Clogged Transmission Filter
When your transmission filter gets clogged, it restricts fluid flow, leading to noticeable problems. If you experience any of these symptoms, your filter and fluid may need changing.
🎬 Watch: A visual guide to common clogged filter symptoms- Harsh or Delayed Shifting: The truck may hesitate, jerk, or slam into gear because the transmission isn't getting enough fluid pressure.
- Whining or Grinding Noises: Unusual noises from the transmission area can indicate the pump is straining to pull fluid through a clogged filter.
- Transmission Overheating: Restricted fluid flow leads to increased friction and heat. This can cause a burnt smell from the fluid and trigger warning lights.
- Hesitation in Reverse: A noticeable delay before the truck moves after shifting into reverse is a common sign of a clogged filter.
- Fluid Leaks: A blocked filter can cause pressure to build up, potentially forcing fluid past seals and gaskets.
A Critical Note on 6R80 Transmission Issues
Many 2009-2016 F-150s suffer from a well-known problem with the transmission's molded lead frame. This part contains sensors that tell the transmission when to shift. A faulty lead frame can cause sudden, violent downshifts into first gear, even at highway speeds. Other symptoms include an illuminated wrench light, erratic shifting, or getting stuck in one gear. These are NOT symptoms of a bad filter. Ford has issued recalls and extended warranties for this issue. If you have these severe symptoms, check for recalls using your VIN before replacing any parts.
🎬 See this walkthrough on how to replace the lead frameChoosing the Right Aftermarket Transmission Filter Kit
When shopping for a transmission filter kit, you'll find the original Motorcraft part and several aftermarket options. The quality of the included gasket is often the biggest difference.
Brand Quality Tiers

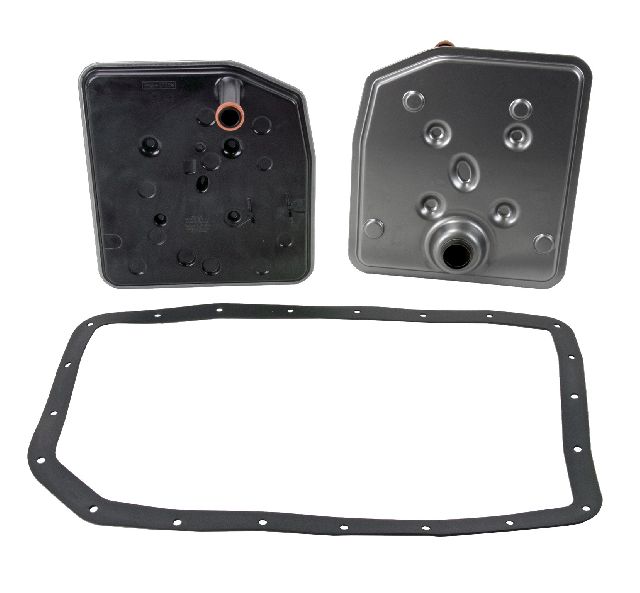

- Best (OEM-Equivalent): Wix
Wix is a well-respected brand that produces high-quality filters often considered as good as, or even better than, OEM parts. They are a reliable choice for those who want top-tier aftermarket quality. The fit and finish are generally excellent. - Good (Value-Focused): ATP & Premium Guard

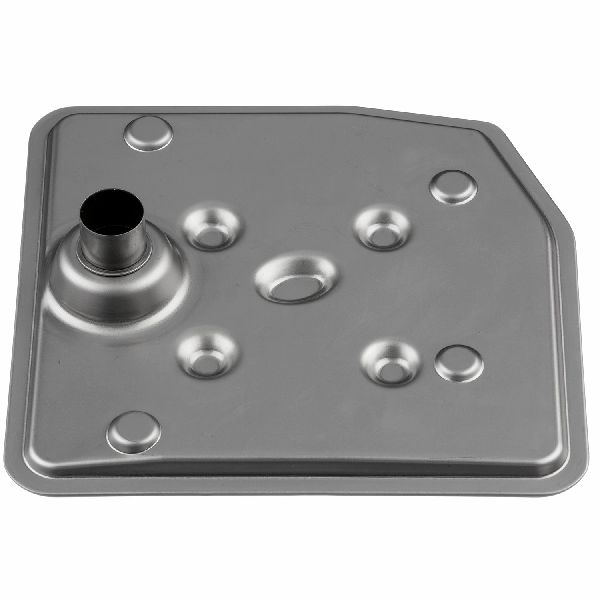

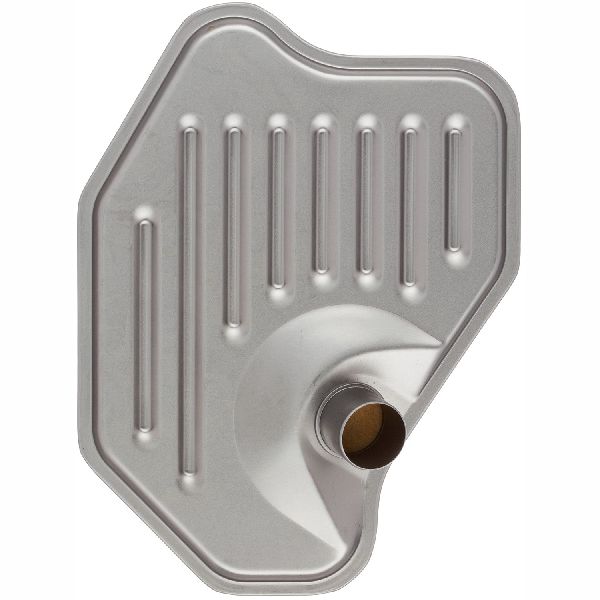

ATP is a budget-friendly option. Many users have success with their filters, but the main complaint is about the included gasket. They are often folded tightly in the box, which can cause tears or damage. Some installers choose to reuse the original Ford gasket if it's in good shape. Premium Guard positions itself as an OEM-equivalent supplier with a wide range of filters. Quality can be inconsistent, with some products being well-made and others showing signs of sloppy manufacturing like excess glue. - The OEM Option: Motorcraft
The Ford Motorcraft filter (typically part number FT-188) is the benchmark. Its biggest advantage is the high-quality, reusable metal-and-rubber pan gasket that comes with it. Many mechanics prefer to reuse this gasket over the cork or paper ones included in cheaper aftermarket kits.
Pro Tip: The original Ford transmission pan gasket is designed to be reused. If you are careful when removing the pan and the gasket is not cracked, brittle, or damaged, you can clean it and reuse it for a reliable, leak-free seal. This is often a better option than using a low-quality gasket from an inexpensive kit.
Cost of Replacing a Transmission Filter Kit
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit | $25 - $100 |
| New OEM (Motorcraft) Kit | $50 - $120 |
| Shop Labor | $150 - $250 |
Costs are estimates and may vary based on your location and the specific retailer or repair shop.
Frequently Asked Questions
Can I replace the transmission filter myself?
Yes, this is a DIY-friendly job if you are comfortable working under your truck. The main challenge is the mess, as the stock transmission pan does not have a drain plug. You will need to carefully lower the pan to drain the fluid. 🎬 Watch: Step-by-step DIY fluid and filter change tutorial The job requires basic hand tools, a torque wrench, and a fluid pump to refill the transmission.
What transmission fluid should I use?
The 6R80 transmission in the 2009-2016 F-150 requires Motorcraft MERCON LV automatic transmission fluid. Do not use any other type of fluid, as it can cause damage. A typical pan drop and filter change will require about 6 to 8 quarts of fluid.
How often should the transmission filter be changed?
Ford's official service interval for the 6R80 transmission is 150,000 miles. However, many owners and mechanics recommend changing the fluid and filter more frequently, such as every 60,000 to 100,000 miles, especially if you tow heavy loads or drive in severe conditions. Regular changes help extend the life of the transmission.
Is there a difference between the FT-188 and FT-200 filter?
Yes, and it's a critical difference. The Motorcraft FT-188 filter is for F-150s with the 3.5L EcoBoost and 5.0L V8 engines. The Motorcraft FT-200 filter is for trucks with the 2.7L EcoBoost engine. They are not interchangeable, and using the wrong one will cause problems. Always verify the correct part for your specific engine.
Should I also inspect the transmission cooler lines?
Absolutely. While you are under the truck, it is a great time to inspect the transmission cooler lines. On these F-150s, the lines are known to corrode and the fittings can break, causing a sudden and complete loss of transmission fluid, which can destroy the transmission. Check for rust or leaks where the lines connect near the front of the vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: FT-188 (Motorcraft) FT-200 (Motorcraft) FL3Z-7A098-A (Ford) FL3Z-7A098-B (Ford)
For Ford 6R80 6-Speed Automatic Transmission. Requires MERCON LV fluid.
