Chevrolet Express 4500 (2009-2017) Engine Oil Pressure Switch Replacement Facts
Erratic oil pressure gauge readings on your Express 4500 are a common issue you shouldn't ignore.
- A faulty oil pressure gauge is often caused by a bad sensor or, more commonly, a clogged filter screen underneath it.
- Always replace the small filter screen located under the sensor when performing this repair to prevent a false reading.
- The sensor is extremely difficult to access, making professional installation a good choice for many owners.
- Choose a high-quality aftermarket brand like Standard Ignition or Walker Products to avoid premature failure and repeat labor costs.
Is Your Oil Pressure Gauge Acting Up?
If you own a 2009-2017 Chevrolet Express 4500, especially one with a V8 engine, you may eventually see the oil pressure gauge behave strangely. The needle might drop to zero at idle, flicker, or get stuck on high. While alarming, this is often caused by a failed engine oil pressure switch or a related component, not necessarily a catastrophic engine failure. This article covers the common symptoms, how to choose a quality aftermarket part, and what the replacement job involves.
A Critical Related Issue: The Sensor Screen
On the GM V8 engines in these vans, a small, thimble-shaped filter screen sits in the engine block directly underneath the oil pressure sensor. This screen is notorious for getting clogged with oil sludge. A clogged screen blocks oil from reaching the sensor, causing it to report false low-pressure readings and trigger trouble codes like P0521. 🎬 Watch how to fix P0521 codes and low pressure readings. It is strongly recommended to inspect and replace this screen whenever you replace the sensor to ensure an accurate reading and avoid having to do the job twice.

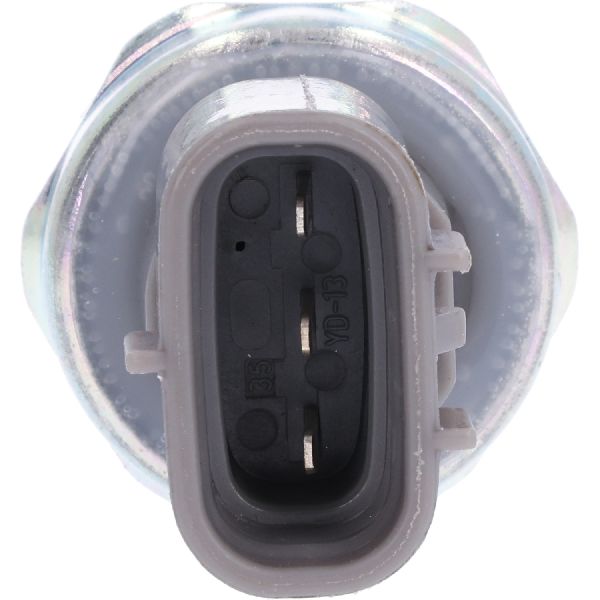

Choosing the Right Aftermarket Oil Pressure Switch
When replacing the oil pressure switch, you have a choice between OEM (ACDelco) and various aftermarket brands. For a part that is very difficult to access, choosing a quality component is critical to avoid repeat labor costs.
- Standard Ignition (Standard Motor Products): Often regarded as a top-tier aftermarket brand, Standard produces sensors known for quality and durability. They are engineered to meet or exceed OE specifications and are manufactured in North America. Many technicians trust this brand for reliable performance.
- Walker Products: Another established aftermarket brand, Walker Products manufactures sensors designed to be direct-fit replacements that meet OE standards. They emphasize durable construction to withstand heat and vibration, which is important for this specific part.
- Global Parts (and other value brands): While more budget-friendly, lower-cost brands can be a gamble. Given that the labor to replace this sensor is intensive, saving a few dollars on the part itself may not be worth the risk of premature failure. Some forum users report that cheaper sensors, in general, don't last as long as OEM or premium aftermarket options.
Cost of Replacing the Engine Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $46.16 - $94.15 |
| New OEM (ACDelco) | $55 - $85 |
| Shop Labor | $150 - $300 |
Pro Tip: Due to the difficult location of the sensor, the labor cost is a significant part of the total repair cost. It is often wise to invest in a premium aftermarket or OEM part to maximize the longevity of the repair.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on the 2009-2017 Express 4500?
The sensor is in a very tight spot on the top rear of the engine block, against the firewall, and behind the intake manifold, typically on the driver's side. Its location is what makes replacement a challenging job.
Can I replace the oil pressure switch myself?
This is a difficult DIY job due to the sensor's location. It requires patience, a special oil pressure switch socket (typically 1-1/16" or 27mm), 🎬 See a pro's secret tool for easier sensor access. a universal joint, and extensions for your ratchet. While it can be done without removing the intake manifold, access is extremely limited and it is not recommended for beginners.
🎬 Watch this step-by-step replacement guide for the 6.0L engine.Are there any recalls or TSBs for this issue?
As of early 2026, there are no specific NHTSA safety recalls for the engine oil pressure switch on these model years. However, GM has issued Technical Service Bulletins (TSBs) for related issues. TSB 20-NA-161 (for 2019-2020 models, but relevant) warns that a P0521 code can be caused by a sticking oil pressure relief valve in the oil pump, a much more serious issue. Other TSBs also address low oil pressure readings caused by clogged sensor screens or other engine issues.
What's the difference between an oil pressure 'switch' and 'sensor'?
For this vehicle, the terms are often used interchangeably. The component acts as a sensor by providing a variable signal to the pressure gauge, but it's also called a switch because it triggers the warning light at a specific low-pressure point.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12673134 12621234 12596951
The sensor is located at the top rear of the engine block, behind the intake manifold. Replacement requires a special 1-1/16" (27mm) oil pressure switch socket.
