Volkswagen CC Engine Water Pump (2009-2017): A Replacement Guide
Everything a VW CC owner needs to know about a failing water pump and how to choose the right replacement.
- The factory plastic water pump housing is a known weak point; upgrade to an aftermarket version with an aluminum housing for better reliability.
- Coolant leaks are the most common symptom. Do not ignore a low coolant light, as it can lead to engine overheating.
- This is a difficult replacement job. For most owners, professional installation is recommended due to the need to remove the intake manifold.
- Check if your vehicle is covered by VW's water pump warranty extension (8 years/80,000 miles) before paying for a repair.
The Known Issue with the 2.0T TSI Water Pump
If you own a 2009-2017 Volkswagen CC with the 2.0T TSI engine, you should be aware of a common failure point: the water pump assembly. The original factory part features a plastic housing that can become brittle over time due to constant heat cycles. This plastic can crack, leading to coolant leaks. This problem is so widespread that it has been the subject of class-action lawsuits and warranty extensions for certain VW models. Oil leaks from higher up on the engine, like from the valve cover or cam girdle, can drip onto the plastic housing and speed up its deterioration.

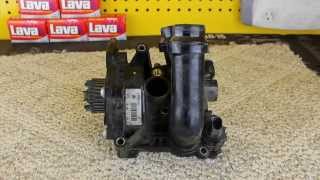

🎬 Watch: See exactly how these plastic water pumps failWarranty Extension Information
Volkswagen issued a warranty extension for the water pump on many vehicles, including some CC models, extending coverage to 8 years or 80,000 miles. This settlement covers the primary engine water pump, thermostat, and thermostat housing. Before purchasing a part, it is wise to check with a dealership to see if your specific vehicle's VIN is covered under this extension.
Choosing the Right Aftermarket Water Pump
When it's time to replace the water pump, you'll find many aftermarket options. For this specific part, the aftermarket has provided a significant upgrade over the original factory design.
OEM Plastic vs. Aftermarket Aluminum
The main weakness of the factory water pump is its plastic housing. Many aftermarket brands offer upgraded replacements that feature a cast aluminum housing. This is widely seen as a major durability upgrade by the VW community because it eliminates the risk of the housing cracking. When shopping for a replacement, choosing a kit with a metal housing is a smart investment for long-term reliability.

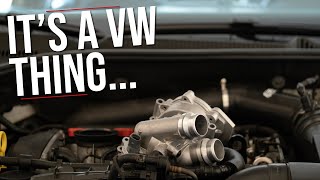

🎬 Check out this guide to aluminum water pump upgradesAftermarket Brand Tiers
Not all aftermarket brands are the same. Here’s a general breakdown to help you choose:
- Premium Tier (OEM Quality or Better): Brands like Hepu, Graf, and Saleri are well-respected and often considered OEM suppliers for European vehicles. They are known for high-quality components. Many enthusiasts recommend kits from these brands that include an aluminum housing and a metal or composite impeller for the best durability.
- Mid-Tier (Reliable Alternatives): Brands like Gates, GMB, and Beck Arnley have a solid reputation in the aftermarket for cooling system components. They provide a good balance of quality and value.
- Economy Tier (Budget-Focused): Brands like URO Parts, DJ Rock, and Skyward offer a lower price point. However, owner experiences with these brands can be mixed. While they can be a viable option for a temporary fix or if you're on a tight budget, some owners report fitment or longevity issues. For a critical part like a water pump, which requires significant labor to replace, investing in a higher-tier brand is often recommended to avoid doing the job twice.
Pro Tip: Check Your Engine Code
The 2.0T engine in the CC came in a few variations. The most common engine code is CCTA, but some models have the CBFA engine, which has a secondary air injection system. These engines may use different water pumps, so it's crucial to verify your engine code before ordering to ensure you get the correct part. You can find this code on a sticker on the upper timing cover.
Cost of Replacing the Water Pump
The cost can vary significantly based on the parts you choose and who does the work. The job is labor-intensive, as the intake manifold often needs to be removed for access.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump Kit | $54.44 - $421.77 |
| Shop Labor | $500 - $900 |
| Total Estimated Cost (Aftermarket) | $554 - $1322 |
Frequently Asked Questions
Should I replace anything else at the same time?
Yes. Since the water pump is sold as an assembly with the thermostat, both are replaced together. It is also highly recommended to replace the small water pump drive belt (Part # 06H121605E) and the plastic union pipe that connects the water pump to the oil cooler. Many comprehensive kits include these items. Also, address any oil leaks from above, such as the timing cover gasket, to prevent damage to the new water pump.
Is this a DIY job?
For the average DIY mechanic, this is a challenging job. It requires removing the intake manifold on many models to get access, which can be complex. The job can take 3-5 hours for an experienced technician. If you don't have experience with major engine work on modern VWs, professional installation is recommended.
🎬 Watch: A complete DIY removal guide for the 2.0T pumpDo I need to replace the timing chain?
No. On the 2.0T TSI engine in the CC, the water pump is driven by a small, separate belt connected to the balance shaft, not by the main timing chain. Therefore, you do not need to service the timing chain when replacing the water pump.
What coolant should I use?
Always use VW-approved G13 (or the newer G12evo) coolant. It is pink or violet in color. Using the wrong type of coolant can cause premature failure of cooling system components. When refilling, you'll need a 50/50 mix of coolant concentrate and distilled water.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06H121026DD 06H121026CQ 06H121026CF 06H121026BA 06H121026DR 06H121026ED
Fits 2.0T TSI engines, typically engine codes CCTA and CBFA. The assembly includes the water pump, thermostat, and temperature sensor. Driven by a small belt from the balance shaft.
