Ford E-350 Super Duty ABS Wheel Speed Sensor Guide (2009-2018)
Dealing with an ABS light on your 2009-2018 Ford E-350 Super Duty? This guide covers common symptoms and replacement options.
- The most common symptom of failure is an illuminated ABS light on the dash.
- Your 2009-2018 E-350 has three sensors: one on each front wheel and one on the rear differential.
- Replacing the rear sensor is easy; front sensors require more brake disassembly.
- Reputable aftermarket brands like Standard Ignition or Holstein are reliable alternatives to more expensive OEM parts.
Is Your ABS Light On? Common Symptoms of a Failing Sensor
When a wheel speed sensor on your E-350 Super Duty starts to fail, the most obvious sign is the ABS warning light illuminating on your dashboard. These vans work hard, and the sensors are exposed to heat, moisture, and debris, which can cause them to fail over time. You might also notice the traction control or stability control warning light, as these systems rely on the same wheel speed information.
🎬 Watch this video to learn more about bad sensor symptoms.A faulty sensor means the ABS computer isn't getting the data it needs, so it disables the system as a precaution. Your regular brakes will still work, but you won't have the anti-lock feature in an emergency stop, which can be risky on wet or loose surfaces.
Known Issues, Recalls, or TSBs
For the 2009-2018 model years, there are no specific recalls directly targeting the ABS wheel speed sensors themselves. However, a recall for the 2021 model year E-350 and E-450 noted that a wiring harness in the rear could get damaged by contact with the frame, potentially affecting the ABS circuits. While this is for a later model, it highlights the importance of checking the wiring harness for damage when diagnosing an ABS issue. Forum discussions among E-Series van owners frequently point to sensor failure as a common reason for the ABS light, often due to age, mileage, and exposure to the elements.
Choosing the Right Aftermarket ABS Sensor
When replacing an ABS sensor, you don't always have to go back to the dealer. Aftermarket brands offer a cost-effective alternative. For your E-350, brands like Standard Ignition (Standard Motor Products), Holstein, and Walker Products are readily available. Here's a general breakdown:
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Motor Products has a reputation for producing quality electronic components that meet or exceed OEM specifications. Many professional mechanics trust and use their parts.
- Holstein Parts: Holstein focuses on using quality materials and offers a 3-year/36,000-mile warranty on their ABS sensors, which shows confidence in their product. They aim to match OE fit and function.
- Walker Products: Walker is another established aftermarket manufacturer providing a wide range of sensors for many vehicles.
Pro Tip: While budget-friendly sensors from unknown brands can be tempting, they can also be a gamble. Forum users across different vehicle models often report that ultra-cheap sensors may fail prematurely or not work correctly out of the box. Sticking with a reputable aftermarket brand like Standard, Holstein, or even Dorman often provides a good balance of quality and price.
Cost Comparison: 2009-2018 Ford E-350 Super Duty ABS Sensor
| Part Type | Estimated Price Range |
|---|---|
| New OEM (Ford) | $74 - $116 |
| New Aftermarket | $44 - $88 |
| Shop Labor | $80 - $150 |
Frequently Asked Questions (FAQ)
Where are the ABS sensors located on my 2009-2018 E-350?
Your E-350 uses a three-channel ABS system. This means there is one sensor at each of the front wheels and a single sensor located on top of the rear differential housing. The rear sensor provides a speed reading for both rear wheels.
Can I replace just one bad sensor?
Yes. You only need to replace the sensor that has failed. A proper diagnostic scan tool can read the ABS module's trouble codes, which will tell you which specific sensor is causing the problem 🎬 See how to test and diagnose specific ABS error codes. (e.g., 'Left Front Wheel Speed Sensor Input Circuit Failure'). Replacing sensors that are still working is not necessary.
Is replacing an ABS sensor a DIY job?

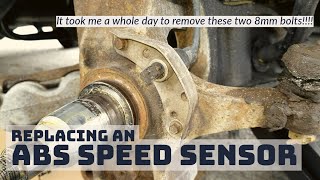

For someone with basic mechanical skills and tools, yes. The rear sensor on the differential is typically very easy to access and replace—it's usually held in by a single bolt. The front sensors are more involved, as they are located behind the brake rotor and may require removing the caliper, caliper bracket, and wheel hub assembly to access the two bolts holding the sensor. The most common issue is bolts seizing or breaking due to rust.
🎬 Follow this step-by-step guide to replacing a front wheel sensor.What causes the ABS sensor to fail?
The most common causes of failure are exposure to the elements, heat from the brakes, and physical damage. Corrosion can build up on the sensor and its connector, and the wiring can become brittle or damaged. Sometimes, metal debris can accumulate on the magnetic tip of the sensor, interfering with its reading. A failing wheel bearing can also damage the sensor or the toothed ring it reads.
Helpful Videos
Technical Specifications
OEM Part Numbers: BC2Z-2C204-A 9C2Z-2C204-A BC2Z2C205A
The system uses three sensors: two in the front (one per wheel) and one mounted on the rear differential. The sensors are typically two-wire magnetic pickups that read a toothed reluctor ring to determine wheel speed.
