Ford Expedition A/C Expansion Valve Guide (2009-2018)
Is your Expedition's A/C blowing warm or acting strange? This guide covers the A/C expansion valve, a common but tricky part to diagnose.
- The 2009-2018 Expedition has two expansion valves (front and rear); verify which one you need before ordering.
- For 2018 models, investigate TSBs for a freezing evaporator sensor or contaminated refrigerant before assuming the valve is bad.
- Replacement is not a DIY job as it requires professional A/C service equipment to evacuate and recharge the system.
- Always replace the receiver/drier and all relevant O-rings when replacing an expansion valve to ensure a lasting repair.
Front and Rear A/C Systems: Two Valves to Know
The 2009-2018 Ford Expedition is equipped with both front and rear air conditioning, which means it has two separate A/C expansion valves. One is for the front A/C system, and a different one is for the rear (auxiliary) system. When diagnosing a problem, it's important to determine which system is failing. If the front vents blow warm but the rear blows cold (or vice-versa), it can help pinpoint which valve might be at fault. You must order the correct valve for the front or rear position.

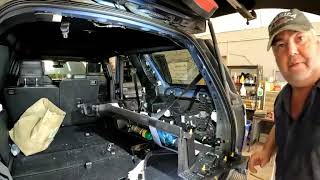

🎬 Watch: See where the rear expansion valve is located.Common Symptoms of a Failing A/C Expansion Valve
A bad expansion valve can cause a variety of symptoms that make your ride uncomfortable, especially in the summer. Here’s what to look out for:
- Warm or Inconsistent Air: The most common sign is air from the vents that isn't cold or alternates between cool and warm. 🎬 Watch this walkthrough for troubleshooting Ford Expedition A/C issues. This happens when the valve is stuck, either restricting refrigerant flow (warm air) or letting too much through (inconsistent temps).
- Frost on A/C Parts: If the valve is stuck open, it can send too much refrigerant to the evaporator, causing it to get too cold and freeze over. You might see frost on the vents or on A/C components under the hood.
- A/C Compressor Runs Constantly: A faulty valve can send incorrect signals to the A/C system's pressure switches, causing the compressor to run all the time, which can lead to further damage.
- Hissing Sound from Dash: While sometimes normal, a loud or unusual hissing sound from the dashboard area can indicate a problem with the expansion valve.
Important Note for 2018 Ford Expedition Owners
Before replacing the expansion valve on a 2018 model, be aware of two key issues. TSB 22-2089 addresses poor A/C performance caused by a faulty evaporator temperature sensor that makes the system freeze up. 🎬 See how to test and replace an evaporator temperature sensor. Additionally, customer satisfaction programs 18N01 and 20N08 were issued for potential refrigerant contamination from the factory on certain 2018 models, which can cause the entire A/C system to fail. Always check for these issues first, as they can mimic the symptoms of a bad expansion valve.
Choosing the Right Aftermarket Expansion Valve
When it comes to A/C parts, quality matters. A cheap part that fails can mean another expensive trip to the shop to evacuate and recharge the system. Here’s an honest look at the available brands.

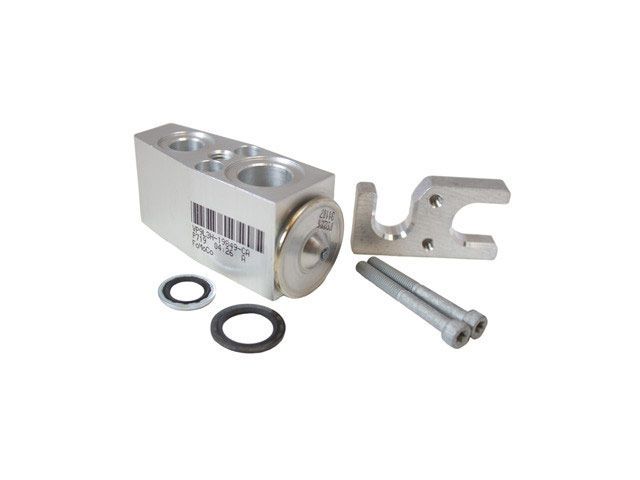

- Tier 1: OEM/OES (Motorcraft & Denso): Motorcraft is Ford's official part brand and offers a guaranteed fit and performance. Denso is often the Original Equipment Supplier (OES) for Ford, meaning they made the part for Ford in the first place. In many cases, the Denso and Motorcraft parts are identical except for the box and price. For peace of mind and longevity, these are the top choices.

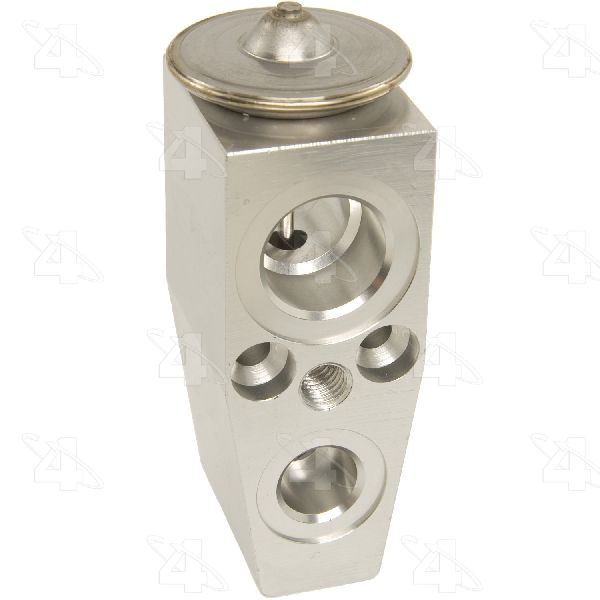

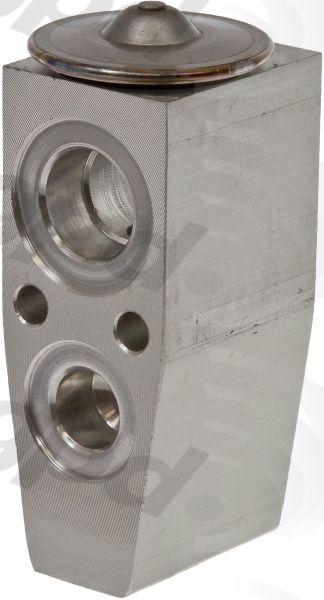

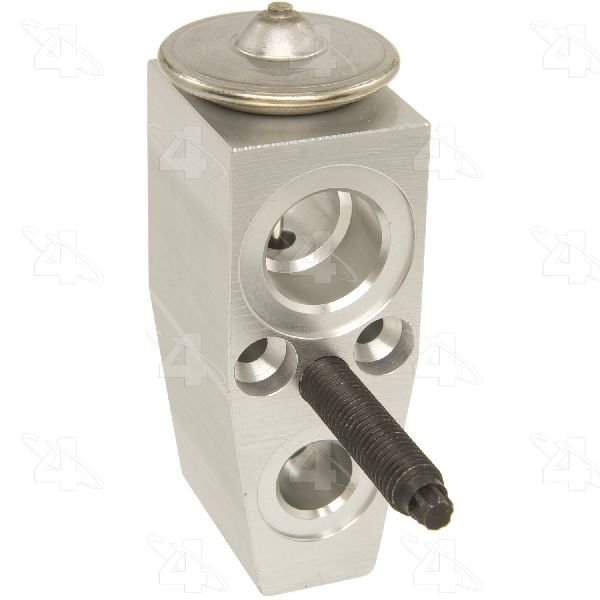

- Tier 2: Reputable Aftermarket (Four Seasons, Global Parts/GPD): Brands like Four Seasons and GPD are well-known in the aftermarket. They offer a significant cost savings compared to OEM. For many vehicle owners, these parts provide a good balance of value and performance. However, forum discussions show mixed long-term reliability, with some users experiencing failures sooner than with OEM parts. These are a solid budget-friendly option, especially if you are not planning to keep the vehicle for many more years.
Pro Tip: Any time you open the A/C system to replace a part like the expansion valve, you should also replace the receiver/drier (or accumulator). This component absorbs moisture from the refrigerant, and a new one is essential for the health and longevity of your A/C system. Failing to do so can void the warranty on your new parts.
Cost to Replace the A/C Expansion Valve
The cost is driven more by labor than the part itself. Replacing an expansion valve requires a professional to safely recover the old refrigerant and recharge the system after the repair.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $30 - $74 |
| New OEM (Motorcraft) Part | $35 - $60 |
| Shop Labor & System Recharge | $250 - $450 |
| Total Estimated Cost | $280 - $525 |
Frequently Asked Questions
Can I replace the A/C expansion valve myself?
This is not recommended for beginners. The job requires specialized equipment to evacuate and recharge the A/C system. The front valve is also difficult to access, buried in the firewall. For safety and to ensure the repair is done correctly, this job is best left to a professional mechanic.
Do I need the front or rear expansion valve?
Your Expedition has two. First, determine which part of your A/C system is failing (front or rear vents). The parts are not interchangeable, so ensure you order the correct one for the specific location.
What else should be replaced at the same time?
You must replace the A/C receiver/drier anytime the system is opened to the atmosphere. It's also wise to replace the small O-ring seals at every connection you disconnect. Many new parts come with these seals included.
Could something else be wrong?
Yes. Symptoms of a bad expansion valve can overlap with other issues like low refrigerant (a leak elsewhere), a failing compressor, or a bad pressure switch. For 2018 models, a faulty evaporator sensor is a known issue that causes freezing. A proper diagnosis from an A/C professional is the best way to avoid replacing parts you don't need.
Helpful Videos
Technical Specifications
OEM Part Numbers: 7L1Z-19849-B YG-405 7L1Z19849A YG-404 YG-417
This vehicle uses a block-type thermal expansion valve (TXV). It has separate parts for the front and rear (auxiliary) A/C systems. The system uses R134a refrigerant for most of the year range, with a switch to R-1234yf in 2018.
