A Guide to the A/C Pressure Switch for the 2009-2018 Ford Focus
If your Focus A/C is blowing warm air, the A/C pressure switch is a common part to check after verifying the refrigerant level.
- Before replacing the switch, always check for simpler issues like a blown A/C fuse (F27 on MK3) or relay (R11 on MK3).
- A faulty switch can cause a P0534 trouble code, which indicates frequent compressor cycling or refrigerant loss.
- BEWARE: Not all Focus models have a Schrader valve under the switch. Removing it without one can cause a dangerous release of refrigerant.
- The OEM Motorcraft part can often be purchased online for a price similar to or less than aftermarket options.
Is Your Focus A/C Blowing Warm?
One of the first signs of a failing A/C pressure switch is an air conditioning system that no longer blows cold air. You might also notice the A/C works intermittently, or the compressor clutch under the hood doesn't engage at all when you turn the A/C on. While these symptoms often point to being low on refrigerant, a faulty pressure switch can trick the car's computer into thinking there's a pressure problem, even when the refrigerant level is fine.
Before You Replace the Switch
A/C problems on the Focus can have several simple causes. Before buying a new pressure switch, check these first:

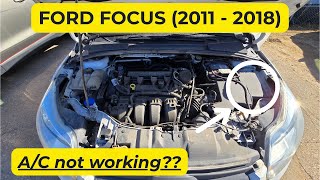

- A/C Fuses and Relays: A blown fuse or a bad relay are common and inexpensive fixes. For the 2012-2018 Focus (MK3), check fuse F27 in the cabin fuse box and relay R11 in the under-hood fuse box. 🎬 Watch: How to find and check your A/C fuses and relays.
- Refrigerant Level: Low refrigerant is the most frequent cause of A/C issues. A shop can check for leaks and proper charge level. A system that is low on refrigerant may trigger a P0534 trouble code.
Choosing the Right Replacement Switch
When it's time to replace the switch, you have two main options: OEM from Motorcraft or an aftermarket part.
- Motorcraft (OEM): Motorcraft is Ford's original equipment manufacturer. This is the part your car was built with, guaranteeing a perfect fit and function. Interestingly, OEM Motorcraft switches can often be found online for prices that are competitive with, or even lower than, some aftermarket brands.
- Aftermarket Brands: Brands like Dorman, Four Seasons, or UAC offer direct-fit replacements that are a cost-effective alternative. For a sensor like this, a quality aftermarket part is generally a reliable choice. Stick to well-known brands rather than generic parts from online marketplaces to ensure better quality and longevity.
| Part Type | Estimated Price Range |
|---|---|
| New OEM (Motorcraft) | $66 - $110 |
| New Aftermarket | $91 - $117 |
| Shop Labor | $50 - $100 |
Installation Warning: Refrigerant Hazard
While replacing the switch is mechanically simple, there is a significant safety risk. Most, but not all, Ford Focus models have a Schrader valve where the switch connects. This valve prevents refrigerant from escaping when the switch is removed. However, if your car does not have this valve, removing the switch will release high-pressure refrigerant, which can cause severe frostbite and eye injury. Unless you can visually confirm the presence of the valve pin inside the port after removing the old switch, the safest method is to have the A/C system professionally evacuated by a mechanic before starting the repair.
Frequently Asked Questions
Where is the A/C pressure switch located on my Ford Focus?
The location varies slightly by generation. For the 2012-2018 (MK3) Focus, the switch is typically found on an A/C line at the back of the engine bay. For the 2009-2011 (MK2) models, it is usually located on the driver's side of the engine bay. It's a small, 3-pin sensor screwed into one of the metal A/C pipes.

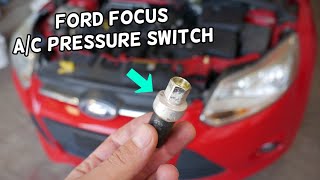

🎬 See this walkthrough for locating and replacing the pressure switch.What is the P0534 trouble code?
The P0534 code means "A/C Refrigerant Charge Loss." This code is set when the car's computer detects that the A/C compressor clutch is cycling on and off too frequently, which is a classic sign of low refrigerant. However, a bad pressure switch can send faulty data, causing the computer to log this code even if the refrigerant level is correct.
🎬 Watch this quick guide to understanding the P0534 engine code.Do I need to recharge the A/C system after replacing the switch?
If your vehicle has a working Schrader valve under the switch, you will not need to recharge the system. Only a tiny, insignificant amount of refrigerant will escape. If your vehicle does not have the valve and a mechanic has to evacuate the system for a safe replacement, then yes, the system will need to be vacuumed down and recharged afterward.
Are there any recalls for this part?
There are no direct recalls for the A/C pressure switch. However, a major recall (NHTSA 18V735) was issued for 2012-2018 models for a canister purge valve (CPV) that required a software update to the Powertrain Control Module (PCM). Since the PCM controls the A/C system, ensuring this recall has been performed is good practice for overall vehicle health.
Helpful Videos
![What is P0534 Engine Code [Quick Guide]](https://img.youtube.com/vi/RCU6o-sQJik/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: YH2034 YH1704 6F9319D594AA
3-pin electrical connector. Screws onto a threaded port on the high-pressure A/C line.
