A Guide to Replacing the Alternator on Your 2009-2018 Ford Focus
Is your Ford Focus showing signs of electrical problems? Your alternator might be the culprit.
- Symptoms often include dimming/flickering lights, a battery warning on the dash, and a dead battery.
- For 2012+ models, the 'smart charge' system can make diagnosis tricky; don't be alarmed if voltage drops during acceleration.
- Premium aftermarket brands like Bosch and Denso are highly recommended for reliability over cheaper, economy options.
- Replacement is a DIY-possible job for those with experience, taking 1.5-3 hours and requiring access from the passenger side wheel well.
Is Your Ford Focus Alternator Failing?
When the alternator in a 2009-2018 Ford Focus starts to go bad, it usually gives you a few warning signs. Because this part powers your car's entire electrical system, the symptoms are often easy to spot. Ignoring them can leave you stranded with a dead battery.
Common Symptoms of a Bad Alternator:
- Dim or Flickering Lights: You might notice your headlights, dashboard lights, and interior lights pulse, flicker, or appear dimmer than usual.
- Warning Lights on Dash: The most common sign is the battery-shaped warning light, but a failing alternator can also cause other lights like ABS, brake, or traction control to flash unexpectedly.
- Slow or Failing Electronics: Power windows that move slowly, sluggish windshield wipers, or a radio that cuts out are all signs of low electrical power.
- Difficulty Starting or a Dead Battery: The alternator is supposed to recharge your battery. If it fails, your battery will drain, making it hard to start the car or leaving it completely dead.

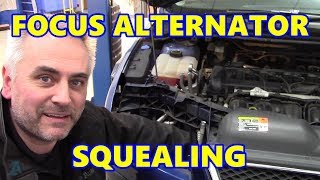

- Strange Noises or Smells: A grinding or whining noise from the engine bay often points to worn-out bearings inside the alternator. A smell of burning rubber could mean the drive belt is slipping, while a hot electrical smell can indicate the alternator is overheating.
Smart Charging System Confusion
Many 2012 and newer Focus models have a smart charging system to improve fuel economy. This system may lower the alternator's output while you are accelerating and increase it when you coast. This can make it seem like the alternator isn't working at idle, but it's often normal. A healthy system should still produce 13.5 to 14.8 volts when checked across the battery terminals with the engine running.
🎬 Watch: How to test your alternator with a multimeter.Choosing the Right Aftermarket Alternator
When your original Motorcraft alternator fails, you have many aftermarket options. They generally fall into three quality tiers. Your choice depends on your budget and how long you plan to keep your car.
Tier 1: Premium Aftermarket (Bosch, Denso)
These brands are often the original equipment (OE) manufacturers for many carmakers and are known for their quality and reliability. Denso and Bosch are widely considered top-tier choices that meet or exceed Ford's original specifications. They are the most expensive aftermarket options but offer the best performance and longest life. If you want a fit-and-forget repair, these are your best bet.
Tier 2: Quality Aftermarket (WAI Global, Remy, BBB Industries)
These brands offer a good balance of price and quality. They produce reliable new and remanufactured alternators that are a solid choice for a daily driver. While they may not have the same top-tier reputation as Bosch or Denso, they provide a dependable repair without the premium price tag.
Tier 3: Economy Brands (MPA, Store Brands)
Economy brands offer the lowest price point, making them a tempting option for budget-focused repairs. However, quality can be inconsistent. Some owners report issues with store-brand parts not solving the charging problem, leading to more work. These are best used for getting a car back on the road quickly, but may not offer the same long-term durability as higher-tier options.
Pro Tip: Check the Wiring Connector
The small plastic electrical connector on the alternator can become brittle and break during removal. Inspect it carefully. If it's damaged, you can often buy a replacement pigtail connector (like Motorcraft part WPT1331) and splice it in, saving you from replacing a whole wiring harness.
How Much Does a Ford Focus Alternator Replacement Cost?
The total cost depends on the parts you choose and who does the work. The job is manageable for a skilled DIYer, but requires accessing the alternator from underneath the car.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Alternator | $120 - $428 |
| New OEM (Motorcraft) Alternator | $350 - $550 |
| Shop Labor | $150 - $300 |
| Total Professional Replacement | $270 - $850+ |
Frequently Asked Questions
Was there a recall on the 2009-2018 Focus alternator?
Yes, but it was very specific. Ford issued recall 18V-548 for a small number of 2018 Focus vehicles built on May 29, 2018. The issue was an improperly tightened power cable nut on the alternator or starter, which could cause electrical arcing and a fire risk. There are no widespread alternator recalls for other years, though other recalls for engine stalling have occurred.
Can I replace the alternator myself?

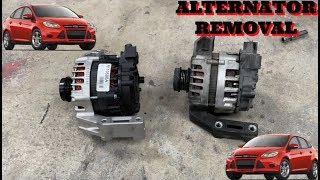

Yes, if you have intermediate mechanical skills and the right tools. The job typically takes 1.5 to 3 hours. It requires safely jacking up the vehicle, removing the passenger-side wheel and fender liner, and working from the bottom. 🎬 See this step-by-step alternator replacement walkthrough. You'll need a good socket set, a torque wrench, and a serpentine belt tool or long breaker bar.
What is a P0620 code?

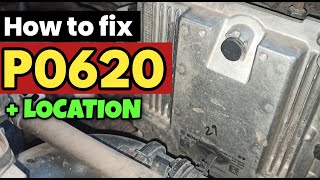

The P0620 "Generator Control Circuit Malfunction" code is very common when the Focus alternator fails. It means the car's main computer (PCM) has detected a problem in the circuit it uses to control and monitor the alternator. While this is often caused by a bad alternator, it can also be triggered by faulty wiring or a poor connection.
🎬 Watch: Understanding P0620 causes and how to fix them.Should I buy a new or remanufactured alternator?
Both can be good choices. A new alternator from a premium brand like Bosch or Denso offers maximum peace of mind. A quality remanufactured unit from a reputable brand is rebuilt to meet original specifications with worn parts replaced, offering similar performance for a lower price. The key is choosing a trusted brand, regardless of whether it's new or remanufactured.
Helpful Videos
Technical Specifications
Amperage ratings typically range from 110A to 150A depending on the engine and trim level. The alternator uses a 3-pin electrical connector for the voltage regulator and a B+ stud for the main power cable. It is driven by the serpentine belt.
