Cadillac CTS Manifold Absolute Pressure (MAP) Sensor: A Guide for 2009-2019 Models
Understanding why your Cadillac CTS might be hesitating or losing power, and how to choose the right replacement MAP sensor.
- A bad MAP sensor on a CTS typically causes rough idle, hesitation, and poor fuel economy, often with a P0106 code.
- For critical sensors on a Cadillac, stick with trusted brands like ACDelco or Delphi to ensure compatibility and avoid further issues.
- Replacement is a simple, quick, and affordable DIY job for most owners, usually taking less than 30 minutes.
- Do not try to clean the old sensor with chemicals; replacement is the recommended and safer solution.
Is Your Cadillac CTS Running Rough? It Could Be the MAP Sensor
If your CTS has started to hesitate, idle poorly, or use more gas than usual, a failing Manifold Absolute Pressure (MAP) sensor could be the culprit. This sensor plays a vital role in how your engine performs. When it fails, it sends incorrect information to your car's main computer, leading to a range of driving problems. This guide will help you understand the symptoms, choose the best aftermarket replacement, and know what to expect for costs.
Symptoms of a Bad MAP Sensor in a Cadillac CTS
A bad MAP sensor can mimic other engine problems, so it's important to look for specific signs. The most common symptom that triggers an investigation is the Check Engine Light. If the light is on, getting the codes read is the first step. The main code associated with a MAP sensor performance issue is P0106.
- Poor Engine Performance: You might feel a hesitation or stumble when you accelerate. The engine can feel sluggish and lack power.
- Rough Idle: The engine may shake or idle unevenly when you're stopped. In some cases, it could even stall.
- Bad Fuel Economy: A faulty sensor can cause the engine to use more fuel than necessary, so you'll find yourself at the gas station more often.
- Black Exhaust Smoke: If the sensor causes the engine to run too rich (too much fuel), you might see black smoke coming from the exhaust.
Vehicle-Specific Issue: Cold Weather & Icing
General Motors issued a Technical Service Bulletin (TSB #20-NA-043) for some vehicles, which can apply to the CTS. In freezing temperatures, ice can form on the MAP sensor during long drives, causing a P0106 code and drivability issues. The bulletin notes that the issue may resolve itself after the engine warms up and melts the ice. 🎬 See how a faulty MAP sensor behaves and how to fix it. It specifically warns not to clean the sensor with chemicals or compressed air, as this can damage it.
Choosing the Right Aftermarket MAP Sensor
For many parts, the brand doesn't matter as much. For engine sensors on a Cadillac, it does. The engine's computer is calibrated to expect signals within a very specific range. Cheaper, reverse-engineered sensors can sometimes operate just outside that range, leading to persistent performance issues even with a new part.
Brand Tiers for Your CTS
- Tier 1 (OEM or Equivalent): ACDelco & Delphi. These brands are the original equipment suppliers for many General Motors vehicles. Choosing an ACDelco "GM Genuine" part or a Delphi sensor is the safest bet for compatibility and performance. They are designed to the original factory specifications.
- Tier 2 (Trusted Aftermarket): Bosch, NGK/NTK, Standard Ignition (SMP). These are well-respected brands that produce high-quality sensors. They are a reliable choice if an OEM-equivalent part is not available or if you're looking for a balance of quality and price.
- Tier 3 (Budget Brands): Walker Products, Facet, and other store brands fall into this category. While they are more affordable, their quality and calibration can be inconsistent for a sensitive engine like the one in the CTS. They might work fine, but there is a higher risk of them not performing to OEM standards.
Pro Tip: Many owners and mechanics recommend sticking with ACDelco or Delphi for critical sensors on GM vehicles to avoid headaches. Spending a little extra on a quality sensor can save you from a failed repair and the need to do the job twice.
MAP Sensor Replacement Cost for Cadillac CTS (2009-2019)
Replacing the MAP sensor is not an expensive job. The part itself is affordable, and the labor is minimal because the sensor is usually easy to access.
| Item | Estimated Cost |
|---|---|
| New Aftermarket MAP Sensor | $39 - $105 |
| Shop Labor | $50 - $75 |
| Total Estimated Cost | $89 - $180 |
Note: Costs are estimates and can vary based on your location, vehicle's specific engine, and the repair shop.
Frequently Asked Questions
Where is the MAP sensor located on my Cadillac CTS?
The MAP sensor is almost always located directly on the intake manifold. It's a small, black plastic sensor held in by one or two small bolts with an electrical connector plugged into it. On most CTS engines, it is visible and easy to reach once the plastic engine cover is removed.
Can I replace the MAP sensor myself?
Yes, this is a very DIY-friendly repair. For most CTS models, the job requires only basic hand tools (like a small socket or Torx driver), takes less than 30 minutes, and involves removing a bolt, swapping the sensor, and reconnecting the electrical plug. It is generally considered one of the easier sensors to replace.

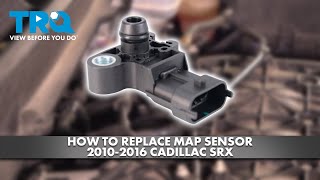

🎬 Watch a step-by-step walkthrough of a Cadillac MAP sensor replacement.Should I clean my MAP sensor first?
While some sensors can be cleaned, it is generally not recommended for the MAP sensor, especially on a CTS. GM's own service information warns against using chemical cleaners or compressed air, as this can damage the sensitive internal components. Given the relatively low cost of a new, high-quality sensor, replacement is the more reliable option.
Is there a recall on the MAP sensor for the Cadillac CTS?
No, there are no specific recalls from the NHTSA for the MAP sensor on 2009-2019 Cadillac CTS models. There is a Technical Service Bulletin (TSB) related to icing in cold weather, but this is an advisory for technicians, not a safety recall.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12644228 12614970 12650600
The MAP sensor for the Cadillac CTS is a 3-pin electronic sensor that mounts to the intake manifold. It reads pressure changes and converts them into a voltage signal for the ECU.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
