Cadillac CTS Spark Plug Guide: 2009-2019 Engines and Issues
Choosing the right spark plugs for your CTS is critical for performance and preventing engine problems.
- Always use high-quality Iridium spark plugs from brands like NGK, Denso, or ACDelco for best performance and longevity.
- Be aware of a TSB for V6 engines where oil/coolant in the plug tube may indicate a serious cylinder head issue, not just a simple leak.
- If doing the job yourself, be extremely careful with brittle plastic hoses on V6 engines to avoid breaking them.
- A flashing check engine light indicates a severe misfire; pull over safely and have the vehicle inspected to prevent expensive catalytic converter damage.
Understanding Spark Plugs in Your CTS
The 2009 to 2019 Cadillac CTS was built with several different engines, from efficient four-cylinders to powerful supercharged V8s. Each engine has specific spark plug requirements. Using the wrong plug can cause poor performance, misfires, and even damage your engine. Most CTS models from this era came from the factory with long-lasting iridium spark plugs, which are designed for high performance and have a long service life, often up to 100,000 miles under normal conditions.
Engine Variations Matter
It is critical to buy spark plugs that are specified for your exact engine. The main engines found in the 2009-2019 CTS family include:
- 2.0L Turbo I4 (LTG): Found in later models, this engine is known to be very particular about spark plugs.
- 3.0L V6 (LF1): An entry-level V6 in the second generation.
- 3.6L V6 (LLT, LFX, LGX): The most common engine, used across both generations. 🎬 Watch this step-by-step spark plug replacement for the 3.6L V6.
- 3.6L Twin-Turbo V6 (LF3/LF4): Used in the V-Sport models.
- 6.2L Supercharged V8 (LSA, LT4): The high-performance heart of the CTS-V.
Always verify the correct part number for your specific engine before purchasing.

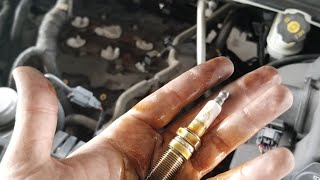

Known Issue: Fluid in Spark Plug Tubes (V6 Engines)
A known issue for some 3.0L and 3.6L V6 engines is the presence of oil or coolant in the spark plug wells. According to GM Technical Service Bulletin (TSB) PIP5095G, this is not caused by a bad valve cover gasket, but by porosity in the cylinder head itself, allowing fluid to leak into the sealed plug tube. Symptoms include engine misfires (P0300-P0306 codes) and a visible leak. Unfortunately, the only correct repair is to replace the entire cylinder head, along with the affected spark plug and ignition coil.
🎬 See what causes oil to leak into your spark plug tubes.Choosing the Right Aftermarket Spark Plug
For General Motors vehicles, ACDelco is the original equipment (OE) supplier. However, ACDelco often sources its spark plugs from manufacturers like NGK and Denso. This means you can confidently choose top-tier aftermarket brands and get performance that is equal to or better than the original parts.
Brand Quality Tiers for Your CTS
- Top Tier (OEM-Equivalent & Recommended): Brands like NGK and Denso are the top choice for any CTS engine. Their iridium plugs offer the best performance and longevity, matching the original factory parts. For modified CTS-V models, specific NGK plugs are a common upgrade.
- Quality Aftermarket: Bosch and Autolite offer excellent iridium and double platinum options that are a reliable choice for daily driving and standard engine performance. They provide good value and meet the demands of modern engines.
- Standard/Economy: Basic platinum or copper plugs, like some from the Champion brand, are not recommended for the advanced engines in the 2009-2019 CTS. While they are less expensive, they will not provide the performance or longevity your vehicle requires and can lead to issues sooner. Sticking with iridium plugs is the best practice.
A Note on Pre-Gapped Plugs: Most iridium spark plugs are advertised as "pre-gapped." However, it's always a good idea to verify the gap with a feeler gauge or wire-style gapping tool before installation. The gap can be knocked out of spec during shipping. Never use a "coin-style" gapper on iridium or platinum plugs, as it can damage the fine electrode tip.
Cost to Replace Cadillac CTS Spark Plugs
| Item | Estimated Cost |
|---|---|
| New Aftermarket Spark Plugs (Iridium) | $8 - $22 per plug |
| Shop Labor | $150 - $400+ |
| Total Professional Replacement | $200 - $600+ |
Costs are estimates and can vary based on your engine, location, and the specific parts chosen. The V6 engines require more labor than the 4-cylinder.
Frequently Asked Questions
How often do I need to change the spark plugs on my CTS?
For the original iridium spark plugs, the recommended replacement interval is typically between 60,000 and 100,000 miles. However, if your engine is tuned, driven hard, or you notice any symptoms of failure, they should be inspected and potentially replaced sooner.
Can I change the spark plugs myself?
Yes, this is a DIY-friendly job for someone with mechanical experience. You will need a torque wrench, a spark plug socket, and various extensions. Be extremely careful with the plastic vacuum hoses on top of the V6 engines, as they become brittle with age and can easily break. The passenger side of the V6 is more difficult to access than the driver's side.
What are the symptoms of a bad spark plug in a Cadillac CTS?
Common signs include a rough idle, engine shaking, hesitation when you accelerate, poor fuel economy, and a check engine light. A flashing check engine light is a serious symptom indicating a significant engine misfire that could damage your catalytic converter, and you should stop driving the vehicle.
What do the misfire codes (P0300, P0301, etc.) mean?
These are diagnostic trouble codes (DTCs) that your car's computer stores when it detects a misfire. A P0300 code means a random, multiple-cylinder misfire. Codes P0301 through P0306 indicate a misfire in a specific cylinder (e.g., P0301 is cylinder 1). While bad spark plugs are a common cause, these codes can also be triggered by a faulty ignition coil, fuel injector, or the cylinder head leak mentioned earlier.
Should I replace the ignition coils at the same time as the spark plugs?
It is not required to replace the coils with the plugs. However, if a coil fails, it often makes sense to replace the spark plug in that same cylinder. If you have a high-mileage vehicle and are already paying for the labor to access the plugs, replacing the coils as preventative maintenance can save you from a future failure, but it will significantly increase the cost.
Helpful Videos
Technical Specifications
OEM Part Numbers: 41-109 41-162 41-962 41-101 41-118
Most 2009-2019 Cadillac CTS models require an Iridium-type spark plug. The specific part number and gap specification vary significantly depending on the engine (2.0T, 3.0L, 3.6L, 6.2L). Always confirm the part number for your specific vehicle before purchase.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
