Ford Flex Ignition Coils (2009-2019): A Complete Guide
Experiencing engine misfires or poor performance in your Ford Flex? A failing ignition coil is a likely culprit.
- Replacing rear coils (1, 2, 3) requires removing the intake manifold; it's best to replace all six coils and spark plugs at once.
- Symptoms include rough idle, poor acceleration, and a check engine light with codes P0301-P0306.
- OEM (Motorcraft) or OEM-equivalent (Denso) brands are highly recommended for reliability, especially for the rear bank.
- A flashing check engine light indicates a severe misfire that can damage your catalytic converter; address it immediately.
Understanding Ignition Coil Failure in Your Flex
Ignition coils are a common point of failure on many modern vehicles, including the 2009-2019 Ford Flex. Over time, heat and vibration can cause the coil's internal windings to break down or the plastic housing to crack. This can lead to a weak or nonexistent spark, causing a variety of noticeable engine problems. 🎬 Watch this video to identify common symptoms of a bad coil. While some coils can last over 100,000 miles, it's not uncommon to replace one or more during the vehicle's lifespan. When one coil fails, some mechanics suggest replacing all six, especially on higher mileage vehicles, to prevent future issues and save on labor, as accessing the rear three coils requires removing the intake manifold.
Known Issues & TSBs

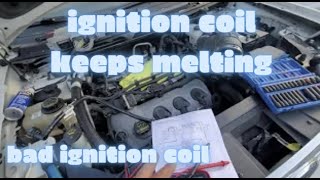

While no specific recalls for the 2009-2019 Ford Flex ignition coils were found, a Technical Service Bulletin (TSB 13-4-17) was issued for earlier 3.5L engines in other Ford models. This TSB addresses an issue where a faulty Powertrain Control Module (PCM) could cause repeated ignition coil failures, leading to melted or damaged coils. 🎬 See why your Ford Flex ignition coils might keep melting. If you replace a coil and the new one fails quickly on the same cylinder, it could point to a deeper electrical issue with the PCM or wiring harness rather than a defective part.
Choosing the Right Aftermarket Ignition Coil
When replacing a coil, you have a choice between OEM (Original Equipment Manufacturer) and various aftermarket brands. Here’s a breakdown to help you decide:
- OEM (Motorcraft): Motorcraft is Ford's official parts brand. These coils are what your Flex came with from the factory and are considered a reliable, high-quality choice. Many owners and mechanics prefer to stick with Motorcraft to ensure compatibility and longevity, especially for the hard-to-reach rear coils.

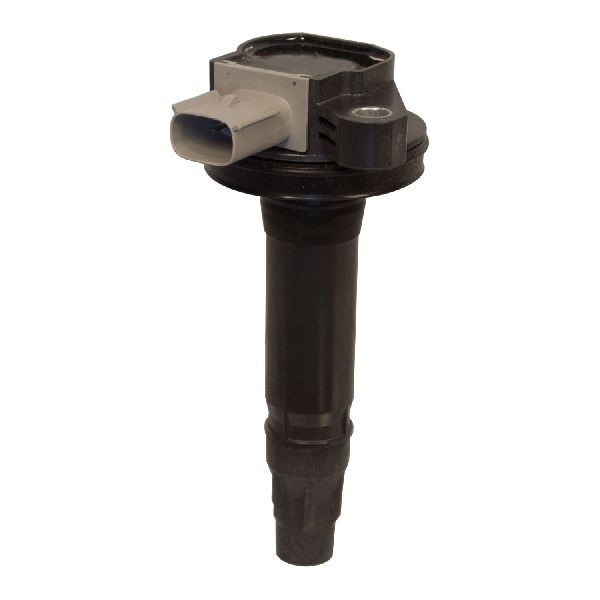

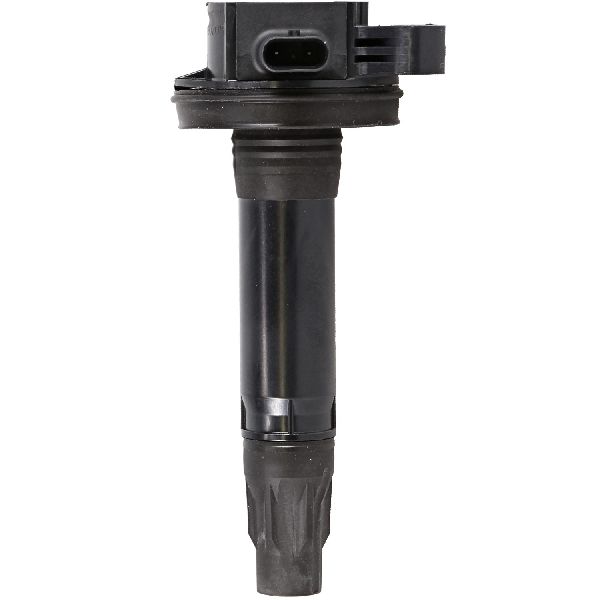

- OEM-Equivalent (Denso, Delphi): Brands like Denso are often the original equipment suppliers to automakers. They produce coils to the same high standards as the factory parts. Choosing a brand like Denso can often get you OEM quality without the OEM price tag. Delphi also has a strong reputation for producing reliable, OE-performance ignition components.
- Performance (MSD, Accel, Granatelli): These brands specialize in high-performance ignition systems. They often claim benefits like increased spark energy for improved throttle response and horsepower. While they can be a good upgrade, especially for EcoBoost models, they are typically more expensive. Ensure they are compatible with your specific engine, as some are designed for performance applications and may have different installation requirements.

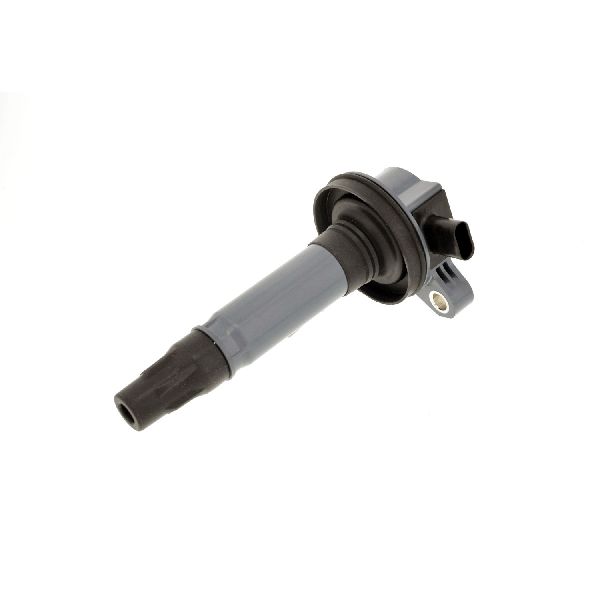

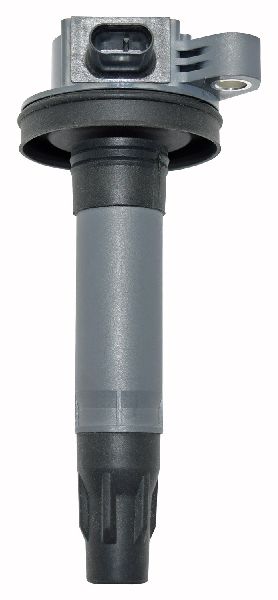

- Standard Aftermarket (Hella, Karlyn STI, Prenco, SKP): This tier offers a cost-effective solution. Brands like SKP are often cited by DIYers as a budget-friendly option that gets the job done. While the quality can be more variable than premium brands, they are a viable choice for owners on a tight budget. It's often recommended to replace them in a full set if you choose this route.
Pro Tip: Replace Spark Plugs at the Same Time
Since you're already accessing the coils, it's highly recommended to replace the spark plugs simultaneously. Worn spark plugs can strain the ignition coils, leading to premature failure. For the rear bank of cylinders, this is especially important because removing the intake manifold is a significant job you only want to do once.
| Part Type | Estimated Cost (per coil) |
|---|---|
| New OEM (Motorcraft) | $70 - $90 |
| New Aftermarket | $40 - $100+ |
| Used OEM | $20 - $40 |
| Shop Labor (Single Front Coil) | $50 - $100 |
| Shop Labor (All 6 Coils) | $250 - $450+ |
Frequently Asked Questions
How do I know which ignition coil is bad?
When a coil fails, the check engine light will usually illuminate and store a diagnostic trouble code (DTC). Codes P0301 through P0306 correspond to a misfire in cylinders 1 through 6, respectively. A mechanic can read these codes with a scanner. A common DIY diagnostic trick is to swap the suspected bad coil with a coil from a known good cylinder. If the misfire code follows the coil to the new cylinder (e.g., a P0305 becomes a P0301 after swapping coils from cylinder 5 to 1), you've confirmed the coil is the problem.
Is it difficult to replace the ignition coils on a Ford Flex?
The difficulty varies. The front three coils (cylinders 4, 5, and 6 on the naturally aspirated 3.5L) are easily accessible and can be replaced in minutes with a single 8mm socket. However, the rear three coils (cylinders 1, 2, and 3) are located under the upper intake manifold plenum. Replacing these requires removing the manifold, which is a more involved job that takes more time and requires replacing the intake gaskets.

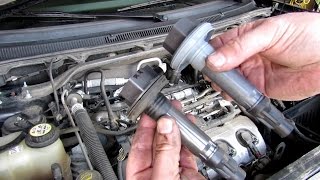

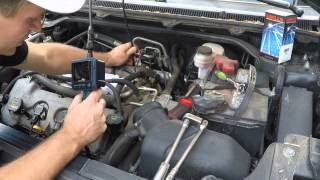

🎬 Follow this step-by-step guide to replace your rear ignition coils.Should I replace just the bad coil or all six?
If a front coil fails and your vehicle has low mileage, replacing just the single coil is a reasonable option. However, on higher-mileage vehicles or if a rear coil fails, it is strongly recommended to replace all six coils and spark plugs at the same time. The coils are all the same age, and the labor involved in accessing the rear bank makes it cost-effective to do the full job at once.
What is a coil boot and should I replace it?
The rubber boot connects the coil to the spark plug. Over time, it can crack or tear, allowing spark to escape, which causes a misfire. If the coil itself is still good, you can sometimes just replace the boot and the internal spring as a cheaper repair. However, if the coil is old or you're already doing the labor, replacing the entire coil assembly is often the more reliable long-term solution.
Helpful Videos
Technical Specifications
OEM Part Numbers: 7T4Z-12029-E 7T4Z-12029-F AA5Z-12029-A BL3Z-12029-C DG520
The Ford Flex 3.5L V6 (both naturally aspirated and EcoBoost) uses a coil-on-plug ignition system with six individual coils, one for each spark plug. The coils are held in place by an 8mm bolt. Accessing the rear bank (cylinders 1-2-3) requires removal of the upper intake manifold.
