Toyota Corolla Window Motor Guide for 2009-2019 Models
Everything you need to know before replacing your 2009-2019 Toyota Corolla's window motor.
- A failing window motor often makes grinding noises or moves the window slowly before it fails completely.
- Check if your Corolla is affected by the power window SWITCH recall, which is a separate issue from the motor.
- Replacing the entire motor and regulator assembly is the recommended and easier DIY repair.
- Aftermarket brands like Dorman and Cardone offer a significant cost saving over OEM parts, but have mixed reviews on longevity.
Is Your Corolla's Window Acting Up?
A failing window motor in the 2009-2019 Toyota Corolla is a common issue as these cars age. The symptoms usually start small but can quickly become a major annoyance, or even a security risk if the window is stuck open. Understanding the signs of failure can help you diagnose the problem correctly.
Symptoms of a Bad Window Motor
- Slow or Jerky Movement: The window moves much slower than it used to, or it stutters on its way up or down. This can be a sign that the motor is getting weak or there's friction in the window tracks.
- Grinding or Clicking Noises: You press the switch and hear a grinding, clicking, or whirring sound from inside the door, but the window barely moves or doesn't move at all. This often means the motor is working, but the regulator's gears or cables are broken.
- Window Drifts Down: You close the window, but it slowly slides back down on its own. This indicates the regulator can no longer hold the weight of the glass.
- No Sound, No Movement: You press the switch and nothing happens. This could be the motor, but it's also important to check the fuse and the window switch first. 🎬 Watch: How to diagnose and repair your Corolla's power windows.
- Window Drops Into Door: In cases of complete failure, the window may suddenly fall into the door panel. This is a clear sign the regulator assembly has broken.
Important: Check for the Power Window SWITCH Recall
Many 2009-2011 Toyota Corollas were part of a major safety recall for the master power window switch on the driver's door, not the motor itself. The switch could short circuit, potentially causing it to overheat and melt, which poses a fire risk. If your window switches feel sticky or don't work consistently, contact a Toyota dealer with your VIN to see if your car was affected and if the free recall repair was performed. This is a separate issue from a worn-out window motor.
Choosing the Right Aftermarket Part
When replacing your Corolla's window motor, you'll find the motor and regulator are often sold as a single unit. This is usually the best approach for a DIY repair, as separating the old motor from the regulator can be difficult. While OEM parts from Toyota are available, they are significantly more expensive. Aftermarket brands offer a more affordable solution.
- OEM (Original Equipment Manufacturer): This is the same part your car was built with. It offers guaranteed fit and the best quality, but at the highest cost.
- Aftermarket (Cardone, Dorman): These brands specialize in creating replacement parts that fit and function like the original but at a lower price. User reviews and forum discussions suggest that while these parts are a good value, their long-term durability can sometimes be inconsistent compared to OEM. Many DIYers choose them for the cost savings, and getting a part with a good warranty is a smart move.
Pro Tip: Before you begin the replacement, use painter's tape to hold the window glass in the fully closed position. Once you disconnect the failing regulator, the glass will be free to fall into the door if it's not secured.
Cost of Replacing a Toyota Corolla Window Motor
The cost can vary greatly depending on whether you do the work yourself or take it to a shop.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Window Motor & Regulator Assembly (DIY) | $100.95 - $130.62 |
| New OEM Window Motor & Regulator Assembly (Part Only) | $351 - $487 |
| Shop Labor | $138 - $203 |
| Total Professional Replacement (OEM Part) | $489 - $690 |
Frequently Asked Questions
Is there a recall on the 2009-2019 Corolla window motor?
No, there is no recall for the window motor itself. However, there was a significant safety recall for the driver's side master power window switch on 2009-2011 models due to a fire risk from potential short-circuiting. It is crucial to distinguish between the switch (the button you press) and the motor (the part inside the door).
Can I replace just the motor, or do I need the whole regulator assembly?
For the 2009-2019 Corolla, the motor and regulator are most commonly sold as a complete assembly in the aftermarket. This makes the repair much simpler, as you won't have to disassemble the old unit. The entire assembly is removed and replaced as one piece.
🎬 See this step-by-step regulator replacement for 2007-2013 models.How do I know if it's the motor or the switch that's bad?
A good first test is to listen carefully. Press the switch and listen for any sound inside the door. If you hear a click, whirring, or grinding noise, the switch is likely sending power and the motor or regulator is the problem. If you hear absolutely nothing from any of the window switches, the problem could be the switch itself, a blown fuse, or a wiring issue.
Is replacing the window motor a difficult DIY job?
For a DIYer with some experience, it is a manageable job that takes 1-2 hours. The process involves removing the interior door panel, carefully peeling back the plastic vapor barrier, securing the window glass, and then unbolting the motor/regulator assembly. There are many helpful video guides available for this specific repair.

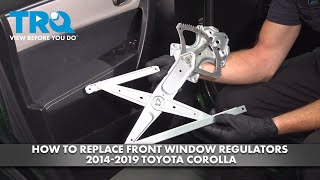

🎬 Watch: Front window regulator replacement guide for 2014-2019 Corollas.Helpful Videos
Technical Specifications
OEM Part Numbers: 85720AE010
This is a power window motor, often sold as an assembly with the window regulator. It is specific to door position (e.g., Front Left, Rear Right). Ensure you are ordering the correct part for your vehicle's specific door.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
