Cadillac Escalade Transfer Case Motor Guide (2009-2020)
If your Escalade's 'Service 4WD' light is on or it won't shift into four-wheel drive, the transfer case motor is a likely suspect.
- The 'Service 4WD' light is the primary indicator of a problem; have the codes scanned to confirm the issue is the motor.
- A failing motor can leave your Escalade stuck in its current drive mode, which can be an issue in changing weather conditions.
- High-quality aftermarket brands are a viable alternative to the more expensive OEM part, which has its own documented issues.
- Replacement is a manageable DIY task for those with basic tools, potentially saving on labor costs.
Is Your Escalade's 4WD System Acting Up?
A common issue on the 2009-2020 Cadillac Escalade is the 'Service 4WD' message appearing on the dash. While several things can cause this, a failing transfer case motor is a frequent culprit. This motor, also called a transfer case actuator, is responsible for engaging your four-wheel-drive system. When it wears out, it can leave you without 4WD when you need it most.
Symptoms of a Failing Transfer Case Motor
Before the motor fails completely, it usually gives a few warning signs. The most obvious is the 'Service 4WD' light on your instrument cluster. You may also notice that the system is slow to engage, or you might hear grinding or clicking noises from under the vehicle when you try to switch modes. In some cases, the vehicle may become stuck in one drive mode and refuse to switch.
Don't Ignore the Warning Light
While you can usually still drive with a 'Service 4WD' light on, the system is disabled. Ignoring the problem could lead to being stuck without 4WD in bad weather or potentially cause more complex electronic issues if the motor fails intermittently.
Choosing the Right Aftermarket Part
When replacing the transfer case motor, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For the Escalade, the OEM part is known to have some issues, including a customer satisfaction program for some 2017 models where the motor brake could stick. This makes high-quality aftermarket parts a very sensible option.
- Dorman: Dorman is a well-known aftermarket brand that produces direct-replacement transfer case motors. Reviews for Dorman motors on other vehicles are often mixed, with some users reporting long-term success and others experiencing premature failure. They are typically the most budget-friendly option.
- Standard Ignition (SMP): Generally considered a higher-tier aftermarket brand, Standard Ignition parts often meet or exceed OEM specifications. They can be a reliable choice for owners looking for a balance of quality and value.
Pro Tip: Before ordering, check the RPO (Regular Production Option) codes in your glove box. For many GM trucks and SUVs, the code 'NP8' indicates the electronic shift transfer case that uses this motor. Also, verify the OEM part number for your specific year, as several have been used.
Cost of Replacing the Transfer Case Motor
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco) | $350 - $680 |
| New Aftermarket | $414 - $450 |
| Shop Labor | $85 - $125 |
Frequently Asked Questions
Is replacing the transfer case motor a DIY job?
Yes, for someone with moderate mechanical skill. The motor is typically held on by a few bolts 🎬 Watch: Pro tips for a smooth transfer case motor installation and has a single electrical connector. The main challenge is accessing it, which may require removing the front driveshaft first. The job usually takes about 1-2 hours.
Were there any recalls for the Escalade transfer case motor?
There have been no specific NHTSA safety recalls for the transfer case motor itself across the 2009-2020 model years. However, GM did issue a Customer Satisfaction Program (17048) for some 2017 models due to a motor brake issue that could cause the vehicle to roll if parked in 4LO. There were also several Technical Service Bulletins (TSBs) related to software updates and diagnosing 'Service 4WD' messages.
What are common diagnostic codes for a bad transfer case motor?
Common Diagnostic Trouble Codes (DTCs) include C0327 🎬 See how to diagnose a C0327 code and motor failure (Encoder Circuit Failure), C0306 (Motor A/B Circuit), and C0398 (Range Position Correlation Fault). A professional scan tool is needed to read these codes from the Transfer Case Control Module (TCCM).
Could something else cause the 'Service 4WD' light?

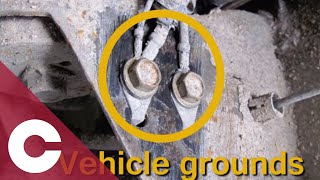

Yes. The issue could also be the selector switch on the dash, a bad ground wire, a problem with the Transfer Case Control Module (TCCM), or an internal mechanical failure in the transfer case. However, the motor and its integrated position sensor are the most common points of failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84109212 23369032 19258696 19133168
This is an electric motor assembly, often including an integrated electronic position sensor (encoder). It bolts directly to the vehicle's transfer case.
