Jaguar XF (2009-2020) Radiator: A Complete Replacement Guide
Don't let a failing radiator sideline your XF; understand the common issues and choose the right part for the job.
- Coolant leaks on the Jaguar XF are more often caused by brittle plastic pipes, the thermostat housing, or water pump than the radiator itself.
- When replacing the radiator, it is highly recommended to also replace other plastic cooling system components to avoid future repairs.
- Only use coolant that meets the Jaguar specification STJLR.651.5003 (typically orange or pink OAT) to prevent system damage.
- Premium aftermarket brands like Mahle and Nissens offer OEM-quality fit and performance for a lower cost than dealer parts.
Is Your Jaguar XF Radiator Failing?
A radiator problem can quickly lead to serious engine damage if ignored. Watch for these clear warning signs that your radiator or cooling system needs attention.
- Engine Overheating: This is the most serious sign. If your temperature gauge enters the red or you see an “Engine Temperature High” warning, pull over and shut off the engine as soon as it is safe to do so.
- Coolant Leaks: Finding puddles of pink or orange fluid under the front of your car is a sure sign of a leak. These leaks often happen where the plastic side tanks are joined to the aluminum center of the radiator.
- Low Coolant Warning: The “Coolant Level Low” message on your dashboard is often the first indication of a leak somewhere in the system.
- Sweet Smell: Coolant has a distinct sweet odor. If you smell this coming from your engine bay, it's likely leaking onto hot components and burning off.
- Steam from Under the Hood: Visible steam is a sign that coolant is escaping and turning to vapor on the hot engine.
A Note on Jaguar Cooling System Plastics
While the radiator itself can fail, the most common source of coolant leaks on the 2009-2020 Jaguar XF is not the radiator core. Jaguar used plastic for many critical cooling system parts, including the water pump, thermostat housing, and various pipes and hoses. These plastic parts become brittle over time from heat and age, leading to cracks and leaks. If you have a coolant leak, it is essential to inspect the entire system, not just the radiator. Many owners choose to replace all major plastic cooling components at the same time as the radiator to prevent future failures.
Choosing the Right Aftermarket Radiator
When shopping for a new radiator, you'll find several brands available. They generally fall into two quality tiers. OEM (Original Equipment Manufacturer) parts from a dealer are an option, but they are significantly more expensive. Aftermarket parts can provide the same fit and function for a much lower price.
Premium Aftermarket Brands (OEM-Quality)
These brands are known for manufacturing parts that meet or exceed the original specifications. They are a reliable choice for a direct, quality replacement.

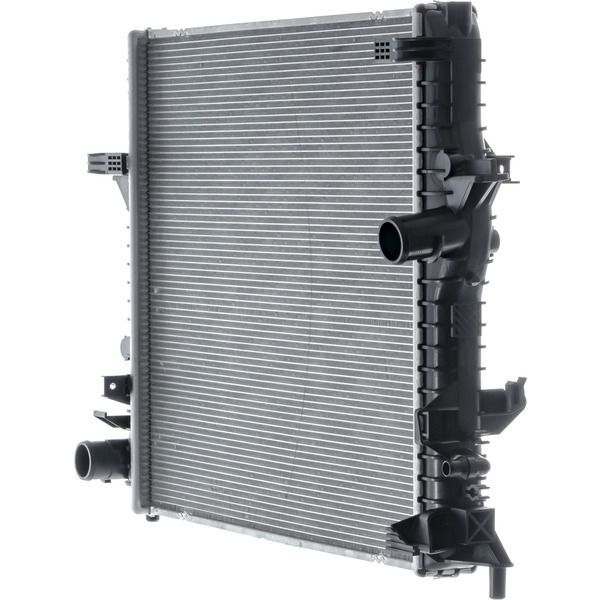

- Mahle: Mahle (which includes Behr) is a well-known German company that is an OEM supplier for many car manufacturers, including Jaguar. Their radiators are trusted for their precise fit, quality materials, and long-term durability, making them a top choice.
- Nissens: Nissens is another premium brand from Europe known for excellent cooling system components. Their radiators are praised for having an OE-like fit, with mounting points and connections in the exact right places, which makes installation easier. They often feature reinforced plastic tanks and advanced core designs for efficient cooling.
Standard & Economy Brands
These brands offer a more budget-friendly solution. While they can be a good value, quality and fit can sometimes be inconsistent.
- APDI: Reviews for APDI are mixed. Some users have reported issues with incorrect fittings that can cause leaks. It is generally considered a lower-cost option, but careful inspection upon arrival is recommended.

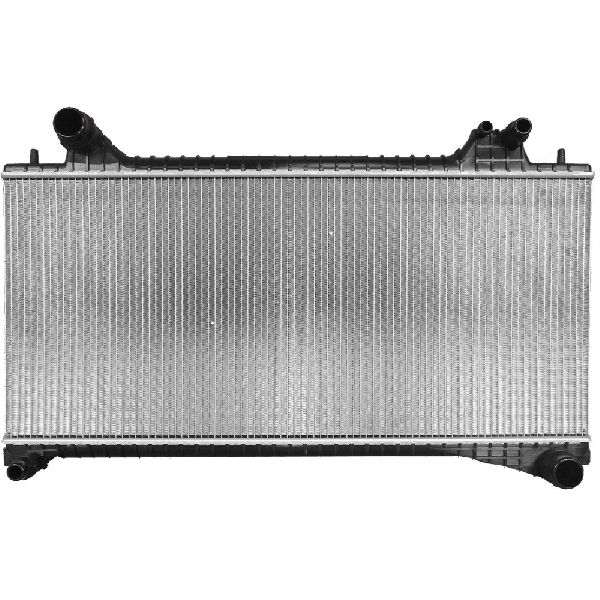

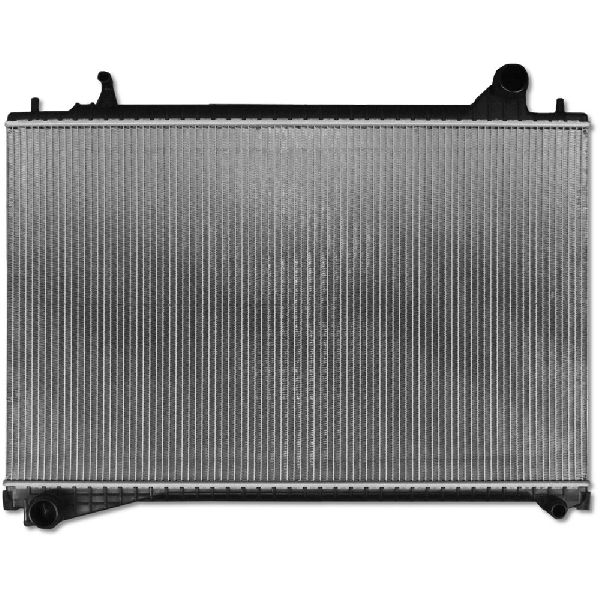

- Global Parts & One Stop Solutions: Less information is available about the specific quality of these brands for the Jaguar XF. They fall into the economy category and can be a viable option if budget is the primary concern.
Common Ordering Mistake
Before ordering, confirm if your XF is supercharged. Supercharged models may have auxiliary radiators in addition to the main engine radiator. Be sure you are ordering the correct part for your specific needs.
Jaguar XF Radiator Replacement Costs
The cost to replace the radiator in a Jaguar XF can vary widely based on the parts you choose and who performs the labor.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Radiator | $213 - $565 |
| New OEM Radiator | $1000 - $1570+ |
| Used OEM Radiator | $100 - $300 |
| Shop Labor | $400 - $800 |
| Total Professional Job (Aftermarket) | $613 - $1365 |
| Total Professional Job (OEM) | $1400 - $2370+ |
Cost estimates are approximate and can vary based on your location and specific vehicle configuration.
Frequently Asked Questions (FAQ)
Are there any recalls on the 2009-2020 Jaguar XF radiator?
No, there are no specific recalls for the main radiator on the Jaguar XF for these model years. There have been recalls for other items like airbags and fuel system components, and some Technical Service Bulletins (TSBs) have been issued for other plastic parts of the cooling system, such as coolant pipes and the expansion tank.
Can I use any type of coolant in my Jaguar XF?
No. It is very important to use the correct coolant to prevent corrosion and damage to the engine and cooling system components. The Jaguar XF requires an OAT (Organic Acid Technology) coolant that meets specification STJLR.651.5003. This coolant is typically orange or pink.
My radiator was just replaced, but the car is still overheating. What's wrong?
The most common reason for overheating after a radiator replacement is air trapped in the cooling system. The system needs to be properly “bled” to remove all air pockets. Other possibilities include a faulty thermostat that wasn't replaced, a failing water pump, or another leak that was missed during the initial repair.
Is replacing the radiator a DIY job?
Yes, for an experienced DIY mechanic, this job is feasible. It typically involves draining the coolant, removing hoses, and potentially the cooling fans and shrouds to access the radiator, which often drops out from the bottom of the car. However, given the complexity and the critical nature of the cooling system, if you are not comfortable, it is best to leave it to a professional.

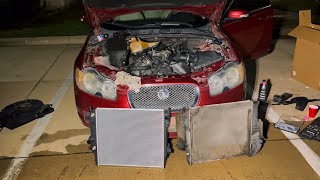

Helpful Videos
Technical Specifications
OEM Part Numbers: C2D38733 C2Z10787 C2S1231 C2S20551 C2S31599
The Jaguar XF uses a radiator with an aluminum core and plastic end tanks. The core is constructed using brazed aluminum tubes and fins. Supercharged models may also utilize one or more smaller auxiliary radiators for the intercooler system. Always verify the correct part for your specific engine and model year before purchasing.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
