Engine Coolant Temperature Sensor for 2009-2023 Chevrolet Express 4500
An essential sensor for your van's engine health, fuel economy, and performance.
- A bad ECT sensor can cause overheating, poor fuel economy, and a Check Engine Light.
- For the 6.0L V8, the sensor is on the driver's side cylinder head; replacement is a simple DIY task for most.
- When replacing, inspect the connector for coolant contamination, which is a known issue.
- Spending a few extra dollars on a premium brand like ACDelco or Delphi is recommended for reliability.
Is Your Express 4500's Engine Acting Up? It Could Be the Coolant Temp Sensor
A failing Engine Coolant Temperature (ECT) sensor can cause a surprising number of problems in your 2009-2023 Chevrolet Express 4500. Because this sensor provides such critical data to the engine's computer, a bad reading can lead to poor performance and potential damage if ignored. Symptoms often start small but can become more serious over time.
Symptoms of a Failing ECT Sensor
If your van's ECT sensor is going bad, you might notice one or more of the following issues:
🎬 Watch: 8 common symptoms of a bad coolant temperature sensor- Check Engine Light: This is often the first sign. The computer will detect a signal from the sensor that is out of the expected range and trigger a light on your dashboard. Common codes include P0117 (low input), P0118 (high input), and P0128 (coolant temperature below thermostat regulating temperature).
- Poor Fuel Economy: If the sensor incorrectly tells the computer the engine is cold, the computer will enrich the fuel mixture, causing the engine to use more gas than necessary.
- Black Smoke from Exhaust: A very rich fuel mixture can result in unburnt fuel exiting through the exhaust, which looks like black smoke.
- Engine Overheating: A faulty sensor might fail to signal the computer to turn on the cooling fans when needed, causing the engine to overheat.
- Rough Idling or Stalling: Incorrect fuel and timing adjustments can make the engine run poorly, especially when idling.
Known Issue: Coolant Wicking
A GM Technical Service Bulletin (TSB) notes that on some models, coolant can leak internally through the sensor and travel up the wiring harness to the main engine computer (ECM). This can cause corrosion and short circuits in the ECM connector, leading to a variety of electrical problems. When replacing the sensor, it's crucial to inspect the connector for any signs of green or white corrosion or moisture.
Choosing the Right Aftermarket Sensor
For a workhorse vehicle like the Express 4500, reliability is key. While you can save a few dollars with a budget part, this sensor is critical enough that spending a little more for a quality brand is a smart investment. The difference in price between a budget and a premium sensor is often less than $20.
Brand Quality Tiers
- Premium / OEM-Equivalent Brands: ACDelco is the original equipment manufacturer (OEM) for GM vehicles. Choosing ACDelco is the closest you can get to the factory part. Delphi was also a major GM parts supplier and is widely considered to be of similar quality. Brands like Bosch and NGK/NTK also have a strong reputation for producing high-quality sensors that meet or exceed OEM specifications.
- Quality Mid-Range Brands: Standard Motor Products (SMP) and Beck Arnley are well-respected aftermarket brands that offer a good balance of quality and price. They often provide parts that are equivalent to the original in fit and function.

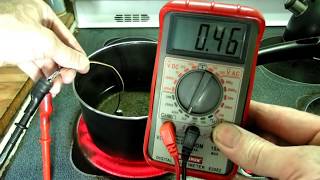

- Economy Brands: Brands like Four Seasons, Facet, and Walker Products are typically focused on being the most affordable option. While they can work, some owners report issues with out-of-the-box accuracy or longevity 🎬 Learn how to test your sensor using a basic multimeter with budget-tier electronics. For a critical part like the ECT sensor, it's generally recommended to choose a brand from the premium or mid-range tiers.
A Note on ACDelco Parts
ACDelco offers different product lines. "GM Genuine Parts" are the exact same parts used on the assembly line. "ACDelco Professional" parts are a high-quality aftermarket alternative that meets strict standards. For a critical sensor, either is a solid choice. Be aware that even OEM-branded parts may be manufactured in various countries.
Typical Replacement Costs
Replacing the ECT sensor is a relatively inexpensive repair. The part itself is affordable, and labor is minimal.
| Item | Estimated Cost |
|---|---|
| New Aftermarket ECT Sensor | $12 - $42 |
| New OEM (ACDelco) ECT Sensor | $18 - $50 |
| Shop Labor | $50 - $125 |
| Total Estimated Cost (DIY) | $12 - $42 |
| Total Estimated Cost (Shop) | $62 - $175 |
Cost estimates are for reference only and may vary based on location, vehicle engine, and specific part supplier.
Frequently Asked Questions (FAQ)
Where is the ECT sensor located on my Express 4500?
The location depends on your engine. For the popular 6.0L V8 gas engine, the ECT sensor is located on the driver's side cylinder head, near the front of the engine, right by the exhaust manifold. It can be accessed from the side of the vehicle, sometimes by going through the fender well. On other engines, it may be near the thermostat housing. Always confirm the location for your specific engine before starting work.
Is this a difficult part to replace myself?
For most people with basic tools, this is a very feasible DIY job. 🎬 See this step-by-step replacement walkthrough for the Chevrolet Express The difficulty is low, typically requiring a deep socket (often 19mm) and a ratchet. The main challenge is reaching the sensor, which can be in a tight spot. You will lose a small amount of coolant, so have a drain pan ready and be prepared to top off the coolant afterward. The key is to swap the old and new sensors quickly to minimize coolant loss.
Can I drive with a bad ECT sensor?
It is not recommended for long distances. While the van may still run, you risk poor fuel economy, increased emissions, and most importantly, potential engine overheating if the fans don't turn on. It's best to get it replaced as soon as possible to avoid causing more expensive damage.
Are there any recalls for this part?
As of late 2024, there are no specific NHTSA recalls for the Engine Coolant Temperature Sensor on the 2009-2023 Chevrolet Express 4500. However, there is a GM Technical Service Bulletin (PIE0689) that addresses issues with coolant leaking from the sensor and contaminating the wiring harness, which can cause other electrical problems.

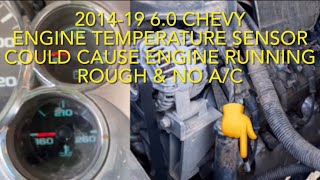

Helpful Videos
Technical Specifications
OEM Part Numbers: 12608814 19236568 25186240
The sensor is a two-wire thermistor that changes resistance based on coolant temperature. It is typically located on the driver's side cylinder head on V8 models. The connector should be inspected for corrosion or coolant intrusion upon replacement.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
