Guide to 2010-2012 Lexus HS250h Disc Brake Hardware Kits
Stop brake noise and uneven wear on your HS250h by understanding and choosing the right hardware.
- Always replace your disc brake hardware when you replace your brake pads to ensure quiet operation and even wear.
- Quality aftermarket brands like Beck Arnley, Dynamic Friction, and Centric offer excellent value and performance for your HS250h.
- Brake noise, uneven pad wear, and brake drag are key symptoms of failed hardware.
- The 2010 HS250h had a recall for its ABS software, which is unrelated to the mechanical hardware but is important context for the vehicle's brake system.
Is This a Part I Need to Worry About?
Yes. While your Lexus HS250h is known for its reliability, the brake hardware is a wear item. These small metal clips and springs are exposed to intense heat, moisture, and road salt. Over time, they lose their spring tension, rust, and get clogged with brake dust. Reusing old hardware during a brake job is a common mistake that leads to noise and premature pad wear. For the best performance and a quiet, long-lasting brake job, you should always install a new hardware kit with new brake pads.
Symptoms of Failing Brake Hardware
Failing brake hardware often mimics other brake problems. If you notice these signs, there's a good chance your hardware is worn out, rusted, or was not installed correctly.
- Rattling or Clicking: A distinct rattling or clicking sound when you go over bumps or apply the brakes lightly can mean the clips are no longer holding the pads securely.
- Squealing or Grinding: While often a sign of worn pads, constant squealing can also be caused by hardware that isn't allowing the pads to move freely.
- Uneven Pad Wear: If one pad on an axle is much more worn than the other, it's a classic sign of a stuck caliper slide pin or binding hardware.
- Brake Drag: A feeling that the car is being held back, or a burning smell from one of the wheels, can be caused by hardware that prevents the pads from retracting from the rotor.
Vehicle-Specific Brake System Notes for the HS250h
The 2010 Lexus HS250h was part of a safety recall for its anti-lock brake (ABS) system software. Owners reported an inconsistent brake feel, especially on slippery surfaces. This was fixed with a software update from Lexus and is not related to the mechanical brake hardware. Separately, many owners have experienced issues with the brake booster assembly, causing a hissing noise or frequent pump cycling. These are known issues with the hybrid braking system, but they are not caused by the disc brake hardware kit.
Choosing the Right Aftermarket Hardware Brand
You don't need to buy from the dealer to get quality parts. Many aftermarket brands offer excellent hardware kits for your Lexus. They generally fall into a few quality tiers.
Tier 1: OEM-Quality or Premium Aftermarket

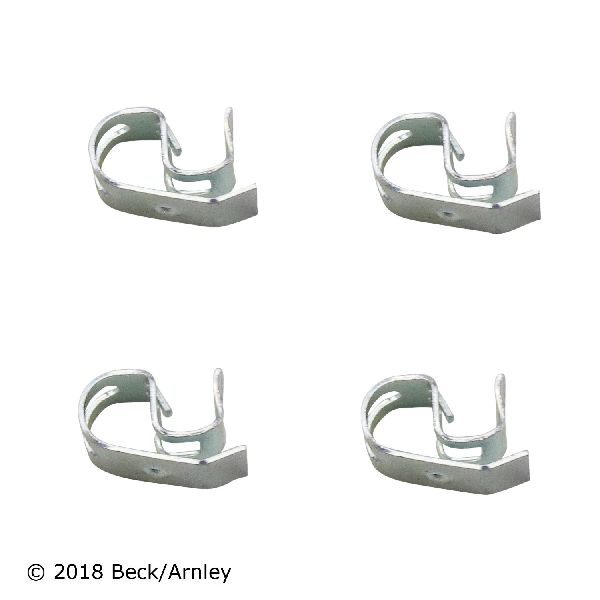

- Beck Arnley: Often considered a top-tier choice, Beck Arnley is known for sourcing parts that match the original equipment form, fit, and function. They are a reliable option for a hassle-free repair.

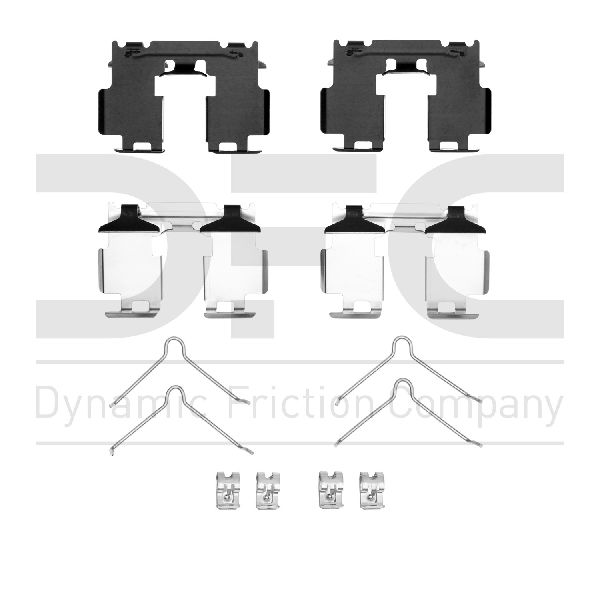

- Dynamic Friction (DFC): A brand that has gained a strong reputation for quality. Their hardware kits are well-regarded, and many users find their overall brake products to offer performance similar to or better than stock.

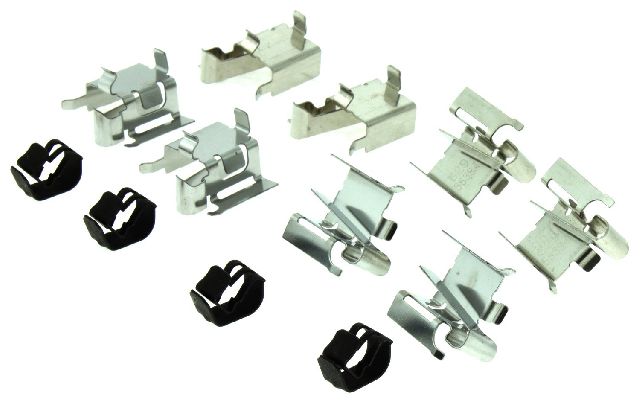

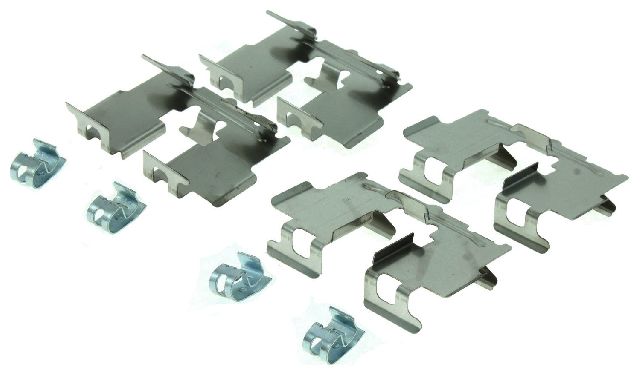

- Centric (Posi-Quiet/Premium): Centric is a major player in the aftermarket brake world. Their premium lines, including Posi-Quiet hardware, are designed to meet or exceed OEM standards and are a popular choice for a quiet, reliable brake job.
Tier 2: Standard Aftermarket / Good Value
- Carlson: A long-standing brand that provides dependable, budget-friendly hardware. Forum users and mechanics often recommend Carlson as a solid, no-frills choice that fits well and gets the job done.
- Dorman: Dorman offers a huge range of parts, but their quality can be inconsistent. While their hardware will likely fit, some users report issues with material quality compared to other brands. It's a viable option, but the brands above are generally more trusted for brake components.
Pro Tip: No matter which brand you choose, proper lubrication is critical. Use a high-temperature silicone-based brake lubricant on the caliper slide pins and at the contact points where the brake pad ears sit in the hardware clips. This prevents rust and ensures smooth movement.
Cost of Replacing Disc Brake Hardware on a 2010-2012 Lexus HS250h
The hardware kit itself is inexpensive. The cost comes from the labor involved in a brake job, as the hardware is replaced at the same time as the pads and rotors.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $10 - $35 |
| New OEM Hardware Kit | $40 - $70 |
| Shop Labor (as part of a brake job, per axle) | $150 - $300 |
Costs are estimates and can vary based on your location and the specific repair shop. Labor costs reflect the time for a standard brake pad and rotor replacement.
Frequently Asked Questions
Do I have to replace the hardware with every brake job?
It is highly recommended. Old hardware loses its tension and can be corroded, which can cause the new pads to wear unevenly or make noise. Given the low cost of a new kit, it's cheap insurance for a proper brake job.
What is the difference between front and rear hardware kits?
The front and rear brakes on your HS250h are different sizes and use different calipers. Therefore, the hardware kits are not interchangeable. You must buy a kit specifically designed for the front or rear axle.
Can I just clean and reuse my old hardware?
While you can try to clean old hardware, it's generally not worth the effort. The metal clips can become brittle from heat cycles and may break. Rust and pitting can be difficult to remove completely, and the clips will never have the same tension as new ones.
What are abutment clips?
Abutment clips, also known as pad support clips, are the main pieces of metal in the hardware kit. They snap into the caliper bracket and provide a smooth, clean surface for the brake pads to slide on. They are essential for preventing noise and ensuring free movement of the pads.
Technical Specifications
OEM Part Numbers: 04478-33100 (Front Overhaul Kit)
Kit typically includes abutment clips (pad support clips) and sometimes caliper pin boots or anti-rattle springs. Front and rear kits are sold separately and are not interchangeable.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
