A Guide to the 2010-2012 Lexus HS250h Engine Timing Chain Kit
Understand the needs of your HS250h's 2AZ-FXE engine to prevent costly timing chain failures.
- Listen for a rattling noise on cold starts, as this is the earliest warning sign of a potential timing chain issue.
- The 2AZ-FXE engine can consume oil; check your oil level frequently to protect the timing chain tensioner.
- If you get DTC codes P0016 or P0017, it's a strong indicator of a timing problem that needs immediate attention.
- This is an interference engine, so a failed timing chain can cause catastrophic engine damage. Do not delay repairs.
Is Your Lexus HS250h Timing Chain Failing?
The timing chain in the 2AZ-FXE engine is designed to last a long time, but it's not invincible. A common first sign of trouble is a rattling noise from the engine 🎬 Watch: When to address a cold start engine rattle. for a few seconds on a cold startup. This often points to a worn timing chain tensioner 🎬 See how to replace a 2.4L timing chain tensioner. that isn't holding the chain tight until oil pressure builds up. If you ignore this, the chain can stretch or slap against its guides, leading to more severe problems.
Known Issue: Oil Consumption
The 2AZ-FXE engine, like its close relative the 2AZ-FE, can be prone to excessive oil consumption. This is often due to issues with the piston rings. Low engine oil levels can starve the hydraulic timing chain tensioner of the pressure it needs to function, accelerating wear on the entire timing system. Regularly checking your oil level is crucial for the health of your timing chain.
Choosing the Right Aftermarket Timing Chain Kit
When it's time for a replacement, you'll find several aftermarket options. Since the timing chain is so critical and labor-intensive to replace, this is not a part to save money on with a low-quality option. A failure can destroy your engine.
Here's a look at the available brands:

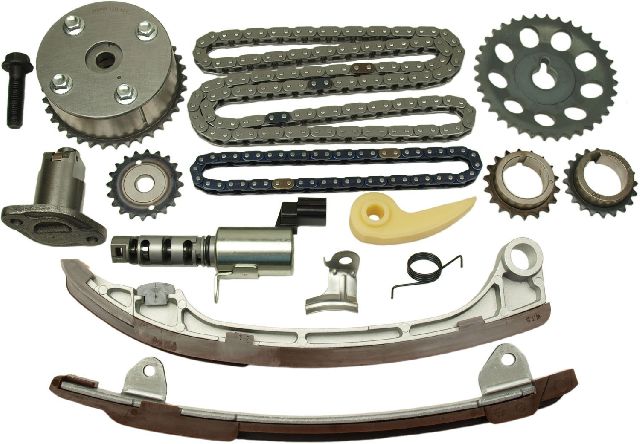

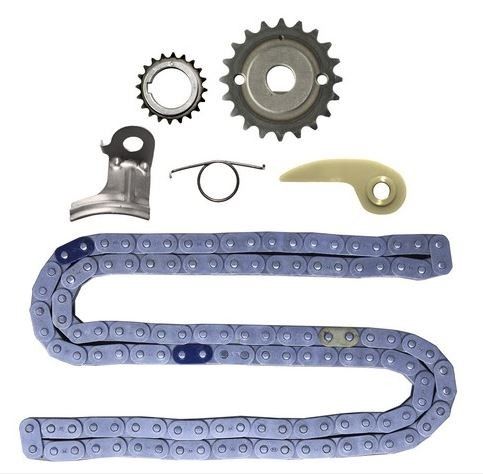

- Premium Brands (Cloyes, INA): Cloyes is a well-regarded specialist in timing components, often considered a top-tier aftermarket choice. INA is also a respected manufacturer, frequently supplying original parts to automakers. These brands are known for quality materials and engineering that meets or exceeds OEM standards. They are a reliable choice for a long-lasting repair.

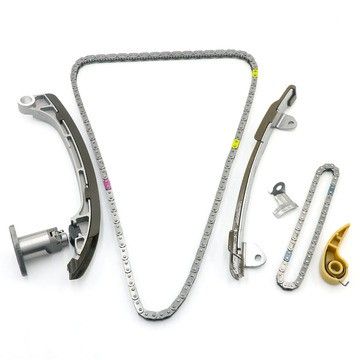

- Standard Brands (Gates, Dayco): Gates and Dayco are major players in the aftermarket. While famous for belts, their timing kits are generally considered reliable and a good balance between cost and quality. They offer a dependable solution for owners looking for a solid repair without the premium price tag.
Pro Tip: Always buy a complete timing chain kit. These kits include the chain(s), tensioners, and guides. Replacing all components at once is essential because a new chain on old, worn sprockets or guides will fail prematurely. Some kits may not include the Variable Valve Timing (VVT) sprockets, so check the contents before purchasing.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Kit | $58.83 - $367.44 |
| Shop Labor | $800 - $1500+ |
| Total Replacement Cost | $860 - $1870+ |
Note: Costs are estimates and can vary based on your location and the specific repair shop. Labor is a significant portion of the cost due to the complexity of the job.
Frequently Asked Questions
Do I need to replace my timing chain?
Unlike timing belts, timing chains don't have a strict replacement interval. You should replace it if you notice symptoms like a startup rattle, persistent rattling from the engine, or if you have diagnostic trouble codes like P0016 or P0017, which indicate a correlation issue between the crank and cam sensors. 🎬 Watch: Diagnosing P0016 and P0017 codes on this engine. These codes can mean the chain has stretched or jumped a tooth.
Is this a DIY-friendly job?
No, this is a complex and labor-intensive job for this vehicle. It requires specialized tools, significant disassembly of the engine, and precise knowledge of setting engine timing. An error during installation can lead to severe engine damage. This job is best left to an experienced professional mechanic.
Are there any recalls for the timing chain?
There are no specific recalls for the timing chain on the 2010-2012 Lexus HS250h. However, there was a Technical Service Bulletin (TSB) related to excessive oil consumption which, if not addressed, could lead to timing chain problems. There have been other recalls for this vehicle related to the transaxle and suspension, but not the timing components.
What is an interference engine?
The 2AZ-FXE is an interference engine. This means that if the timing chain breaks or jumps time, the pistons can strike the open valves, causing catastrophic and expensive engine damage. This is why addressing timing chain issues promptly is critical.
Helpful Videos
Technical Specifications
OEM Part Numbers: 13540-0H010
Engine: 2.4L 4-Cylinder (2AZ-FXE)
