A Guide to the Windshield Washer Pump for the 2010-2013 Kia Soul
If your washers have stopped spraying, this guide will help you diagnose the problem and choose the right replacement pump.
- Before replacing the pump, always check for a blown fuse and listen for a humming sound to diagnose the issue correctly.
- A common problem is a clogged inlet filter, which can sometimes be cleaned, but replacing the pump is often a more permanent fix.
- Accessing the pump requires removing the front passenger wheel and fender liner, making it a straightforward DIY job.
- Aftermarket pumps from brands like Trico offer a reliable and cost-effective alternative to more expensive OEM parts for this component.
Symptoms of a Failing Washer Pump
When the washer pump in your Kia Soul starts to fail, the signs are usually straightforward. The most common issue is that nothing happens when you try to use the washers. Here’s what to look for:
- No sound, no fluid: If you activate the washer and hear complete silence, the pump motor has likely failed or isn't receiving power. Before condemning the pump, always check the fuse first.
- Pump hums, but no fluid sprays: If you can hear the pump motor running but no fluid comes out, the problem could be a clog. The pump has a small inlet filter that can get blocked with debris over time. It could also mean the pump's internal impeller is broken or the hoses are blocked or disconnected.
- Leaking fluid: Puddles of blue or green washer fluid under the front passenger side of your Soul are a clear sign of a leak. The pump itself or the rubber grommet where it seals into the reservoir can crack and leak with age.
- Weak spray: If the spray is weak or inconsistent, it often points to a clogged pump filter or failing motor that can no longer generate enough pressure.
Known Issue: Clogged Inlet Filter
🎬 Watch: How to diagnose and unclog your washer motor filter.Kia issued a Technical Service Bulletin (TSB BOD 095) for many models, including the 2010-2012 Soul, regarding clogged washer pump inlet filters. Debris from certain types of washer fluid can build up on the small filter screen, restricting flow. The TSB advises cleaning the reservoir and replacing the filter, not the entire pump. However, if the pump has been straining against a clog for a long time, the motor may be weakened.
Choosing a New Aftermarket Pump
For a vehicle like the 2010-2013 Kia Soul, a new aftermarket washer pump is a cost-effective and reliable choice. The original equipment (OEM) pump is not known for exceptional longevity, and the simple design means aftermarket manufacturers can produce quality replacements at a lower cost. There is little functional difference between an OEM and a quality aftermarket pump for this specific part.
Trico is a well-known brand in the wiper and washer industry. Their aftermarket washer pumps are designed to match OEM specifications for fit and function, making them a dependable option for your Soul. They are built to be a direct-fit replacement, requiring no special modifications to install.
🎬 See this step-by-step walkthrough for replacing a washer pump.Replacement Cost
Replacing the washer pump is a relatively inexpensive repair. The part itself is affordable, and if you're doing it yourself, the only other cost is your time. If you take it to a shop, labor will be the biggest part of the bill.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Trico, etc.) | $35 - $42 |
| New OEM | $55 - $70 |
| Used OEM | $20 - $40 |
| Shop Labor | $110 - $161 |
Pro Tip: When replacing your pump, it's a good idea to also replace the small rubber grommet that seals the pump to the reservoir. This grommet can become brittle and is a common source of leaks. Many aftermarket pumps include a new grommet.
Frequently Asked Questions
Is this a difficult repair to do myself?

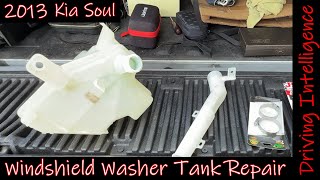

No, this is a very DIY-friendly job for most people. It typically takes less than an hour. The main steps involve safely jacking up the front passenger side, removing the wheel, and pulling back the plastic fender liner to access the washer fluid reservoir 🎬 Watch: How to remove and replace the washer reservoir tank. and pump. The pump simply pulls out of the reservoir and is connected by one electrical plug and two hoses.
Where is the washer pump located on my 2010-2013 Kia Soul?
The washer pump is located at the bottom of the washer fluid reservoir. You can access it by removing the front passenger-side wheel and the plastic fender liner. The pump is press-fit into a rubber grommet on the reservoir.
Do I need one pump or two for the front and rear washers?
Your Kia Soul uses a single pump with two outlets. The pump motor reverses its rotation to direct fluid to either the front or rear nozzles. When buying a replacement, ensure it is a dual-outlet pump designed for vehicles with a rear washer.
I replaced the pump and it still doesn't work. What now?
First, double-check the fuse. If the fuse is good, ensure the electrical connector is fully seated on the pump. Next, check for clogs in the hoses or at the washer nozzles themselves. Sometimes a small pin can be used to clear debris from the nozzle openings. In rare cases, the problem could be with the multifunction switch on the steering column.
Helpful Videos
Technical Specifications
OEM Part Numbers: 98510-2K000 98510-1W000 98510-2J500
Dual outlet pump for front and rear washer systems. 12V electrical connection with 2-pin connector.
