Freightliner Sprinter 3500 (2010-2014) Front Suspension Ball Joint Replacement Guide
Clunking noises and sloppy steering on your Sprinter 3500 could mean it's time for new ball joints.
- Symptoms include front-end clunking, steering wander, and uneven tire wear.
- Diagnosis is unique for Sprinters; check for side-to-side play, not up-and-down play, to avoid misdiagnosis.
- Replacing the entire control arm assembly is often easier and more cost-effective in the long run than pressing a single joint.
- A wheel alignment is mandatory immediately after replacement to ensure safety and prevent tire damage.
Is Your Sprinter 3500 Making Front-End Noises?
If you're hearing clunks, pops, or creaks from the front of your van, especially over bumps at low speeds, a worn ball joint is a likely culprit. These heavy-duty vans put a lot of stress on their front suspension components, and ball joints are a common wear item. Ignoring the symptoms can lead to bigger problems, including loss of steering control.
🎬 Watch: A breakdown of the Sprinter front end and suspension parts.A Note on Diagnosis
Sprinter ball joints are often misdiagnosed. Due to the van's suspension design, checking for up-and-down play (axial play) will show movement that is actually normal for this vehicle. The correct way to check for wear, according to Mercedes-Benz TSB LI33.00-N-066643, is to measure for side-to-side (lateral) play as the van is being lifted. More than 3mm of lateral movement means the joint is worn and needs replacement. A torn rubber boot also means the joint should be replaced.
Choosing the Right Aftermarket Ball Joint
When your original ball joints wear out, you have a choice: replace just the ball joint or the entire lower control arm assembly. For this van, dealers often only sell the complete, expensive control arm. Aftermarket brands offer both the individual joint and the full assembly, giving you more options.
Aftermarket parts for your Sprinter fall into different quality tiers:

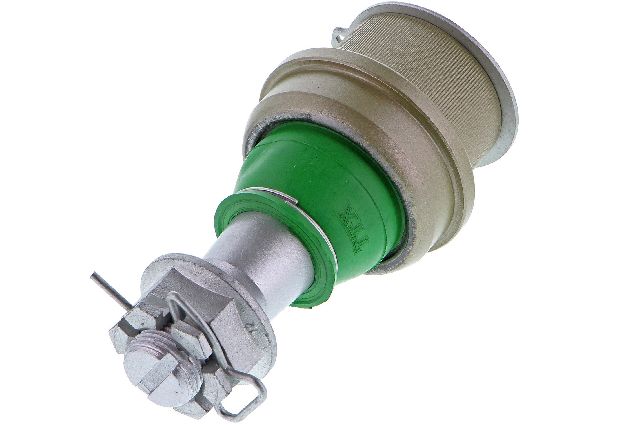

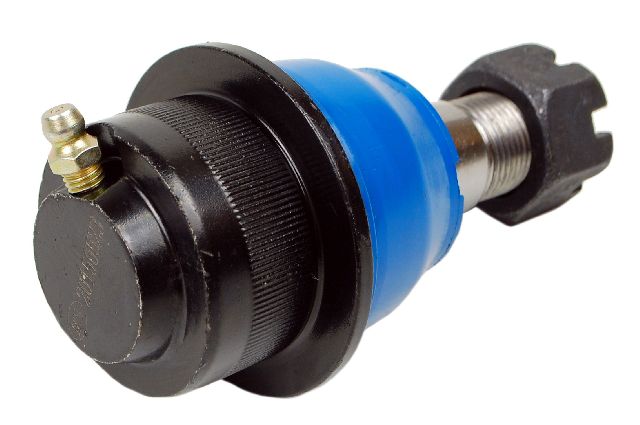

- Premium Brands (Moog, Mevotech TTX/Supreme): These brands are well-regarded in owner forums for their durability and design, which often meets or exceeds original equipment standards. Moog and Mevotech are frequently recommended for heavy-duty applications like a Sprinter 3500, making them a solid investment for longevity.
- Quality Mid-Range (Delphi, Dorman): Brands like Delphi and Dorman offer a good balance of quality and affordability. They are a reliable choice for daily driving and normal use, providing decent performance without the premium price tag.
- Economy Brands (QuickSteer, Suspensia, other store brands): These are the most budget-friendly options. While they meet basic requirements, they may not offer the same long-term durability as premium brands, which is a key consideration for a heavy commercial vehicle.
Pro Tip: Many experienced mechanics and owners recommend replacing the entire lower control arm assembly. While the part costs more than a single ball joint, it can save significant labor time and money because you don't have to press the old joint out and the new one in. It also replaces the control arm bushings at the same time.
How Much Does a Sprinter 3500 Ball Joint Replacement Cost?
The total cost depends on whether you replace just the joint or the whole arm, and if you do the work yourself or hire a shop. An alignment is mandatory after the job is done.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Ball Joint (Part Only) | $24 - $79 |
| New Aftermarket Control Arm Assembly (Part Only) | $160 - $240 |
| Shop Labor (Per Side) | $150 - $250 |
| Wheel Alignment | $120 - $180 |
| Total Professional Job (Both Sides, Joints Only) | $470 - $760+ |
| Total Professional Job (Both Sides, Control Arms) | $560 - $900+ |
Cost estimates are based on market research and may vary by location and parts supplier.
Frequently Asked Questions
Can I replace a Sprinter 3500 ball joint myself?
This is a difficult job not recommended for beginners. The ball joint is press-fit into the control arm and requires a special heavy-duty ball joint press tool to remove and install. Mistakes can be dangerous. Replacing the entire control arm is easier but still requires a good understanding of suspension work.
Is it better to replace just the ball joint or the whole control arm?
For many owners, replacing the entire control arm is the better choice. It's a faster installation, which saves on labor costs, and it also renews the control arm bushings, another key suspension component.
Are there any recalls for 2010-2014 Sprinter 3500 ball joints?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any safety recalls specifically for suspension ball joints on the 2010-2014 Freightliner Sprinter 3500.
What other parts should I inspect when replacing ball joints?
While working on the suspension, it's a good idea to inspect the sway bar links, as they can cause similar clunking noises and are a common wear item. Also check the tie rod ends, struts, and control arm bushings (if not replacing the whole arm).
Helpful Videos
Technical Specifications

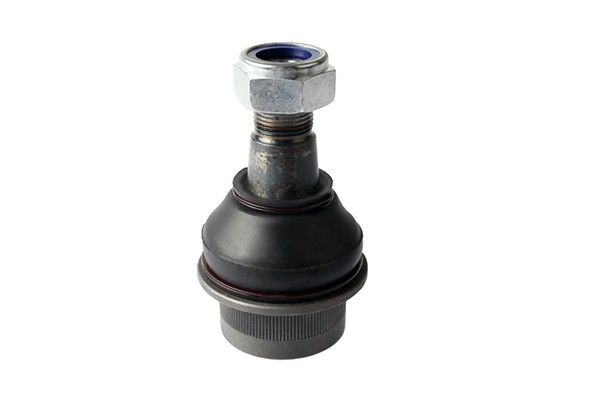

OEM Part Numbers: 9063304007
The lower ball joint is a press-fit design that connects the lower control arm to the steering knuckle. It is a load-bearing component under constant compression in the Sprinter's transverse leaf spring suspension system.
