Engine Valve Cover Gasket Set Guide for the 2010-2014 Mazda 6
Leaking oil or smelling burning oil? Your valve cover gasket may be the culprit.
- First, confirm if you have the 2.5L I4 or 3.7L V6 engine, as the parts are different.
- For the 3.7L V6, the rear gasket requires removing the intake manifold, making the job much more expensive and complex.
- Aftermarket brands like Beck Arnley, Victor Reinz, and Fel-Pro offer excellent quality for this repair.
- Applying a small amount of RTV sealant at the engine's corner joints is critical for a leak-free seal.
Is Your Mazda 6 Leaking Oil? Signs of a Bad Valve Cover Gasket
A failing valve cover gasket is one of the most common oil leaks on any car, including the 2010-2014 Mazda 6. Because the gasket is made of rubber, engine heat eventually causes it to fail. Here are the symptoms to watch for:
- Burning Oil Smell: This is the most obvious sign. When the gasket leaks, oil drips onto the hot exhaust manifold below, creating a distinct and unpleasant burning smell that you'll notice inside and outside the car.
- Visible Oil Leaks: You may see oil and dirt buildup on the side of the engine, just below the plastic engine cover. In more serious leaks, you might find small oil spots on your driveway.
- Oil in Spark Plug Wells: If the spark plug tube seals fail, oil will pool around your spark plugs. This can cause the engine to misfire, run rough, or trigger a Check Engine Light.
- Low Engine Oil: A significant leak will cause your engine oil level to drop over time, forcing you to top it off between oil changes.
Choosing the Right Aftermarket Gasket for Your Mazda 6
For the 2010-2014 Mazda 6, you have two engine options: the 2.5L 4-cylinder (I4) and the 3.7L V6. The gasket kits are different for each, so you must order the correct one for your engine. Aftermarket gaskets offer excellent quality, often meeting or exceeding OEM standards.
Aftermarket Brand Quality
- Beck Arnley: Often considered a premium aftermarket brand. Beck Arnley is known for sourcing parts directly from OEM manufacturers, so you may receive the same part that Mazda would use, but in a different box. This is a top choice for quality and fit.
- Victor Gaskets (Victor Reinz): A well-respected brand that is an OEM supplier for many carmakers. Their gaskets are known for being made of high-quality, pliable rubber that provides a durable seal. They are an excellent alternative to OEM.
- Fel-Pro: One of the most recognized names in aftermarket gaskets. Fel-Pro designs its gaskets for the repair environment, meaning they are made to seal surfaces that may not be perfectly flat after years of use. It is a reliable and widely trusted choice.
Important Note for 3.7L V6 Owners
Replacing the valve cover gaskets on the 3.7L V6 engine is a much larger job than on the 2.5L 4-cylinder. To access the rear valve cover (the one closer to the firewall), the entire upper intake manifold must be removed. This adds significant time and cost to the repair. It is highly recommended to replace the intake manifold gaskets at the same time.
Cost to Replace a 2010-2014 Mazda 6 Valve Cover Gasket Set
| Part/Service | 2.5L I4 Engine Cost | 3.7L V6 Engine Cost | Notes |
|---|---|---|---|
| Aftermarket Gasket Set | $28 - $42 | $35 - $55 | Price is for a full kit including spark plug tube seals. |
| Shop Labor | $100 - $200 | $300 - $500 | V6 labor is much higher due to intake manifold removal. |
| Total Professional Repair | $128 - $242 | $335 - $555 | Estimates can vary by location and shop. |
Pro Tip: Use RTV Sealant
When installing the new gasket, a small amount of oil-resistant RTV silicone sealant is required. Apply a small dab at the sharp corners where the timing chain cover meets the cylinder head to prevent leaks in these critical areas.
Frequently Asked Questions
Can I replace the valve cover gasket myself?
For the 2.5L 4-cylinder engine, this is a very DIY-friendly job for someone with basic tools and mechanical skill. For the 3.7L V6, it is much more advanced due to the need to remove the intake manifold to access the rear cover. This is best left to an experienced DIYer or a professional mechanic.
Is it safe to drive with a leaking valve cover gasket?
Yes, but it should be fixed soon. A small leak is not an immediate emergency, but it will make a mess and cause a bad smell. If the leak becomes severe, you could lose enough oil to damage the engine. If oil leaks onto the spark plugs, it can cause misfires and damage the ignition coils.
What parts are included in a valve cover gasket set?
A complete set should include the main perimeter gasket for the valve cover and the round seals for the spark plug tubes (also called grommets). For the V6, you will need a separate kit for each of the two valve covers.
Are there any recalls for the Mazda 6 valve cover gasket?
No, there are no recalls or common Technical Service Bulletins (TSBs) from Mazda for valve cover gasket issues on the 2010-2014 Mazda 6. This is considered a normal wear-and-tear maintenance item.
Helpful Videos

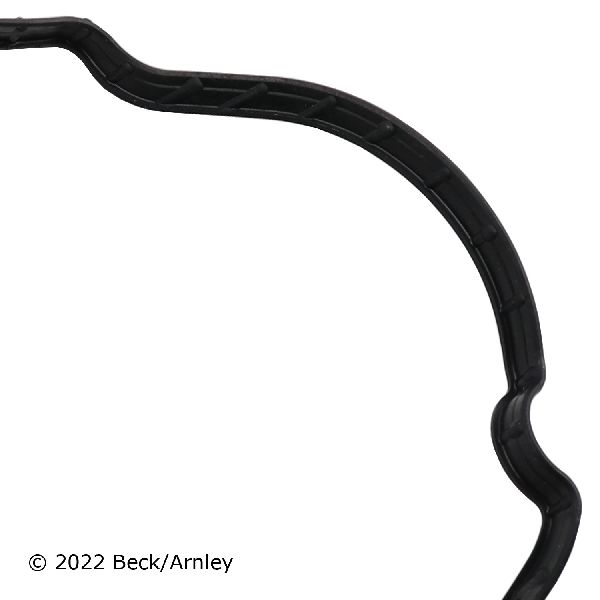

Technical Specifications
OEM Part Numbers: L501-10-230 LF01-10-230 CY0110235A CY01102D5
Material: Molded Rubber. Kit includes main gasket and spark plug tube seals.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
