A Guide to the Secondary Air Injection Sensor for the 2010-2014 Volkswagen Golf
Understand why your check engine light is on and how to fix the emissions system in your VW Golf.
- A bad SAI sensor will cause a check engine light and an automatic emissions test failure.
- Look for an updated sensor design or a quality aftermarket part to avoid issues noted in a VW Technical Service Bulletin (TSB).
- The most common error code is P0411, but this can also be caused by other parts in the system like the pump or hoses.
- Replacing the sensor is a simple DIY job that can be done in under an hour with basic tools.
Is a Bad Secondary Air Injection Sensor a Serious Problem?
A faulty Secondary Air Injection (SAI) sensor on your 2010-2014 VW Golf will trigger the check engine light and cause your car to fail an emissions test. While the car is generally safe to drive, you might notice a brief rough idle or hesitation right after a cold start. This happens because the engine's computer expects to see a change in the exhaust from the SAI system, and when it doesn't, the fuel mixture can be briefly off. Ignoring the problem means you won't be able to pass an inspection and your check engine light will stay on.
Symptoms of a Failing SAI Sensor
- Check Engine Light: This is the most common and immediate sign. The computer will store a fault code related to the SAI system.
- Failed Emissions Test: The check engine light alone is an automatic failure in most states. The system itself is also not working, which increases cold-start emissions.
- Rough Idle on Cold Starts: Your Golf may run rough or hesitate for the first minute after starting, then smooth out.
- Error Codes: The most common code is P0411 (Secondary Air Injection System Incorrect Flow Detected). You might also see codes like P0410 or P2431.
A Note on System-Wide Problems

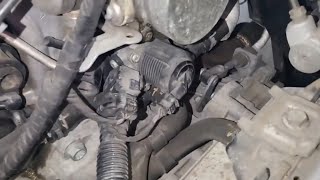

The sensor is just one part of the SAI system. A loud whining or "vacuum cleaner" noise on a cold start points to a failing air pump, 🎬 See this step-by-step guide for replacing a faulty SAI pump. not the sensor itself. However, a bad sensor can't tell if the pump is working, leading to the same error codes. It's important to diagnose the whole system. 🎬 Watch: A deep dive into diagnosing P0410 and P0411 codes. The most common reason for pump failure is moisture getting inside from a bad check valve.
Known Issues for 2010-2014 VW Golf
Volkswagen released a Technical Service Bulletin (TSB) because the original Secondary Air Pressure Sensor could get contaminated by particles. In late 2011, VW began using an updated sensor in production. For earlier models, a service kit (part number 07K 198 125) was released which includes a new sensor and an adapter harness to connect it. When buying a replacement, ensure it is the updated design or a quality equivalent to avoid the same issue.
Choosing the Right Aftermarket Sensor
When shopping for a new aftermarket sensor, you have a few options. Not all aftermarket parts are created equal.
- Premium Aftermarket (e.g., Standard Ignition): Brands like Standard Ignition (also known as Standard Motor Products or SMP) are well-known manufacturers that produce parts designed to meet or exceed original specifications. They often use high-quality materials for connectors and internal components to ensure a reliable fit and long service life. This is a safe bet for a critical emissions component.
- Store/Generic Brands (e.g., Replacement): These parts are attractive because of their low price. They are sourced from various manufacturers and sold under the retailer's brand name. While you can save money, the quality can be inconsistent. For a sensor that requires precise readings, a cheap part that fails early can cost you more in the long run with repeated repairs.
OEM vs. Aftermarket Quality
For this specific sensor, a quality aftermarket part from a brand like Standard Ignition is a reliable choice and may be more affordable than a Genuine VW part. The most important factor is getting the updated sensor design mentioned in the TSB to prevent future contamination issues. A premium aftermarket brand is more likely to incorporate these kinds of factory updates into their design.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Genuine VW) | $80 - $120 |
| New Aftermarket | $75 - $275.10 |
| Shop Labor | $125 - $185 |
Frequently Asked Questions (FAQ)
Where is the SAI sensor located on my Golf?
The sensor is typically found in the air hose that runs from the secondary air pump to the combination valve on the engine. On the 2.5L engine, you can usually access it by removing the engine cover and air filter box. It is a small, black plastic sensor with an electrical connector and a port that plugs into the air hose.
Can I replace the SAI sensor myself?
Yes, this is a DIY-friendly job for most home mechanics. It typically involves removing the airbox for access, unplugging the electrical connector, and carefully pulling the old sensor out of the hose. The new sensor pushes into place. No special tools are usually required beyond basic hand tools to remove the airbox.
Is the SAI sensor the same as the MAP sensor?
No. They can look similar, but they are different parts with different functions and locations. The MAP (Manifold Absolute Pressure) sensor measures pressure inside the intake manifold, while the SAI pressure sensor measures pressure within the secondary air injection system. Do not use them interchangeably.
Will replacing the sensor fix a P0411 code?
It might. A P0411 code means "Incorrect Flow Detected," which can be caused by a bad sensor, a dead air pump, a stuck valve, or a leak in one of the hoses. If the sensor is the culprit, a new one will fix it. However, if the pump is dead or a hose is cracked, the code will return even with a new sensor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 07K906051B 07K906051 07C906051
Connector Shape: Oval, Terminal Count: 3-Pin
