Ford Expedition Ignition Coil Boot Guide for 2010-2015 Models
Fix your Expedition's engine shudder and misfires by understanding and replacing the ignition coil boots.
- Verify your engine: 2010-2014 models have a 5.4L V8, while 2015 models have a 3.5L V6 EcoBoost; they use different parts.
- Replace boots and spark plugs together, as old boots often tear during removal.
- Always apply dielectric grease to new boots to seal out moisture and prevent them from sticking.
- Denso is a trusted aftermarket brand that offers OEM-quality performance for a lower cost than Motorcraft.
Is Your Expedition Shaking or Losing Power?
If your 2010-2015 Ford Expedition has started to shudder, hesitate during acceleration, or run rough, the problem might not be a major engine or transmission issue. Often, these symptoms point to a failing ignition coil boot. Over time, the rubber boots are exposed to intense engine heat, causing them to become brittle and crack. This allows the spark to escape, leading to an engine misfire that you can feel while driving, especially when going up hills or under load.
Engine Warning: 2010-2014 vs. 2015 Models
Before buying any parts, you must know which engine your Expedition has. The 2010-2014 models use the 5.4L V8 engine. The 2015 model year switched to the 3.5L V6 EcoBoost engine. These engines use different ignition coils and boots. Always verify your vehicle's year and engine to ensure you purchase the correct kit.

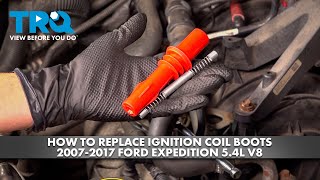

🎬 Watch: Step-by-step guide to replacing ignition coil boots on a V8.Signs of a Bad Ignition Coil Boot
A failing boot will produce the same symptoms as a bad ignition coil or spark plug. The most common sign is an engine misfire, which can feel like:
- Engine Shudder or Stutter: A noticeable shaking, especially when accelerating.
- Hesitation: A brief loss of power when you press the gas pedal.
- Rough Idle: The engine runs unevenly when stopped.
- Flashing Check Engine Light: This indicates a misfire severe enough to potentially damage other components, like the catalytic converter. Common codes include P0300 (random misfire) or P0301-P0308 (for specific cylinders).
Moisture getting past a worn boot is a frequent cause of these issues. It leads to corrosion on the internal spring, disrupting the electrical connection.
Choosing the Right Aftermarket Boot Kit: OEM vs. Denso
When it's time to replace your coil boots, you have a choice between original equipment (OEM) from Motorcraft or a quality aftermarket brand like Denso.
- Motorcraft (OEM): These are the original parts your Expedition was built with. They offer a guaranteed fit and performance, but typically come at a higher price. Many forum members trust only Motorcraft for the full coil assembly.
- Denso (Aftermarket): Denso is a well-respected manufacturer that often supplies original parts to automakers. Their aftermarket coil boot kits are designed to meet or exceed OEM standards in fit, form, and function. For a part like a coil boot, Denso provides excellent quality and durability at a more budget-friendly price, making it a smart choice for most owners.
Avoid cheap, unbranded coil boot kits. Poor quality rubber can fail quickly, leading you to do the job all over again.
Pro Tip: Replace Boots with Spark Plugs
It is highly recommended to replace your ignition coil boots at the same time as your spark plugs. The boots often get stuck to the old plugs and can be torn or destroyed during removal. Applying a small amount of dielectric grease to the inside of the new boot will seal out moisture and make future removal much easier.
How Much Does a Direct Ignition Coil Boot Kit Cost?
The cost can vary depending on the brand and whether you do the work yourself. The job is considered DIY-friendly for those with basic tools.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Boot Kit (Denso) | $86.89 - $154.85 |
| New OEM Boot Kit (Motorcraft) | $120 - $220 |
| Shop Labor | $100 - $250 |
Frequently Asked Questions
Should I replace all the boots at once?
Yes. If one boot has failed due to age and heat, the others are likely not far behind. Replacing them all at once is preventative maintenance and saves you from having to repeat the job multiple times.
What is the difference between the coil boot and the ignition coil?
The ignition coil is the electronic component that transforms the vehicle's 12-volt power into the high voltage needed to create a spark. The boot is the rubber and spring assembly that attaches to the bottom of the coil, insulating that voltage and connecting it to the spark plug. You can often replace just the boot and spring if the coil itself is still functioning correctly.
Why is my old coil boot stuck?

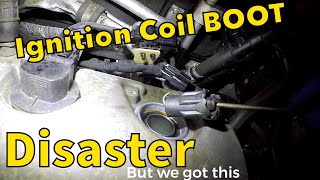

Over thousands of heat cycles, the rubber boot can essentially fuse itself to the ceramic of the spark plug and the inside of the cylinder head well. 🎬 Watch this pro tip for removing a stuck coil boot. This is very common on Ford engines. Gentle twisting can sometimes break it free, but often the boot tears, requiring you to carefully remove the pieces with needle-nose pliers before installing the new plug.
What does dielectric grease do?
Dielectric grease is a non-conductive, silicone-based grease applied to the inside of the coil boot. It serves two purposes: it prevents high-voltage leaks and seals the boot against moisture, which prevents corrosion. It also acts as a lubricant, preventing the new boot from getting stuck.

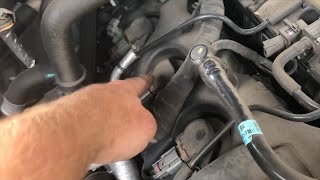

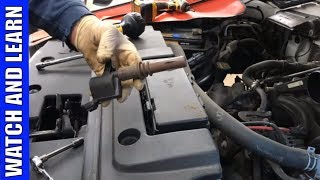

Helpful Videos
Technical Specifications
OEM Part Numbers: DG521 (Related to 5.4L V8) DG549 (Related to 3.5L V6)
The kit contains rubber boots and internal contact springs. The number of boots corresponds to the engine (8 for V8, 6 for V6). The boot material is typically high-temperature silicone to resist engine heat and prevent voltage leaks.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
